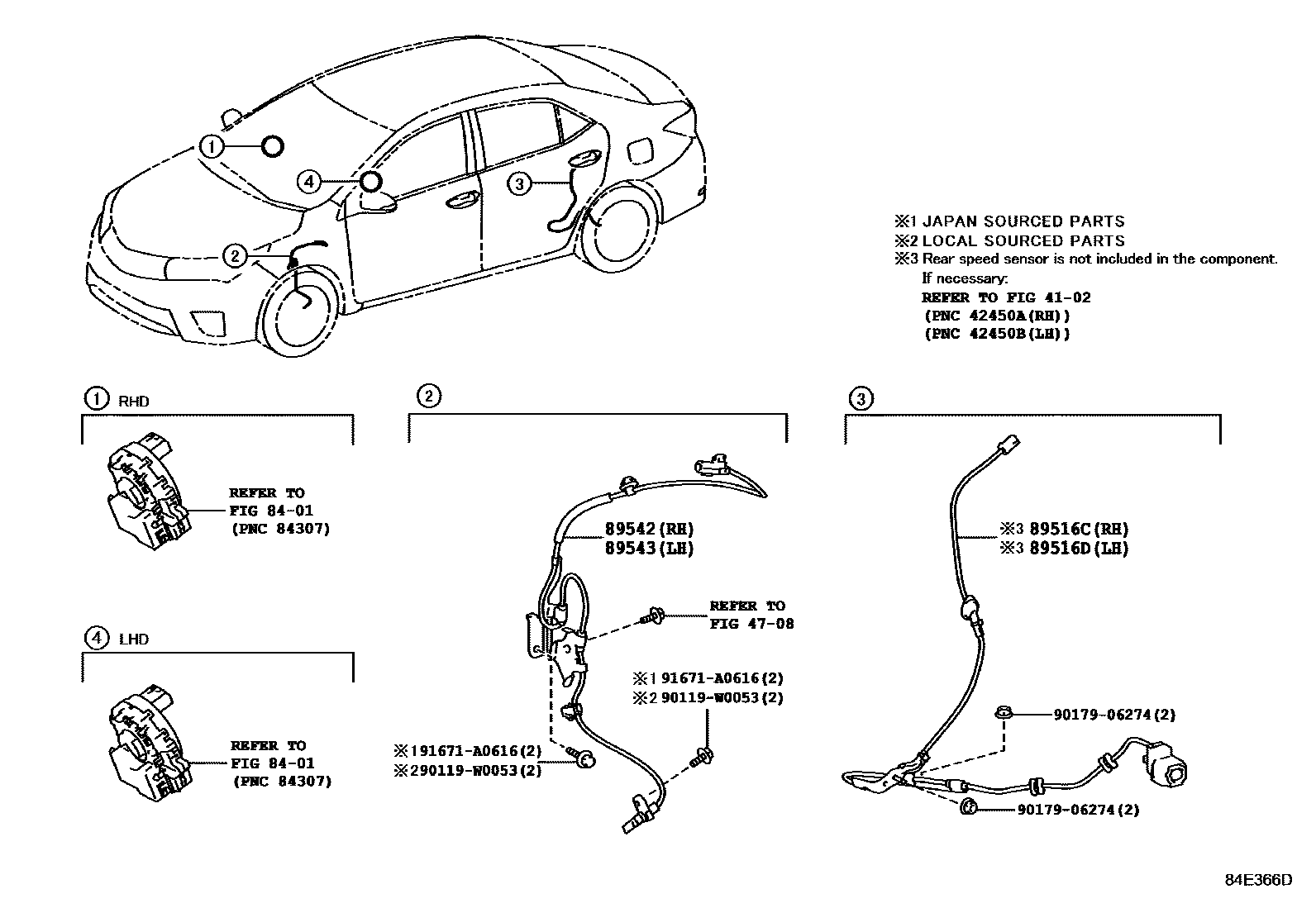

Toyota COROLLA — ABS & VSC

4102

4708

8401

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02170iNDE180,NRE180,ZRE18#..SAP201306-201701

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02180iNDE180..TUP201306-201605

89542SENSOR, SPEED, FRONT RH

main89542-02061iNRE180..TUP201606-201808

main89542-02120iNDE180,NRE180,ZRE18#..SAP201401-201701

main89542-12080iZRE18#..GCC201606-201901

89543SENSOR, SPEED, FRONT LH

main89543-02061iNDE180,ZRE18#..GEN..TUP201606-201901

main89543-02120iNDE180,NRE180,ZRE18#..SAP201701-201912

main89543-12080iZRE18#..GCC201606-201901

90119W0053

main90119-W0053

9017906274

main90179-06274

91671A0616

main91671-A0616

10 parts on this diagram · 1 diagram in section
