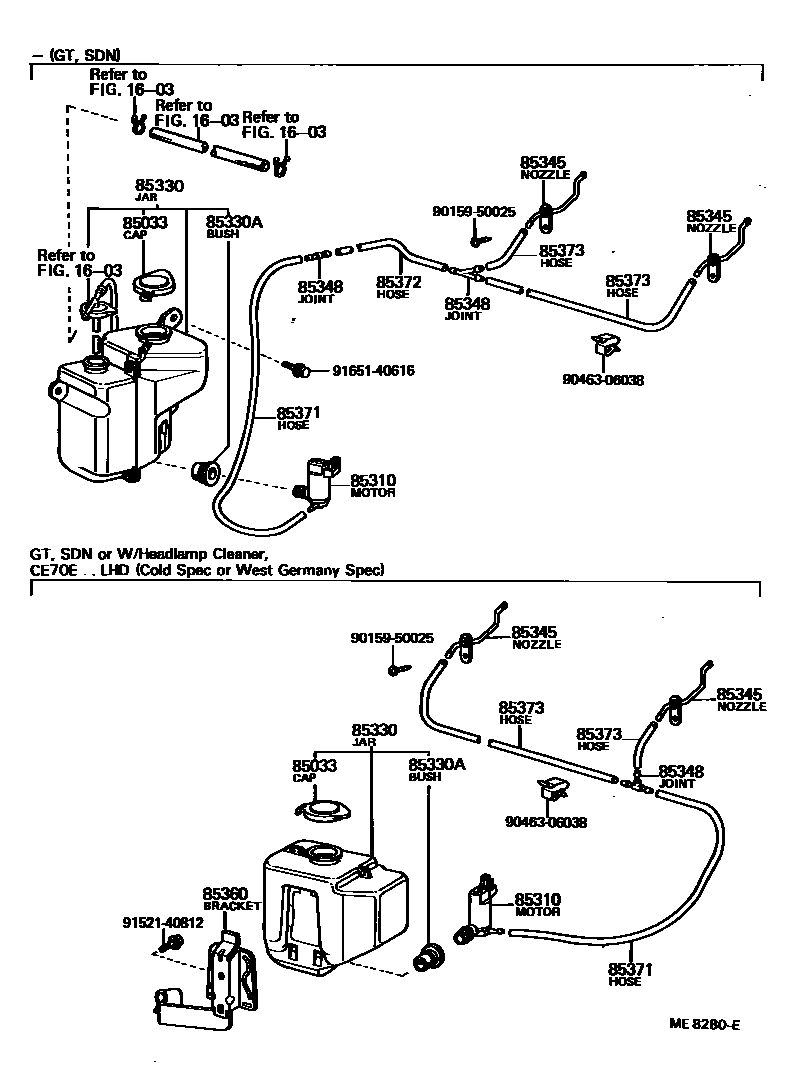

Toyota COROLLA — WINDSHIELD WASHER

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iTE72;KE70..SDN;TE71..GT..EUG;KE70,TE71..ARL,GEN,SA198008-198305

main85332-20060iCE70,KE70..EUR198305-198707

sub85332-12320

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10130iKE70,TE71..(DX,SR,STD,XE)..EUG198008-198108

main85310-20100iTE72198008-198108

main85310-22080iKE70..SED..LHD..(3FC,5F)198209-198305

85330JAR ASSY, WINDSHIELD WASHER

main85330-12090iKE70,TE72..RHD;TE71..DX,SE,SR,STD,XE;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..EUG;KE70..(SED,WG)..LHD..GEN197908-198002

main85330-12091iTE72..GL,SE,XE;KE70,TE71..(DX,GL,SE,SR,STD,XE,XL)..(ARL,GEN,SA,SAA)198002-198305

main85330-12130iTE71..GT;KE70,TE72..SDN197908-198108

main85330-12160iKE70..EUG198002-198008

main85330-12171iCE70,KE70..EUG198008-198305

main85330-12220iCE70,KE70..LHD..EUR198305-198707

COLDSPEC OR W/HEADLAMP CLEANER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCE70,KE70,TE7#197908-198305

85345NOZZLE, WINDSHIELD WASHER

main85341-12110iAE71,CE70,KE70,TE7#..LHD197908-198707

RH

main85341-12130iAE71,CE70,KE70,TE7#..LHD197908-198707

RH

main85341-12150iAE71,CE70,KE70,TE7#..RHD197908-198707

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011iKE70,TE71..LHD..(DX,SR,STD,XE)..EUG198005-198108

W/HEADLAMP CLEANER

sub85375-89141

main85355-14010iKE70..RHD;TE72..GL,SE,XE;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG197908-198707

3WAY TYPE

sub85348-12250

main85355-87201×2iKE70..RHD;TE72..GL,SE,XE;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG197908-198707

2WAY TYPE

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-12120iTE71..GT..GEN;TE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR197908-198707

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iKE70..SED..LHD..(3FC,5F)..4D..EUG198108-198305

L=1450(*H,L=710),W/HEADLAMP CLEANER

main90446-06056iTE71..GT;KE70,TE72..SDN197908-197912

L=1450(*H,L=710)

main90446-06341iKE70,TE72..RHD;TE71..DX,SE,SR,STD,XE;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..EUG;KE70..(SED,WG)..LHD..GEN197908-197912

L=1000(*H,L=280)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06006iKE70..RHD;TE72..GL,SE,XE;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);CE70,TE71..DX,GL,SE,SR,STD,XE;KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2197912-198305

L=2000,*H,L=1200

main90446-06014iKE70,TE72..RHD;TE71..DX,SE,SR,STD,XE;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..EUG;KE70..(SED,WG)..LHD..GEN197908-197912

L=1200

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iKE70..SED..LHD..(3FC,5F)..4D..EUG198108-198305

L=1100(*H,L=50),W/HEADLAMP CLEANER

9015950025

main90159-50025

9046306038

main90463-06038

9152140812

main91521-40812

9165140616

main91651-40616

15 parts on this diagram · 1 diagram in section
