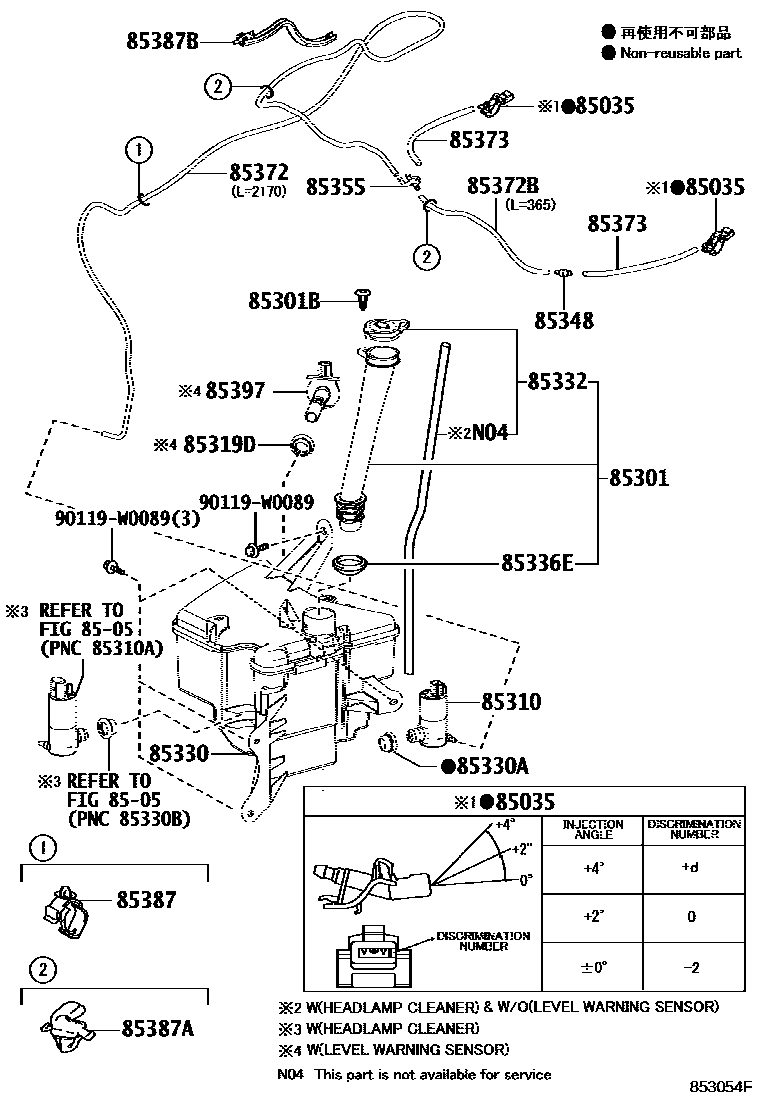

Toyota COROLLA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iNDE180,NRE180,ZRE18#201306-201605

ANGLE 0

main85381-12420×2iNDE180,NRE180,ZRE18#201306-201605

ANGLE +2

sub85381-0K060

main85381-12430×2iNDE180,NRE180,ZRE18#201306-201605

ANGLE +4

8505

85301INLET SUB-ASSY, WASHER

main85301-02020

main90467-07076

main85301-02100

85301BCLIP, WASHER

main90467-07076-C0iNDE180,NRE180,ZRE18#201606-201703

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7iNDE180,ZRE18#201703-201901

BLACK

sub90467-07041

sub90467-A0016

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030iNDE180,ZRE18#201606-201901

85319DPACKING, FRONT WASHER

main85336-02250iNDE180..LHD..6F..(D,N);ZRE181..LHD..(D,N)..EUR201606-201901

COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH

main85336-02550iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201605

COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH

85330JAR ASSY, WINDSHIELD WASHER

main85315-02590iZRE182;ZRE181..(D,N)..RUS201606-201901

COLD AREA SPEC&HEADLAMP CLEANER-WITHOUT

main85315-02550iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201605

WASHER FLUID LEVEL WARNING SENSOR-WITH

main85355-02250supersedes 85355-02230iNRE180..LHD201606-201808

SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iNDE180,ZRE18#201606-201901

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010

main85356-02230

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-38005iNRE180201606-201808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iNRE180201606-201808

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02240iNDE180,ZRE18#201606-201901

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iNRE180201606-201808

*318:REFER ILLUST.

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009iNRE180201606-201808

*318:REFER ILLUST.

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62080×2iNRE180201606-201808

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350iNDE180,NRE180,ZRE18#201306-201605

85387ACLAMP, WASHER, NO.2

main85371-12040×2iNDE180,NRE180,ZRE18#201306-201605

85387BCLAMP, WASHER, NO.3

main85387-02450iNDE180,ZRE18#201606-201901

85397SWITCH ASSY,LEVEL WARNING

main85397-02550iZRE181..LHD..HTWVM201406-201605

COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH

90119W0089

main90119-W0089

20 parts on this diagram · 1 diagram in section
