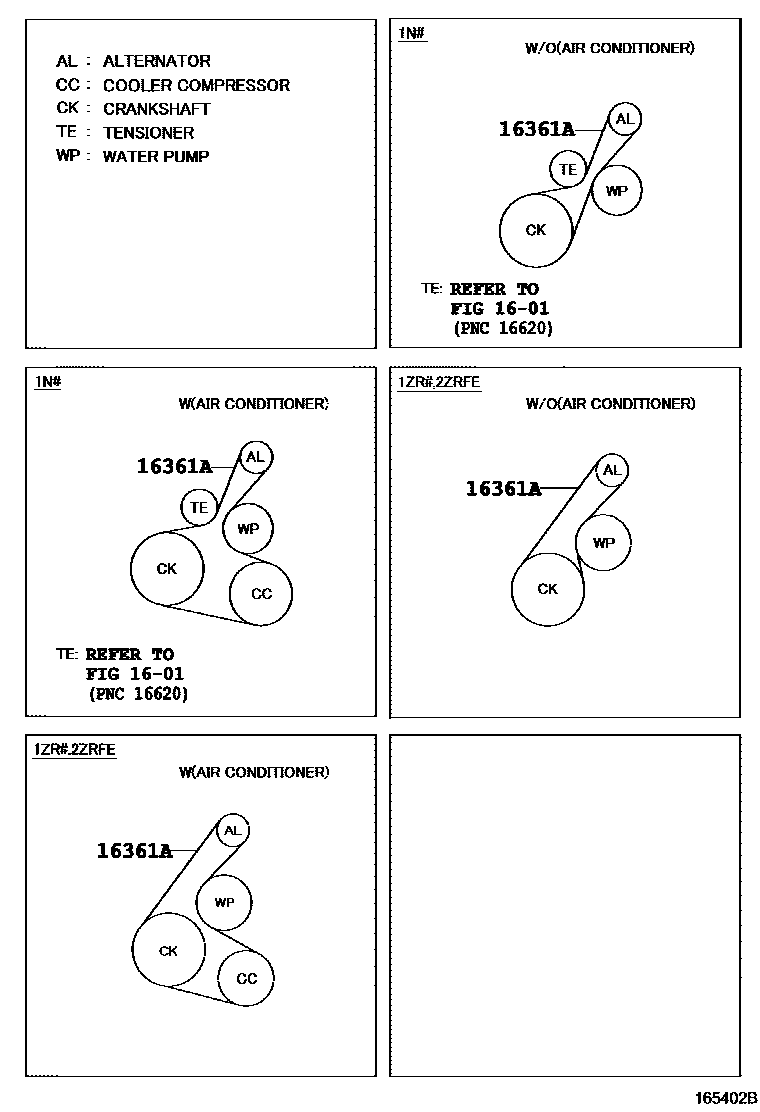

Toyota COROLLA — V-BELT
1601WATER PUMP
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02684supersedes 90916-W2044i1NDTV..NDE180..D; 1NDTV..NDE180..G,N; 1NDTV..NDE180..RHD201606-201901
(J); AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),(J); AIR CONDITIONER-MANUAL AIR CONDITIONER,(J)
AIR CONDITIONER-MANUAL AIR CONDITIONER
main90916-W2032supersedes 90916-W2031i1NRFE..NRE180..D..EUR; 1NRFE..NRE180..D..RUS; 1NRFE..NRE180..LHD..D..EUR; 1NRFE..NRE180..N..EUR; 1NRFE..NRE180..N..RUS; 1NRFE..NRE180..RHD201606-201808
AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER; SUB COLD AREA SPEC; SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL); SUB COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER
(L); AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),(L); AIR CONDITIONER-MANUAL AIR CONDITIONER,(L)
main90916-02688i1NDTV..NDE180..6F..N; 1NDTV..NDE180..6FS;1NDTV..NDE180..6F..G; 1NDTV..NDE180..D201606-201901
(J); AIR CONDITIONER-COOLER LESS,(J); LIGHT GRADE,(J)
AIR CONDITIONER-WITHOUT; SUB COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS); SUB COLD AREA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)&AIR CONDITIONER-WITHOUT
main90916-W2030supersedes 90916-W2031i1NRFE..NRE180..D..EUR; 1NRFE..NRE180..N..EUR; 1NRFE..NRE180..RHD201606-201808
AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL); AIR CONDITIONER-MANUAL AIR CONDITIONER
main90916-W2031supersedes 90916-W2029i1NRFE..NRE180..D..EUR; 1NRFE..NRE180..D..RUS; 1NRFE..NRE180..LHD..D..EUR; 1NRFE..NRE180..N..EUR201606-201808
COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-COOLER LESS; SUB COLD AREA SPEC; SUB COLD AREA SPEC&AIR CONDITIONER-COOLER LESS
(L); AIR CONDITIONER-WITHOUT,(L)
AIR CONDITIONER-WITHOUT; COLD AREA SPEC&AIR CONDITIONER-WITHOUT; SUB COLD AREA SPEC&AIR CONDITIONER-WITHOUT
2 parts on this diagram · 1 diagram in section
V-BELT for Toyota COROLLA
This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
