Toyota COROLLA — SWITCH & RELAY & COMPUTER

1903ALTERNATOR

→ Go to FIG 19-03

28300RELAY ASSY, STARTER

main28300-24031i197908-198305

82600BLOCK ASSY, FUSE

main82600-12100i197908-198410

main82600-12110i197908-198204

main82600-12120i198108-198707

main82600-12140i198108-198406

82600FFUSE, FUSE BLOCK

main90982-09001i197908-198707

5A,5A

main90982-09002i197908-198707

10A,10A

main90982-09003i197908-198707

15A,15A

main90982-09004i197908-198707

20A,YELLOW,20A

main90982-09005i198008-198707

7.5A,7.5A

82611COVER, FUSE BLOCK

main82611-12081i197908-198410

COWL SIDE,RH

main82611-12082i198108-198707

COWL SIDE,RH

main82611-12090i197908-198108

COWL SIDE,LH

main82611-12091i198108-198707

COWL SIDE,LH

main82611-12100i197908-198108

COWL SIDE,LH,*FRG

main82611-12101i198108-198707

COWL SIDE,LH,*FRG

main82661-12010i197908-198006

ENGINE ROOM

main82661-12011i198006-198410

ENGINE ROOM

main82661-12012i198108-198707

ENGINE ROOM

main82661-12020i197908-198006

ENGINE ROOM,*FRG

main82661-12021i198006-198108

ENGINE ROOM,*FRG

main82661-12022i198108-198707

ENGINE ROOM,*FRG

82630HOLDER ASSY, FUSE

main82630-12030i197908-198707

TAIL,*FRG

main82630-12040i197908-198707

HEAD,*FRG

82630FHOLDER, FUSE

main90982-09002i197908-198707

10A,*FRG

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12010i197908-198006

ENGINE ROOM

main82660-12011i198006-198011

ENGINE ROOM

main82660-12020i197908-198006

ENGINE ROOM,WEST GERMANY SPEC

main82660-12021i198006-198305

ENGINE ROOM,WEST GERMANY SPEC

main82660-12022i198210-198707

ENGINE ROOM,WEST GERMANY SPEC

main82660-12041i197908-198410

COWL SIDE,RH

main82660-12042i198108-198707

COWL SIDE,RH

main82660-12042i198108-198406

COWL,RH

main82660-12050i197908-198108

COWL SIDE,LH

main82660-12051i198108-198707

COWL SIDE,LH

main82660-12060i197908-198108

COWL SIDE,LH,WEST GERMANY SPEC

main82660-12061i198108-198707

COWL SIDE,LH,*FRG

main82660-12061i198108-198305

COWL SIDE,LH,WEST GERMANY SPEC

main82660-12081i198108-198707

ENGINE ROOM

main82660-12090i198011-198410

ENGINE ROOM

82690RESISTOR ASSY, DIM DIP LAMP

main82690-12020i198610-198707

ENGLAND SPEC

82697COVER, DIM-DIP LAMP RESISTOR

main82697-20010i198610-198707

ENGLAND SPEC

83391SWITCH, VACUUM

main83391-12060i197908-198305

main83391-12100i198212-198410

83399BRACKET, VACUUM SWITCH

main83399-12060i197908-198305

main83399-20070i198212-198410

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020i197908-198707

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021i197908-198406

W/TACHOMETER

main83520-14021i198108-198305

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020i197908-198502

main83530-12040i198403-198502

main83530-14040i198502-198707

main83530-30042i198409-198502

main83530-30050i198707-198707

main83530-30060i198502-198707

main83530-36011i198210-198409

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051i197908-198707

main84210-10060i197908-198305

main84210-10071i198305-198707

main84210-14010i198210-198508

main84210-60021i198508-198707

84210TSENSOR ASSY, SHIFT POINT

main84220-12010i197908-198305

main84220-12020i197908-198707

84540SWITCH ASSY, NEUTRAL START

main84540-12090i197908-198008

main84540-12091i198111-198204

main84540-12100i197908-198108

main84540-12110i197908-198108

main84540-12130i198008-198111

main84540-12140i198108-198410

main84540-14090i198108-198305

main84540-14100i198305-198707

85915RELAY, MAIN

main90987-02001i197908-198012

main90987-02004i198012-198707

85916RELAY, LIGHT CONTROL

main90987-01001i197908-198012

main90987-01003i198012-198707

HEAD,TAIL & RR FOG LAMP

85925RELAY, RADIATOR FAN

main90987-03001i197908-198707

85926RELAY, HEADLAMP DIMMER

main85926-12020i198103-198707

*FRG

main85926-12020i198610-198707

ENGLAND SPEC

main85926-14010i197908-198103

*FRG

89427SWITCH, TEMPERATURE DETECT

main89427-12030i197908-198707

main89427-12051i198210-198707

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10040i197908-198108

COOLING FAN,MARK=98B,COLD SPEC

main89428-10050i198108-198707

COOLING FAN,MARK=98B

main89428-30030i197908-198010

COOLING FAN,MARK=95B

89620IGNITER ASSY

main89620-12240i198108-198305

main89620-12240i198108-198203

HONG KONG SPEC

89620ADIODE, IGNITION COIL

main90919-14011i198108-198506

8261712010

main82617-12010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271112510WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12510

8271112600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12600

9015950208

main90159-50208

9046106063

main90461-06063

9046108312

main90461-08312

9046308187

main90463-08187

9165140614

main91651-40614

9165640616

main91656-40616

9321016010

main93210-16010

9451100600

main94511-00600

9461110601

main94611-10601

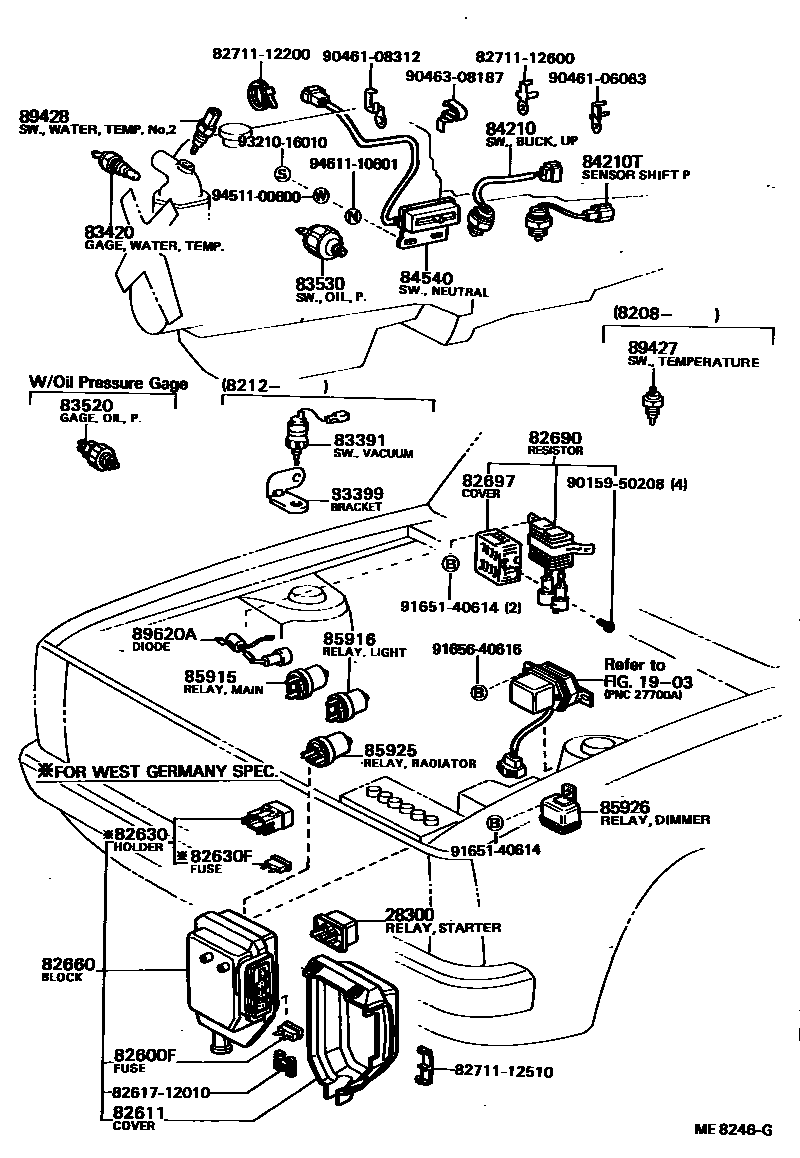

39 parts on this diagram · 9 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA

This section contains 146 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA. Key components include: ALTERNATOR, RELAY ASSY, STARTER, TIMER, PREHEATING, BRACKET, PREHEATING TIMER, NO.1, RELAY ASSY, INTAKE HEATER OR GLOW PLUG.
