Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

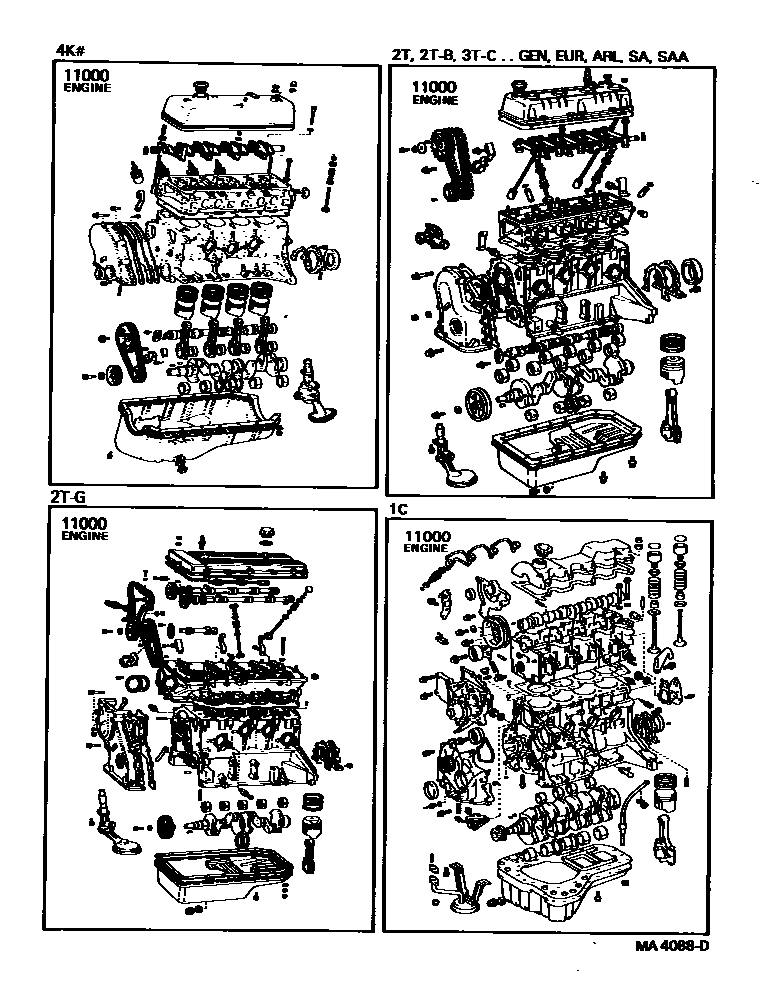

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-13050i197908-198108
main19000-13080i197908-198108
sub19000-13081
sub13471-13020
main19000-13140i198108-198707
sub19000-13141
main19000-13150i198108-198707
sub19000-13151
main19000-13160i198108-198707
sub19000-13161
main19000-13170i198108-198309
main19000-16070i198305-198707
main19000-26134i197908-198108
main19000-26136i198108-198207
main19000-26139i198207-198305
main19000-26144i197908-198207
main19000-26146i198207-198305
main19000-26243i197908-198207
main19000-26244i198207-198305
main19000-28070i197908-198207
main19000-28072i198207-198305
main19000-64020i198210-198303
sub16261-64011
main19000-64022i198303-198307
main19000-64023i198307-198508
main19000-64260i198508-198608
main19000-64261i198608-198707

1 parts on this diagram · 2 diagrams in section
