Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

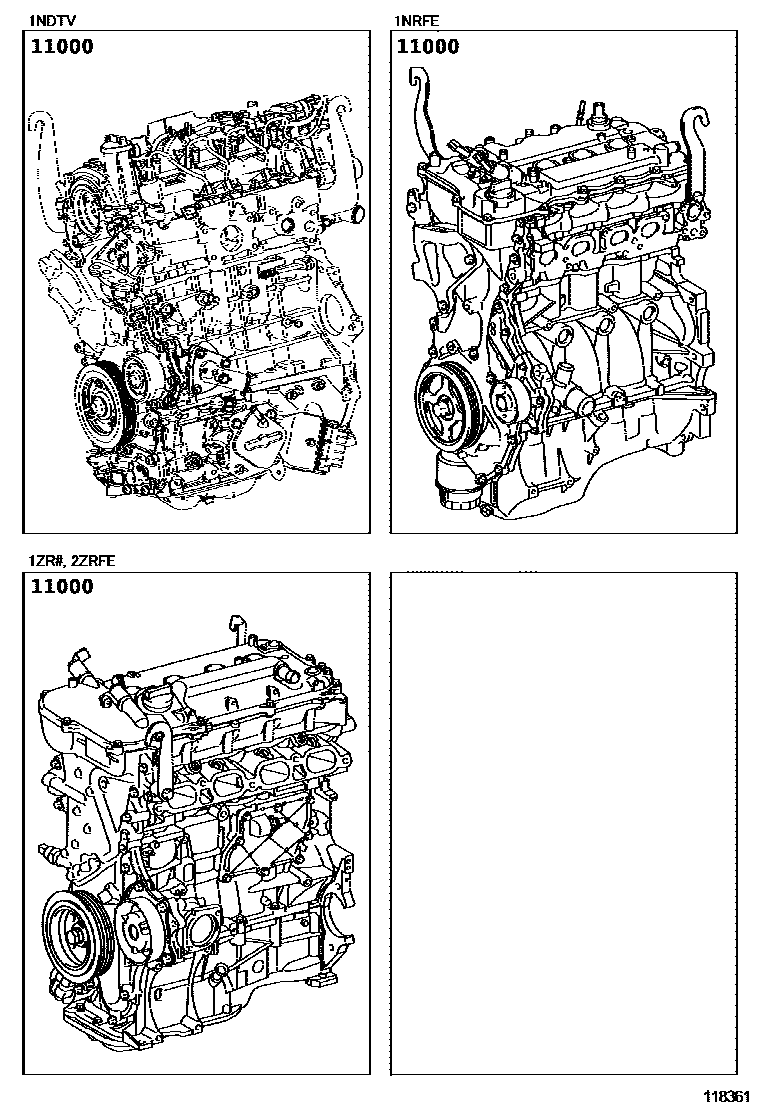

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0N070i201306-201405

main19000-0N071i201405-201505

main19000-0N080i201306-201405

START & STOP SYSTEM PACKAGE

main19000-0N081supersedes 19000-0N071i201405-201406

main19000-0N110i201711-201901

main19000-0N140i201505-201605

TURKEY SPEC

main19000-0T070i201306-201505

main19000-0T072i201606-201901

main19000-0T080i201306-201505

main19000-0T082i201505-201605

main19000-0T100i201306-201505

main19000-0T102i201505-201605

main19000-47181i201306-201309

main19000-47340i201606-201808

main19000-0N120supersedes 19000-0N110i201606-201901

START & STOP SYSTEM PACKAGE

1 parts on this diagram · 1 diagram in section
