Toyota COROLLA — METER

0001 1 0003 1 0005 1 0007 1 0010 1 0011 1 0012 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×6iKE70..DX..SA;KE70..LB..LHD..5F..GEN198108-198204

12V 1.2W W/O SOCKET

main99132-12034×14iAE71,KE70,TE72..2D..ARL198108-198406

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×12iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA198108-198707

12V 3.4W

main83101-14040×6iKE70..DX..SA;KE70..LB..LHD..5F..GEN198108-198305

12V 1.4KW

main83101-20040×14iTE71..SAA198305-198308

12V 3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-12560iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198108

W/TRIP METER

main83247-12570iKE70,TE71..(3FC,4F)..SA198007-198204

W/CLOCK

main83247-12580iKE70,TE71..(CP,LB)..RHD..DX197908-198108

main83247-12590iKE70,TE71..(CP,LB)..RHD..DX197908-198108

W/CLOCK

main83247-12600iTE72..SE197908-198108

main83247-12610iKE70,TE71..(SED,WG)..LHD197908-198008

W/CLOCK

main83247-12611iKE70,TE71..(SED,WG)..LHD198008-198108

W/CLOCK

main83247-12620iKE70,TE71..(DV,SED,WG)..LHD197908-198008

main83247-12621iKE70,TE71..(DV,SED,WG)..LHD198008-198108

main83247-12630iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

W/CLOCK,MILE & KM

main83247-12640iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83247-12650iTE71..GT197908-198108

main83247-12660iTE71..LB..LHD..GEN;TE71..LHD..(SR,XE)197908-198108

W/TACHOMETER

main83247-12670iKE70..LB..RHD197908-198108

W/TACHOMETER

main83247-12680iKE70..LB..RHD197908-198108

W/TACHOMETER

main83247-12690iKE70..DX..SA;KE70,TE71..SED..RHD..GEN197908-198108

W/TACHOMETER

main83247-12790iCE70..RHD198210-198305

main83247-12830iCE70..RHD198501-198707

main83247-12850iTE71..LHD..4D..GEN;KE70..LHD..(STD,XL)..GEN;AE71,KE70..LHD..4D..DX..GEN198209-198707

main83247-1A010iKE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198209

W/CLOCK

main83247-1A090iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198707

W/CLOCK

main83247-1A110iAE71,KE70..2D..ARL198108-198406

W/CLOCK

sub83247-12770

main83247-1A130iKE70,TE71..STD..SA198204-198502

main83247-1A170iKE70,TE71..SED..RHD..GEN198108-198305

W/TACHOMETER

main83247-1A250iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198406

W/TACHOMETER

main83247-1A290iKE70..LB..LHD..5F..GEN198112-198305

W/TACHOMETER

main83247-1A310iTE72..EUR198108-198305

main83247-1A350iKE70,TE71..RHD..2D..DX198108-198305

main83247-1A360iTE71..SAA198305-198308

sub83247-1A400

main83247-1A370iKE70..LHD..EUR198305-198707

main83247-1A380iKE70,TE71..(CP,LB)..DX..EUG198108-198305

main83247-1A410iTE71..LHD..4D..GEN;KE70..LHD..4D..DX..(GEN,SAA);KE70..LHD..(GL,STD,XL)..(GEN,SAA)198209-198707

W/CLOCK & SEAT BELT WARNING

main83247-1A420iTE71..SAA198305-198308

MIDDLE EAST COUNTRY SPEC

main83247-1E590iCE70..LHD198305-198707

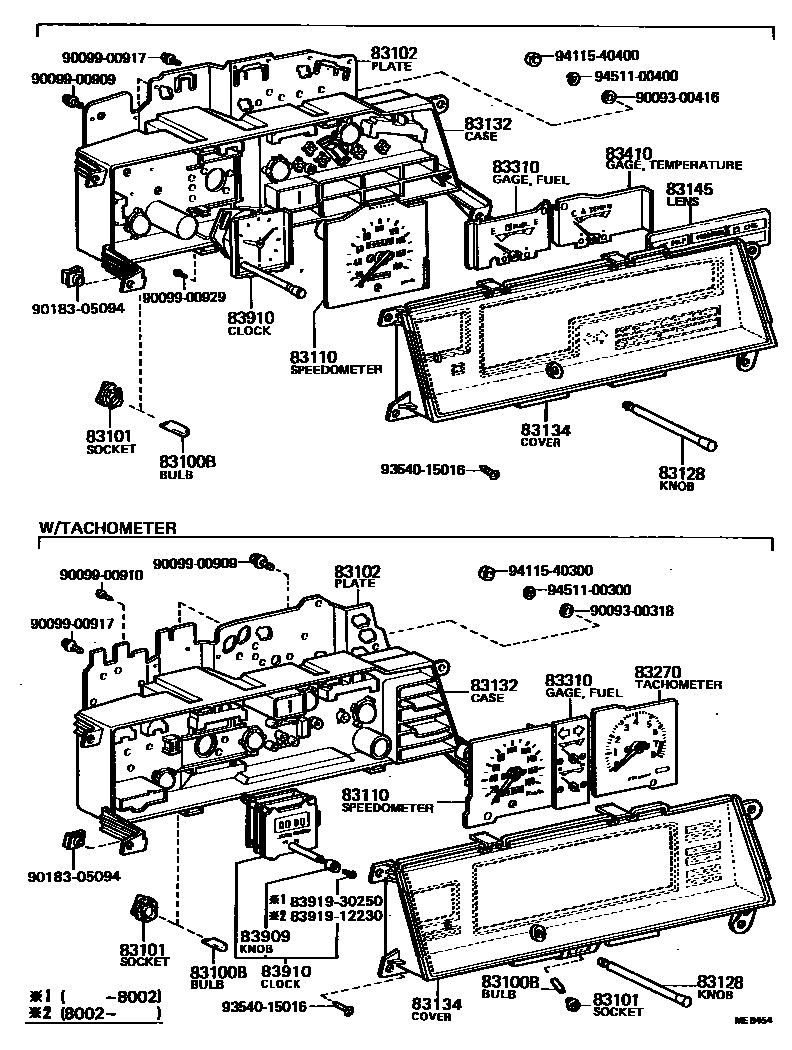

83110SPEEDOMETER ASSY

main83110-12680iTE71..LHD..4D..DX;KE70..WG..LHD..(DX,XL);KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..EUG;KE70..SED..LHD..4F..DX..GEN197908-198108

MILE & KM

main83110-12681iKE70,TE71..(DV,SED,WG)..LHD..(EUR,GEN)198108-198305

MILE & KM

main83110-12720iKE70,TE71..RHD..STD..GEN197908-198108

KM

main83110-12730iKE70,TE71..(SED,WG)..RHD..(DX,XL)197908-198108

KM

main83110-12731iAE71,KE70..2D..ARL198108-198406

KM

main83110-12740iKE70,TE71..RHD..STD..GEN197908-198108

MILE & KM

main83110-12750iKE70,TE71..(SED,WG)..RHD..(DX,XL)..(EUR,GEN)197908-198108

MILE & KM

main83110-12751iCE70..RHD198501-198707

main83110-12752iKE70..(DV,WG)..RHD..(EUR,GEN)198305-198707

MILE & KM

main83110-12760iKE70,TE71..LHD..STD197908-198108

KM

main83110-12770iKE70,TE71..(SED,WG)..LHD197908-198108

KM,W/TRIP COUNTER

main83110-12771iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198305

KM

main83110-12772iAE71,KE70..LHD198305-198707

KM

main83110-12780iKE70,TE71..LHD..STD..GEN;KE70..(SED,WG)..STD..EUG197908-198108

MILE & KM

main83110-12801iTE72..ARL197908-198008

KM,W/TACHOMETER

main83110-12802iTE7#198305-198502

KM

main83110-12811iTE71..RHD..SR;TE71..LB..RHD..GEN197908-198108

MILE & KM,W/TACHOMETER

main83110-12812iTE71..SR..EUG;TE71..RHD..(SR,XE)..GEN198108-198305

MILE & KM W/TRIPMETER

main83110-12821iTE71..LB..LHD..GEN;TE71..LHD..(SR,XE)197908-198108

MILE & KM,W/TACHOMETER

main83110-12831iTE71..LB..LHD..GEN;TE71..LHD..(SR,XE)197908-198108

KM,W/TACHOMETER

main83110-12832iTE72..EUR;TE71..LHD..MTM..(DX,SR)..GEN198108-198305

KM,W/TACHOMETER

main83110-12851iKE70,TE71..(CP,LB)..RHD..DX197908-198108

KM

main83110-12852iKE70,TE71..RHD..2D..DX198108-198305

KM

main83110-12861iKE70,TE71..(CP,LB)..RHD..DX197908-198108

MILE & KM

main83110-12862iKE70,TE71..RHD..2D..DX198108-198305

MILE & KM

main83110-12871iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

KM

main83110-12881iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

MILE & KM

main83110-1A031iTE71..GT197908-198001

KM

main83110-1A032iTE71..GT198001-198108

KM

main83110-1A040iKE70..DX..SA;KE70,TE71..SED..RHD..GEN197908-198108

KM,W/TACHOMETER

main83110-1A041iKE70,TE71..SED..RHD..GEN198108-198305

KM,W/TACHOMETER

main83110-1A051iTE71..GT197908-198108

MILE & KM

main83110-1A060iTE72..SE..SA198108-198204

KM,W/TACHOMETER

main83110-1A061iTE7#..RHD..(SE,SR,XE)..(ARL,GEN)198108-198305

KM

main83110-1A090iKE70,TE71..(CP,LB)..LHD..DX198108-198305

KM

main83110-1A100iTE71..LHD..XE198108-198305

KM

main83110-1A110iTE71..GT198108-198305

KM

main83110-1A150iKE70,TE71..(CP,LB)..LHD..DX..GEN198108-198305

MILE & KM

main83110-1A160iTE71..RHD..XE..EUG198108-198305

MILE & KM W/TACHOMETER

main83110-1A610iCE70..LHD198305-198707

KM

83128KNOB, TRIP COUNTER

main83128-10260iKE70,TE7#..CP,LB197908-198406

main83128-12650iAE71..STD198308-198406

main83128-12670iKE70,TE7#..SED..SA198108-198204

83132CASE, COMBINATION METER

main83132-12030iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198108

main83132-12040iKE70..LB..RHD197908-198108

W/TACHOMETER

main83132-12051iTE7#..RHD..(SE,SR,XE)197908-198108

W/TACHOMETER

main83132-12060iKE70,TE71..(CP,LB)..RHD..DX197908-198108

main83132-12070iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83132-12080iKE70,TE71..(DV,SED,WG)..LHD197908-198008

sub83132-12H90

main83132-12090iTE72..SDN197908-198108

W/TACHOMETER

main83132-12100iKE70..DX..SA198108-198204

W/TACHOMETER

main83132-12140iKE70,TE71..(DV,SED,WG)..LHD198008-198108

main83132-12190iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198707

main83132-12210iKE70..(DV,SED,WG)..LHD..(DX,STD)..EUR198108-198707

main83132-12230iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198707

W/CLOCK

main83132-12250iKE70,TE71..SED..RHD..GEN198108-198305

W/TACHOMETER

main83132-12310iTE71..RHD..2D..(EUR,GEN)198108-198406

W/TACHOMETER

main83132-12330iTE72..ARL198108-198305

main83132-12370iTE71..(GT,XE)..EUG198108-198305

main83132-12390iTE71..CP..GEN198108-198305

main83132-12410iKE70..LB..LHD..5F..GEN198112-198305

W/TACHOMETER

main83132-12450iKE70,TE71..RHD..2D..DX198108-198305

main83132-1A020iKE70,TE71..(CP,LB)..LHD..DX..(EUR,GEN)198108-198305

main83132-1A040iTE71..SAA198305-198308

W/CLOCK

83134COVER, COMBINATION METER, NO.1

main83133-12010iKE70..DX..SA198108-198204

W/TACHOMETER

main83133-12020iTE71..4D..SA;KE70..STD..SA198007-198204

W/CLOCK

main83133-12031iTE7#..RHD..(SE,SR,XE)197908-198108

W/TACHOMETER

main83133-12041iKE70,TE71..(CP,LB)..RHD..DX197908-198108

W/CLOCK

main83133-12050iKE70..2D..SA198007-198204

main83133-12060iKE70,TE71..RHD..STD..GEN197908-198108

main83133-12081iKE70,TE71..(CP,LB)..RHD..DX197908-198108

main83133-12140iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

W/CLOCK

main83133-12150iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83133-12160iKE70,TE71..(SED,WG)..LHD197908-198108

W/CLOCK

main83133-12170iKE70,TE71..(SED,WG)..LHD..(DX,XL)197908-198108

main83133-12180iKE70,TE71..LHD..STD197908-198108

main83133-12190iTE72..SDN197908-198108

W/TACHOMETER

main83133-12210iKE70,TE71..(DV,SED,WG)..LHD..GEN198108-198305

W/CLOCK MILE & KM

main83133-12350iKE70,TE71..STD..SA198204-198502

W/CLOCK

main83133-12370iKE70..RHD..(EUR,GEN)198501-198707

main83133-12390iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD..(DX,STD,XL)198108-198707

main83133-12410iAE71,KE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198707

W/CLOCK

main83133-12450iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198707

W/CLOCK

main83133-12470iKE70..GL..GEN198305-198406

W/TACHOMETER

main83133-12490iTE72..(SE,XE)..(EUR,SA)198204-198401

main83133-12510iTE71..GT,SR,XE198108-198305

W/TACHOMETER

main83133-12530iKE70,TE71..RHD..2D..DX198108-198305

W/CLOCK

main83133-12550iKE70,TE71..RHD..2D..DX198108-198305

main83134-1A100iKE70,TE71..(CP,LB)..DX..EUG198108-198305

main83134-1A120iKE70,TE71..(CP,LB)..DX..EUG198108-198305

W/CLOCK

main83134-1A140iKE70,TE71..(CP,LB)..LHD..DX..GEN198108-198305

main83134-1A160iKE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA)198108-198305

W/CLOCK

83145LENS, METER, NO.1

main83145-12031iKE70,TE71..LHD..STD197908-198108

main83145-12041iKE70,TE71..LHD..STD197908-198108

W/CLOCK

main83145-12090iKE70,TE71..RHD..STD..GEN197908-198108

main83145-12100iKE70,TE71..(SED,WG)..RHD..(EUR,GEN)197908-198108

W/CLOCK

main83145-12250iKE70,TE71..RHD..STD..(EUR,GEN)198108-198707

main83145-12270iKE70,TE71..(SED,WG)..RHD..(DX,GL,XL)..(EUR,GEN)198108-198707

W/CLOCK

main83145-12290iAE71,KE70..2D..ARL198108-198406

main83145-12310iKE70,TE71..LHD..STD..GEN198108-198707

main83145-12330iKE70,TE71..LHD..STD..GEN198108-198707

W/CLOCK

main83145-12350iKE70..LHD..STD..EUG198108-198707

main83145-12370iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198305

W/CLOCK

main83145-12470iKE70..GL..GEN198305-198406

W/TACHOMETER

main83145-12490iCE70..RHD198501-198707

main83145-12510iCE70..LHD198210-198707

main83145-12530iKE70,TE71..LHD..STD..GEN198209-198707

W/SEAT BELT WARNING

main83145-12550iKE70,TE71..LHD..STD..GEN198209-198707

W/SEAT BELT WARNING

main83145-1A020iKE70,TE71..(CP,LB)..LHD..DX..(GEN,SAA)198209-198305

MIDDLE EAST COUNTRY SPEC

83270TACHOMETER ASSY, ENGINE

main83242-12251iTE72..SE..SA198108-198204

main83242-12270iTE71..GL198007-198204

main83242-12281iTE71..RHD..SR;TE71..LB..RHD..(GEN,SA)197908-198108

main83242-12290iTE71..RHD..SR;TE71..LB..RHD..GEN197908-198108

MILE & KM

main83242-12310iTE71..LB..LHD..GEN;TE71..LHD..(SR,XE)197908-198108

MILE & KM

main83242-12320iTE71..GT197908-198108

MILE & KM

main83242-12330iTE71..LB..LHD..GEN;TE71..LHD..(SR,XE)197908-198108

main83242-12340iTE71..GT197908-198108

main83242-12350iTE72..GL198007-198204

main83242-12360iKE70..LB..RHD197908-198108

MILE & KM

main83242-12370iTE72..SDN197908-198108

main83242-12390iTE72..(SE,XE)..(EUR,SA)198204-198401

main83242-12430iTE71..RHD..(SR,XE)..GEN198108-198305

main83242-12450iTE71..SR..EUG;TE71..RHD..(SR,XE)..GEN198108-198305

MILE & KM

main83242-12470iTE71..RHD..XE..EUG198108-198305

MILE & KM

main83242-12510iTE71..LHD..(SR,XE)198108-198305

main83242-12530iTE71..GT198108-198305

main83242-12550iTE72..EUR;TE71..LHD..MTM..(DX,SR)..GEN198108-198305

main83242-12570iAE71,KE70,TE7#..(DX,GL)..SA198204-198707

83310GAGE ASSY, FUEL RECEIVER

main83243-12120iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198108

sub83243-12230

main83243-12130iTE7#..RHD..(SE,SR,XE)197908-198108

main83243-12150iKE70,TE71..(CP,LB)..RHD..DX197908-198108

sub83243-12220

main83243-12160iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83243-12170iKE70,TE71..(DV,SED,WG)..LHD197908-198108

main83243-12180iTE72..SDN197908-198108

W/TACHOMETER

main83243-12190iTE7#..GL198007-198204

main83243-12250iAE71,KE70..2D..ARL198108-198406

main83243-12290iKE70,TE71..STD..SA198204-198502

main83243-12310iAE71,KE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198707

main83243-12350iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198707

main83243-12370iKE70,TE71..SED..RHD..GEN198108-198305

W/TACHOMETER

main83243-12410iTE72..ARL198108-198305

main83243-12430iTE72..(SE,XE)..(EUR,SA)198204-198401

main83243-12470iTE71..LHD..(GT,SR,XE)198108-198305

W/TACHOMETER

sub83243-12450

main83243-1A040iKE70,TE71..(CP,LB)..DX..EUG198108-198305

main83243-1A060iKE70,TE71..(CP,LB)..LHD..DX..GEN198108-198305

main83243-1A080iTE71..SAA198108-198308

main83244-12630iKE70,TE71..RHD..2D..DX198108-198305

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12201iTE7#..RHD..(SE,SR,XE)197908-198108

main83244-12211iKE70,TE71..(CP,LB)..RHD..DX197908-198108

sub83244-12300

main83244-12221iKE70,TE71..(DV,SED,WG)..LHD197908-198108

main83244-12231iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83244-12241iTE72..SDN197908-198108

W/TACHOMETER

main83244-12250iKE70,TE71..(DX,STD)..SA198007-198204

sub83244-12310

main83244-12260iKE70,TE71..(CP,LB)..LHD..DX..GEN197908-198108

MIDDLE EAST COUNTRY SPEC

main83244-12270iKE70,TE71..(SED,WG)..LHD..GEN197908-198108

MIDDLE EAST COUNTRY SPEC

main83244-12280iTE71..LHD..(GT,SE,SR)..GEN197908-198108

MIDDLE EAST COUNTRY SPEC

main83244-12330iAE71,KE70..2D..ARL198108-198406

main83244-12350iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198707

main83244-12370iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD..(EUR,GEN)198108-198707

main83244-12410iKE70..SAA198108-198308

main83244-12430iKE70,TE71..(DV,SED,WG)..LHD..EUR198108-198707

main83244-12450iKE70..GL..GEN198305-198406

W/TACHOMETER

main83244-12490iTE72..ARL198108-198305

main83244-12510iTE71..RHD..2D..(EUR,GEN)198108-198406

W/TACHOMETER

main83244-12550iTE72..EUR198108-198305

main83244-12570iKE70..LB..LHD..5F..GEN198112-198305

sub83244-12530

main83244-12590iTE71..CP..LHD..GEN198108-198209

MIDDLE EAST COUNTRY SPEC

83909KNOB, CLOCK

main83909-12230iTE7#..GT,SE,SR,XE198002-198108

DIGITAL TYPE,BLACK

main83909-12320iAE71,KE70..2D..ARL198108-198406

main83909-14012iKE70,TE71..(CP,LB)..LHD..DX198108-198305

main83909-22180iTE72..(SE,XE)..(EUR,SA)198204-198401

main83909-30250iTE7#..GT,SE,SR,XE197908-198002

DIGITAL TYPE,CHROME PLATED

83910CLOCK ASSY

main83910-12210iTE7#..GL198007-198204

DIGITAL TYPE

main83910-12211iAE71,KE70,TE7#..(DX,GL)..SA198204-198707

DIGITAL TYPE

main83910-12220iKE70,TE71..(SED,WG)..(EUR,GEN)197908-198108

main83910-12221iKE70,TE71..STD..SA198204-198502

main83910-12230iTE7#..GT,SE,SR,XE197908-198108

DIGITAL TYPE

main83910-12240iKE70,TE71..(CP,LB)..RHD..DX197908-198108

main83910-12250iKE70,TE7#..(CP,LB)..LHD..DX197908-198108

main83910-12260iAE71,KE70..4D..(DX,STD)..ARL198108-198410

main83910-12270iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

main83910-12280iKE70,TE71..(CP,LB)..LHD..DX198108-198305

main83910-12290iTE71..CP..GEN;TE71..(GT,SR,XE)..EUG;KE70..LB..LHD..5F..GEN198108-198305

DIGITAL TYPE

main83910-12300iKE70,TE71..RHD..2D..DX198108-198305

8391912230SCREW, CLOCK

main83919-12230

8391930250SCREW, CLOCK

main83919-30250

9009300318

main90093-00318

9009300416

main90093-00416

9009900909

main90099-00909

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9018305094

main90183-05094

9354015016

main93540-15016

9411540300

main94115-40300

9411540400

main94115-40400

9451100300

main94511-00300

9451100400

main94511-00400

27 parts on this diagram · 7 diagrams in section
