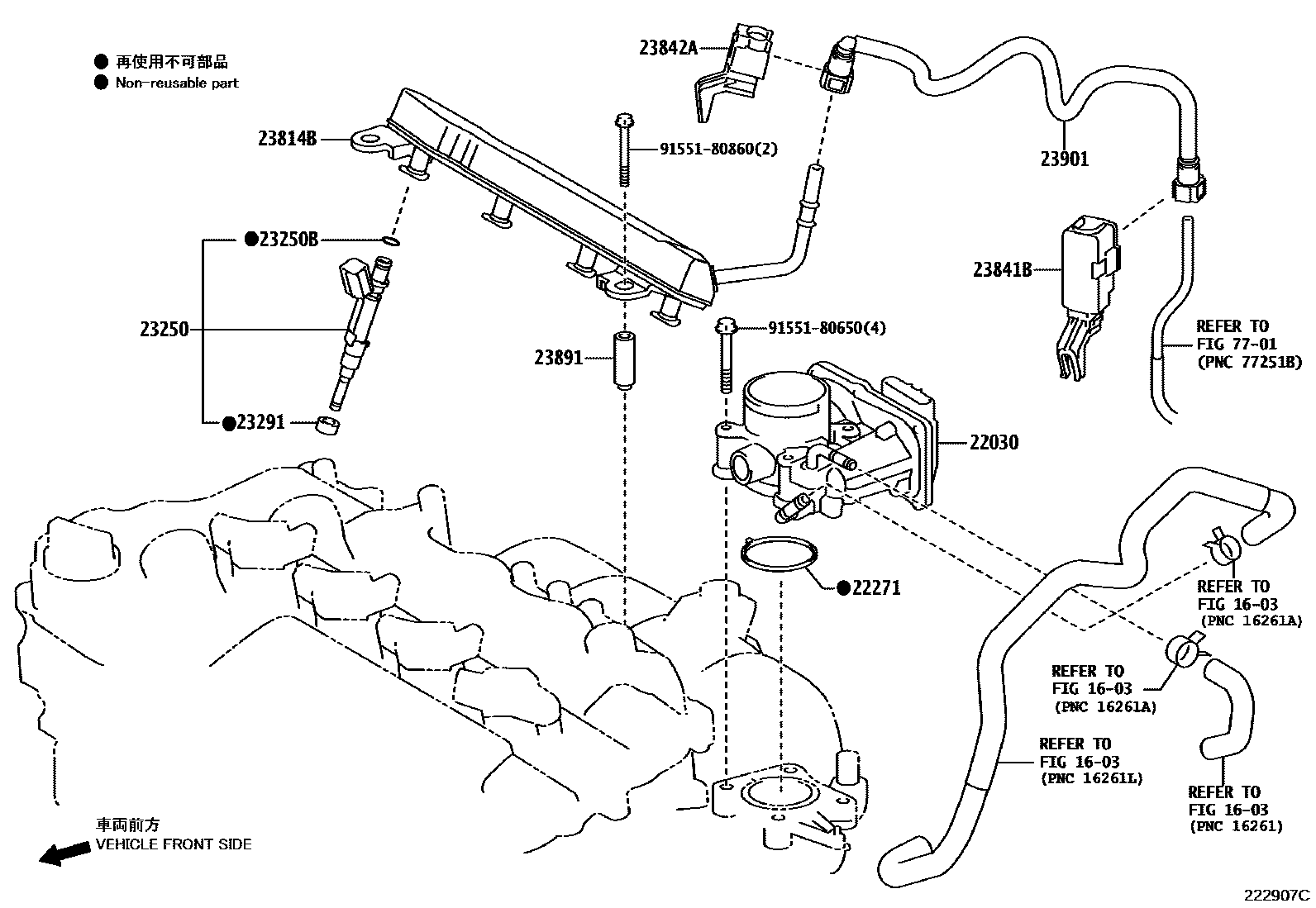

Toyota COROLLA — FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47010i1NRFE..NRE180201306-201808

22271GASKET, THROTTLE BODY

main22271-0T020i1ZRFAE..ZRE181201306-201409

(L)

main22271-0T021i1ZRFAE..ZRE181201410-201901

(L)

main22271-47010i1NRFE..NRE180201306-201808

main22271-75031i1ZRFAE..ZRE181201306-201901

(J)

23250INJECTOR ASSY, FUEL

main23209-09130i1ZR#,2ZRFE..ZRE18#201306-201901

(L)

main23209-39145i1ZR#,2ZRFE..ZRE18#201306-201901

(J)

main23209-49205i1NRFE..NRE180201306-201808

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1ZR#,2ZRFE..ZRE18#201306-201901

main90301-07042i1NRFE..NRE180201306-201808

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1NRFE..NRE180201306-201901

23814BPIPE, FUEL DELIVERY

main23814-47020i1NRFE..NRE180201306-201407

main23814-47050i1NRFE..NRE180201407-201805

main23814-47051i1NRFE..NRE180201806-201808

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37090i1NRFE..NRE180201306-201901

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0T020i1NRFE..NRE180201306-201808

main23842-28010i1ZR#,2ZRFE..ZRE18#201306-201901

23891SPACER, FUEL DELIVERY

main23891-47030i1NRFE..NRE180201306-201808

23901TUBE SUB-ASSY, FUEL

main23901-0D090i1ZR#,2ZRFE..ZRE18#201306-201901

main23901-0Y020i1NRFE..NRE180201306-201808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180650

main91551-80650

9155180860

main91551-80860

14 parts on this diagram · 2 diagrams in section
