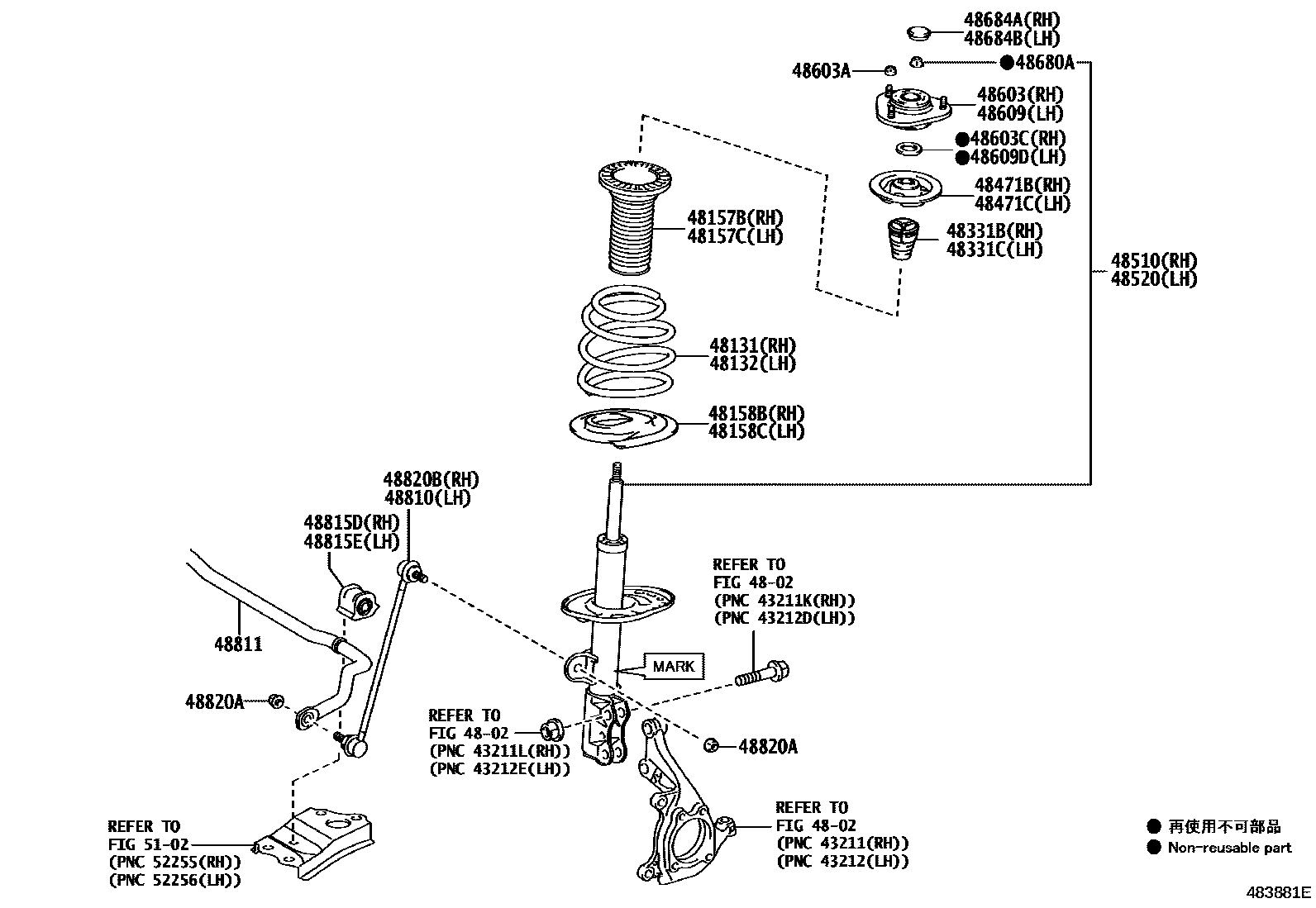

Toyota COROLLA — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-02L20iNRE180201306-201406

LIGHT GRADE

main48131-02Q00iNDE180,ZRE181..EUR201606-201706

main48131-02Q01iNDE180,ZRE181..EUR201707-201805

main48131-02Q02iNDE180,ZRE181..EUR201806-201901

main48131-02Q20iNRE180..EUR201606-201706

main48131-02Q21iNRE180..EUR201707-201805

main48131-02Q22iNRE180..EUR201806-201808

main48131-02V50supersedes 48131-02V60iNRE180201407-201605

LIGHT GRADE

main48131-02W20iZRE181..RUS201606-201706

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48131-02W21iZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR201707-201805

ROUGH ROAD AREA SPEC

main48131-02W22iZRE181..RUS201806-201901

ROUGH ROAD AREA SPEC

main48131-02W30iNRE180..RUS201606-201706

main48131-02W31iNRE180..RUS201707-201805

main48131-02W32iNRE180..RUS201806-201808

main48131-02W40iZRE182201606-201706

main48131-02W41iZRE182201707-201805

main48131-02W42iZRE182201806-201901

main48131-02L60iNRE180..LHD201306-201407

ROUGH ROAD AREA SPEC

main48131-02M00iZRE181..HTWC;NDE180..LHD..6F201306-201406

ROUGH ROAD AREA SPEC

main48131-02M20supersedes 48131-02V70iZRE182201306-201406

ROUGH ROAD AREA SPEC

main48131-02V40supersedes 48131-02V70iZRE182201407-201605

ROUGH ROAD AREA SPEC

main48131-02V80iNRE180..LHD201408-201605

ROUGH ROAD AREA SPEC

main48131-02V90iZRE181..HTWC;NDE180..LHD..6F201407-201605

ROUGH ROAD AREA SPEC

48132SPRING, FRONT COIL, LH

main48131-02L20iNRE180201306-201406

LIGHT GRADE

main48131-02Q00iNDE180,ZRE181..EUR201606-201706

main48131-02Q01iNDE180,ZRE181..EUR201707-201805

main48131-02Q02iNDE180,ZRE181..EUR201806-201901

main48131-02Q20iNRE180..EUR201606-201706

main48131-02Q21iNRE180..EUR201707-201805

main48131-02Q22iNRE180..EUR201806-201808

main48131-02V50supersedes 48131-02V60iNRE180201407-201605

LIGHT GRADE

main48131-02W20iZRE181..RUS201606-201706

LIGHT GRADE&ROUGH ROAD AREA SPEC

main48131-02W21iZRE181..RUS201707-201805

ROUGH ROAD AREA SPEC

main48131-02W22iZRE181..RUS201806-201901

ROUGH ROAD AREA SPEC

main48131-02W30iNRE180..RUS201606-201706

main48131-02W31iNRE180..RUS201707-201805

main48131-02W32iNRE180..RUS201806-201808

main48131-02W40iZRE182201606-201706

main48131-02W41iZRE182201707-201805

main48131-02W42iZRE182201806-201901

main48131-02L60iNRE180..LHD201306-201407

ROUGH ROAD AREA SPEC

main48131-02M00iZRE181..HTWC;NDE180..LHD..6F201306-201406

ROUGH ROAD AREA SPEC

main48131-02M20supersedes 48131-02V70iZRE182201306-201406

ROUGH ROAD AREA SPEC

main48131-02V40supersedes 48131-02V70iZRE182201407-201605

ROUGH ROAD AREA SPEC

main48131-02V80iNRE180..LHD201408-201605

ROUGH ROAD AREA SPEC

main48131-02V90iZRE181..HTWC;NDE180..LHD..6F201407-201605

ROUGH ROAD AREA SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02170iNDE180,NRE180,ZRE18#201306-201505

main48157-02230iNDE180,NRE180,ZRE18#201606-201607

main48157-02231iNDE180,ZRE18#201607-201901

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02170iNDE180,NRE180,ZRE18#201306-201505

main48157-02230iNDE180,NRE180,ZRE18#201505-201605

main48157-02231iNDE180,ZRE18#201607-201901

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02190iNDE180,NRE180,ZRE18#201306-201504

main48158-02230iNDE180,NRE180,ZRE18#201505-201605

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02190iNDE180,NRE180,ZRE18#201306-201504

main48158-02230iNDE180,NRE180,ZRE18#201505-201605

48331BBUMPER, FRONT SPRING, RH

main48331-02100iNDE180,NRE180,ZRE18#201306-201605

48331CBUMPER, FRONT SPRING, LH

main48331-02100iNDE180,NRE180,ZRE18#201306-201605

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02090iNDE180,NRE180,ZRE18#201306-201605

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02090iNDE180,ZRE18#201606-201901

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z094iNDE180,ZRE18#201306-201505

MARK 48510-02B20

main48510-8Z095iNRE180201306-201505

MARK 48510-02B30

main48510-8Z236iNDE180,ZRE18#201505-201605

MARK 48510-02E70

main48510-8Z237iNRE180201505-201605

MARK 48510-02E80

main48510-8Z290iNDE180,ZRE181..EUR201606-201901

MARK 48510-02B70

main48510-8Z291iNRE180..EUR201606-201808

MARK 48510-02B80

main48510-8Z292iZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR201606-201901

MARK 48510-02F60

main48510-8Z065iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201412

MARK 48510-02A30,ROUGH ROAD AREA SPEC

main48510-8Z188iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201412-201505

MARK 48510-02E50,ROUGH ROAD AREA SPEC

main48510-8Z238iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201505-201605

MARK 48510-02E20,ROUGH ROAD AREA SPEC

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z005iNDE180,ZRE18#201306-201505

MARK 48520-02B20

main48520-8Z006iNRE180201306-201505

MARK 48520-02B30

main48520-8Z101iNDE180,ZRE18#201505-201605

MARK 48520-02E70

main48520-8Z102iNRE180201505-201605

MARK 48520-02E80

main48520-8Z148iNDE180,ZRE181..EUR201606-201901

MARK 48520-02B70

main48520-8Z149iNRE180..EUR201606-201808

MARK 48520-02B80

main48520-8Z150iZRE181..6F..D..EUR;ZRE181..CVT..(G,N)..EUR201606-201901

MARK 48520-02F60

main48520-09Y20iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201306-201412

MARK 48520-02A30,ROUGH ROAD AREA SPEC

main48520-09Y21iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201412-201505

MARK 48520-02E50,ROUGH ROAD AREA SPEC

main48520-8Z103iNDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC201505-201605

MARK 48520-02E20,ROUGH ROAD AREA SPEC

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02240iNDE180,NRE180,ZRE18#201306-201605

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iNDE180,NRE180,ZRE18#201306-201605

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNDE180,NRE180,ZRE18#201306-201605

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02240iNDE180,NRE180,ZRE18#201306-201605

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNDE180,NRE180,ZRE18#201306-201605

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iNDE180,NRE180,ZRE18#201306-201605

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iNDE180,NRE180,ZRE18#201306-201605

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iNDE180,NRE180,ZRE18#201306-201605

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02070iNDE180,NRE180,ZRE18#201306-201605

48811BAR, STABILIZER, FRONT

main48811-02300iNDE180,NRE180,ZRE18#201306-201605

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-02150iNDE180,NRE180,ZRE18#201306-201605

main48815-02370iNRE180..RUS201703-201808

main48815-05160iNDE180,ZRE181..EUR201606-201901

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-02140iNDE180,NRE180,ZRE18#201306-201605

main48815-02360iNRE180..RUS201703-201808

main48815-05170iNDE180,ZRE181..EUR201606-201901

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051×4iNDE180,ZRE18#201606-201901

(L)

main94151-21241×4iNDE180,ZRE18#201606-201901

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02070iNDE180,NRE180,ZRE18#201306-201605

5102

28 parts on this diagram · 1 diagram in section
