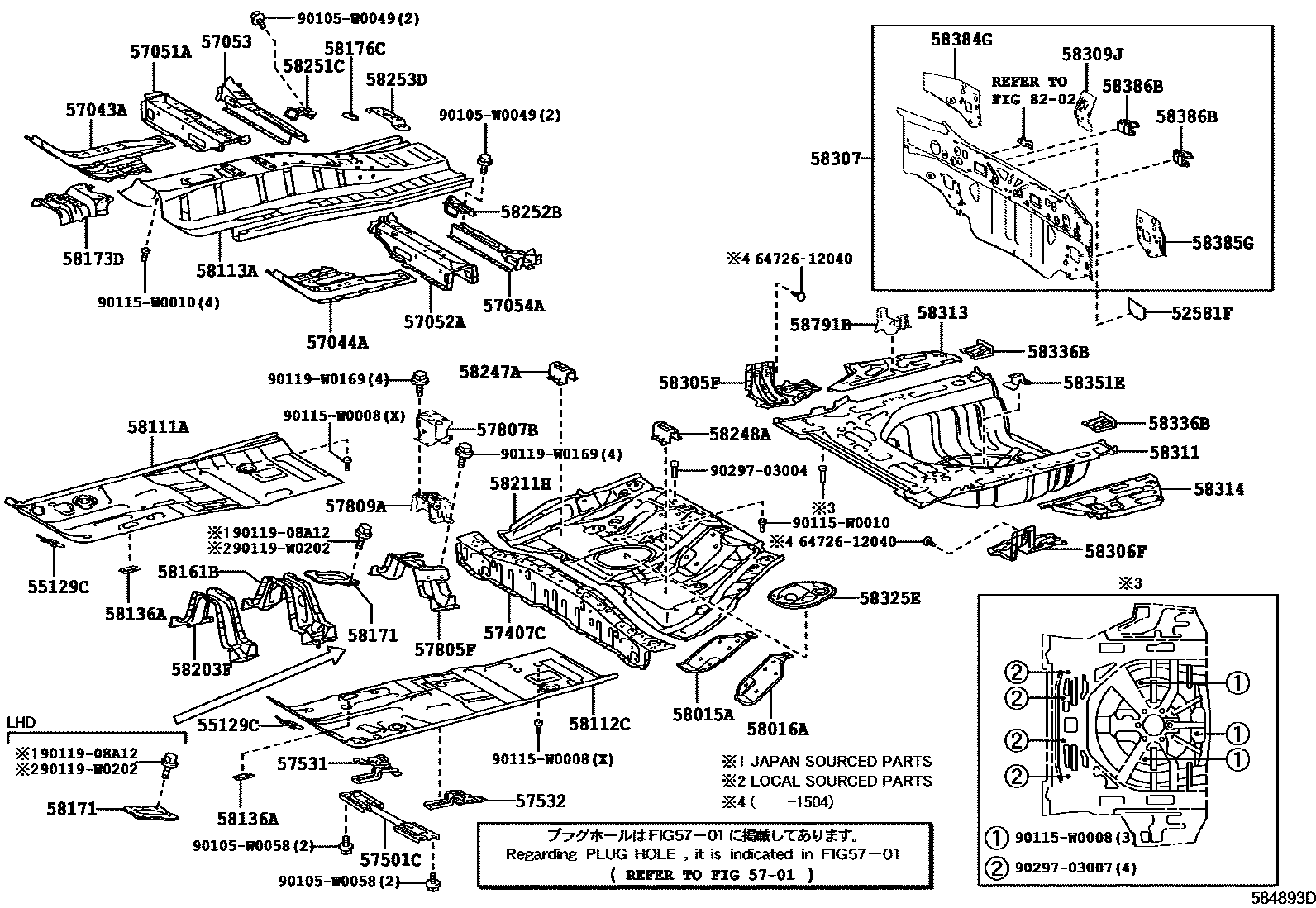

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

52581FPROTECTOR, REAR BUMPER

main52581-02020iNDE180,NRE180,ZRE18#201606-201901

55129CCOVER, DASH PANEL HOLE

main55129-02030iNDE180,ZRE18#201606-201901

RH

main55139-02020iNDE180,NRE180,ZRE18#201306-201605

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02040iNDE180,ZRE18#201606-201901

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02040iNDE180,ZRE18#201606-201901

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02010iNDE180,ZRE18#201606-201901

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02010iNDE180,NRE180,ZRE18#201306-201605

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02010iNRE180201606-201808

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02010iNDE180,ZRE18#201606-201901

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02201iNDE180,ZRE18#201606-201901

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-02021iNDE180,ZRE18#201606-201901

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02010iNDE180,ZRE18#201606-201901

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02010iNDE180,ZRE18#201606-201901

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02031iNRE180201606-201808

57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

main57807-02030iNRE180201606-201808

57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

main57809-02040iNRE180201606-201808

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02160iNRE180201606-201808

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02140iNRE180201606-201808

58111APAN, FRONT FLOOR, RH

main58111-05903iNRE180201606-201808

58112CPAN, FRONT FLOOR, LH

main58112-05901iNRE180201606-201808

58113APANEL, FRONT FLOOR, CENTER

main58113-02907iNDE180..6FS201606-201901

main58113-02908iZRE18#;NDE180..6F201606-201901

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02030×2iNDE180,NRE180,ZRE18#201306-201605

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02040iNDE180,NRE180,ZRE18#201306-201605

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02040iNDE180,NRE180,ZRE18#201306-201605

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-02040iNDE180,NRE180,ZRE18#201306-201605

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02010iNDE180,NRE180,ZRE18#201306-201605

58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-02020iNDE180,NRE180,ZRE18#201306-201605

58211HPAN, CENTER FLOOR

main58211-02912iNDE180,ZRE18#201606-201901

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-05010iNDE180,NRE180,ZRE18#201306-201605

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-05010iNRE180201606-201808

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02030iNRE180201606-201808

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02010iNRE180201606-201808

58253DBRACKET, PARKING BRAKE CABLE

main58253-02020iNRE180201606-201808

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02010iNDE180,NRE180,ZRE18#201306-201508

main58305-02060iNDE180,NRE180,ZRE18#201508-201605

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02010iNDE180,NRE180,ZRE18#201306-201508

main58306-02060iNDE180,ZRE18#201606-201901

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02370iNDE180,NRE180,ZRE18#201306-201605

58309JRETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

main58309-02200iNRE180201606-201808

58311PAN, REAR FLOOR

main58311-02240iNRE180201606-201808

58313PANEL, REAR FLOOR SIDE, RH

main58313-02190iNDE180,NRE180,ZRE18#201306-201605

58314PANEL, REAR FLOOR SIDE, LH

main58314-02160iNDE180,NRE180,ZRE18#201306-201605

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02080iNDE180,ZRE18#201606-201901

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-02050×2iNRE180201606-201808

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02020iNRE180201606-201808

58384GGUSSET, LOWER BACK, UPPER RH

main58384-02180iNDE180,NRE180,ZRE18#201306-201605

58385GGUSSET, LOWER BACK, UPPER LH

main58385-02150iNDE180,ZRE18#201606-201901

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02010×2iNDE180,NRE180,ZRE18#201306-201605

58791BCARRIER, JACK

main58791-02070iNDE180,ZRE18#201606-201901

8202

6472612040PAD, HOUSING SPARE WHEEL SILENCER, FRONT

main64726-12040

90105W0049

main90105-W0049

90105W0058

main90105-W0058

90115W0008

main90115-W0008

90115W0010

main90115-W0010

9011908A12

main90119-08A12

90119W0169

main90119-W0169

90119W0202

main90119-W0202

9029703004

main90297-03004

9029703007

main90297-03007

58 parts on this diagram · 2 diagrams in section
