Toyota COROLLA — DISTRIBUTOR

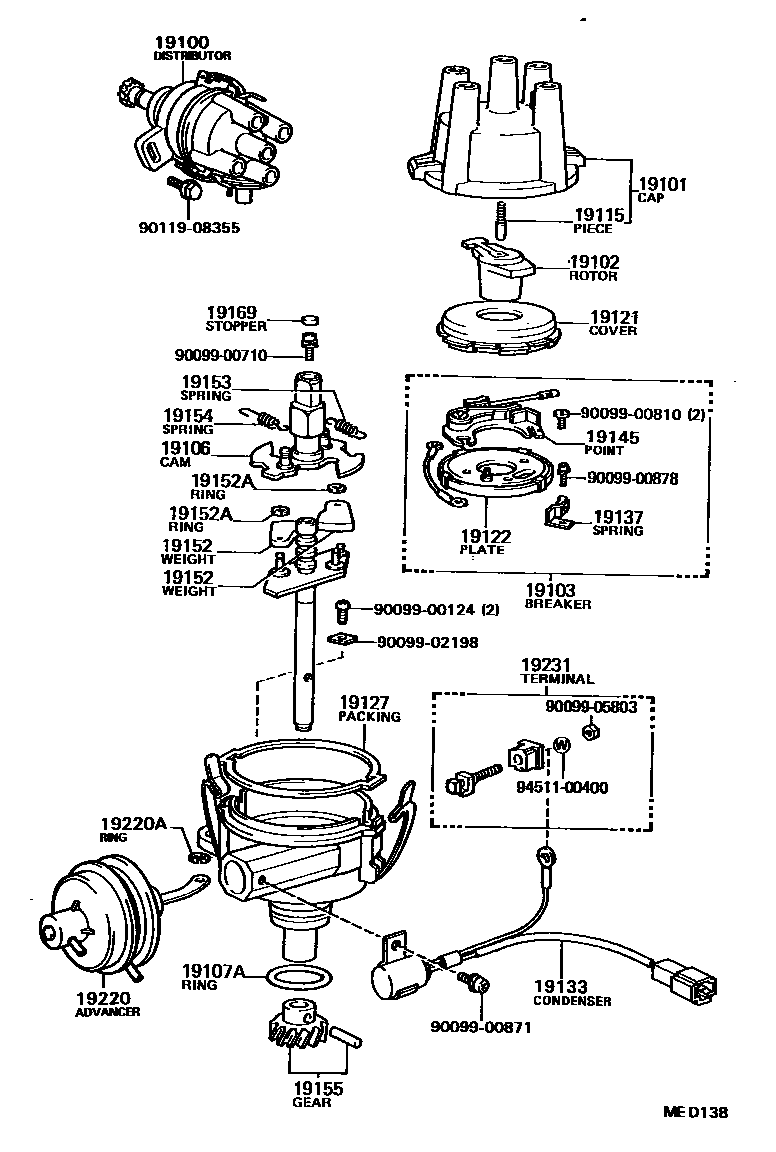

Parts diagram

19100DISTRIBUTOR ASSY

main19100-13070i197908-198108

main19100-13100i197908-198204

main19100-13110i197908-198108

main19100-13160i198108-198707

main19100-13170i198108-198305

main19100-13180i198108-198208

main19100-13190i198108-198707

main19100-13200i198108-198410

main19100-13280i198204-198707

main19100-13310i198208-198707

main19100-16030i198305-198707

main19100-16050i198508-198707

main19100-26163i197908-198305

main19100-26310i197908-198203

main19100-26330i198108-198203

HONG KONG SPEC

main19100-26330i198108-198305

main19100-26340i198108-198203

HONG KONG SPEC

main19100-26340i198108-198305

main19100-28070i197908-198305

main19100-28110i198108-198208

main19100-28120i198208-198305

main19100-28130i198203-198502

main19100-88224i197908-198305

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-15010i198305-198707

main19101-25070i197908-198707

main19101-27050i198108-198208

main19101-27050i198108-198203

HONG KONG SPEC

main19101-27051i198208-198305

main19101-31013i197908-198204

main19101-33012i197908-198502

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-10020i198108-198605

main19102-22010i197908-197910

main19102-22012i197910-198108

main19102-24120i197908-197910

main19102-24121i197910-198204

main19102-26150i197908-198502

main19102-26151i198601-198707

main19102-33012i198108-198707

main19102-38210i198108-198203

HONG KONG SPEC

main19102-38210i198108-198305

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-13070i198012-198707

main19103-14010i198305-198707

main19103-22011i197908-198204

main19103-26210i197908-198502

main19103-33013i197908-198707

main19103-88224i197908-198305

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-14050i198508-198707

main19106-16030i198305-198707

main19106-24050i197908-198204

main19106-25021i198111-198707

main19106-26010i198111-198707

main19106-28070i197908-198305

main19106-34013i198111-198707

main19106-38011i197908-198502

main19181-25021i198108-198111

main19181-26010i198108-198111

main19181-34013i197908-198111

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i197908-198707

main96710-04030i198305-198409

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i197908-198707

19121COVER, DUST PROOF

main19121-10010i197908-198204

main19121-33011i197908-198502

main19121-38030i197908-198707

main19121-38210i198108-198305

main19121-38210i198108-198203

HONG KONG SPEC

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-13070i198012-198707

main19122-14010i198305-198707

main19122-26210i197908-198502

main19122-29021i197908-198204

main19122-33013i197908-198707

main19122-88260i197908-198305

main19122-88262i198108-198203

HONG KONG SPEC

main19122-88262i198108-198305

19127PACKING, DUST PROOF

main19127-15010i198108-198707

main19127-15021i198108-198203

HONG KONG SPEC

main19127-15021i198108-198305

main19127-88220i197908-198502

main19127-88251i197908-198305

19133CONDENSER, DISTRIBUTOR

main90099-52059i197908-198707

main90099-52060i197908-198204

main90099-52068i197908-198305

main90099-52076i198305-198707

19137SPRING SUB-ASSY, DAMPER

main19137-14010i198305-198707

main19137-33012i197908-198707

19145POINT, DISTRIBUTOR

main19145-14010i198305-198707

main19145-26060i197908-198707

19152WEIGHT, GOVERNOR

main19152-44170i198107-198707

main19152-45060i197908-198707

main19152-87104i197908-198204

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07104i197908-198305

main90099-07109i197908-198707

19153SPRING, GOVERNOR, A

main19153-13030i197908-198707

main19153-13100i197908-198204

main19153-13160i198108-198707

main19153-13190i198108-198707

main19153-16040i198305-198707

main19153-16050i198508-198707

main19153-26162i197908-198305

main19153-26190i197908-198203

main19153-26330i198108-198203

HONG KONG SPEC

main19153-26330i198108-198305

main19153-26340i198108-198203

HONG KONG SPEC

main19153-26340i198108-198305

main19153-28070i197908-198305

main19153-28110i198108-198208

main19153-28120i198208-198305

main19153-28130i198203-198502

main19153-88224i197908-198305

19154SPRING, GOVERNOR, B

main19153-16050i198508-198707

main19153-28070i197908-198305

main19153-28110i198108-198208

main19154-13030i197908-198707

main19154-13100i197908-198204

main19154-13160i198108-198707

main19154-13190i198108-198707

main19154-16040i198305-198707

main19154-26162i197908-198305

main19154-26190i197908-198203

main19154-26330i198108-198203

HONG KONG SPEC

main19154-26330i198108-198305

main19154-26340i198108-198305

main19154-26340i198108-198203

HONG KONG SPEC

main19154-28080i198208-198305

main19154-28130i198203-198502

main19154-88224i197908-198305

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-15021i198305-198707

main19195-24020i197908-198204

main19195-24081i197908-198707

main19195-25011i197908-198502

main19195-88220i197908-198305

19169STOPPER, CAM GREASE

main19169-32010i197908-198705

main19169-63011i198705-198707

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-13032i198108-198410

main19220-13070i197908-198108

main19220-13100i197908-198204

main19220-13160i198108-198707

main19220-13170i198108-198305

main19220-13190i198108-198707

main19220-13310i198208-198707

main19220-16040i198508-198707

main19220-16050i198305-198707

main19220-26163i197908-198305

main19220-26310i197908-198502

main19220-26330i198108-198305

main19220-26330i198108-198203

HONG KONG SPEC

main19220-26340i198108-198305

main19220-26340i198108-198203

HONG KONG SPEC

main19220-28070i197908-198305

main19220-28110i198108-198305

main19220-88224i197908-198305

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07104i197908-198204

main90099-07109i198108-198707

main90099-07109i198108-198203

HONG KONG SPEC

19231TERMINAL, DISTRIBUTOR

main19132-36020i197908-198502

main19231-24140i198305-198707

main19231-38011i197908-198707

main19231-45020i197908-198204

main19231-88260i197908-198305

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009902198

main90099-02198

9009905803

main90099-05803

9011908355

main90119-08355

9451100400

main94511-00400

31 parts on this diagram · 10 diagrams in section

DISTRIBUTOR for Toyota COROLLA

This section contains 69 genuine Toyota parts for the DISTRIBUTOR system of the Toyota COROLLA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY.
