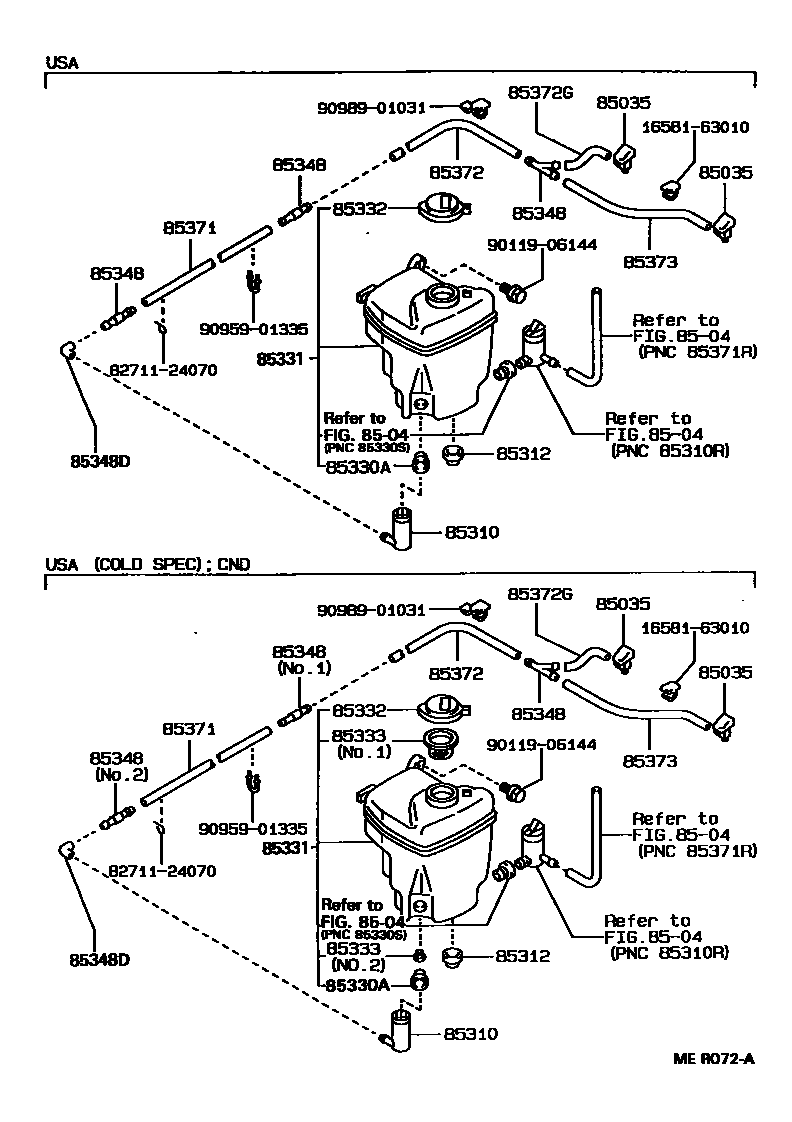

Toyota COROLLA WAGON — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85035-12290×2i199009-199308

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-14080i199009-199208

COLD SPEC

main85310-16050i199009-199208

85312PACKING, WINDSHIELD WASHER TANK

main85312-12650i199009-199308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199009-199208

main90099-32103i199009-199208

COLD SPEC

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-12680i199009-199208

main85331-12700i199009-199208

COLD SPEC

85332CAP, WINDSHIELD WASHER JAR

main85332-12660i199009-199308

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010i199009-199208

COLD SPEC,NO.1

main85333-20020i199009-199208

COLD SPEC,NO.2

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i199009-199308

3-WAY

main85349-14010i199009-199208

COLD SPEC,2-WAY,NO.1

main85349-20010i199009-199208

COLD SPEC,2-WAY,NO.2

main85349-89122×2i199009-199208

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i199009-199208

main85355-32110i199009-199208

COLD SPEC

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075i199009-199208

L=1100,COLD SPEC

main90099-33410i199009-199208

L=1800(*H,L=1100)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33196i199009-199308

L=1450(*H,L=560)

85372GTUBE, RUBBER

main90099-33080i199009-199208

L=1450; L=1450,COLD SPEC

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199009-199308

L=1450

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

9011906144

main90119-06144

9095901335

main90959-01335

9098901031

main90989-01031

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA WAGON

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA WAGON. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, WINDSHIELD WASHER TANK, BUSH, WINDSHIELD WASHER JAR.
