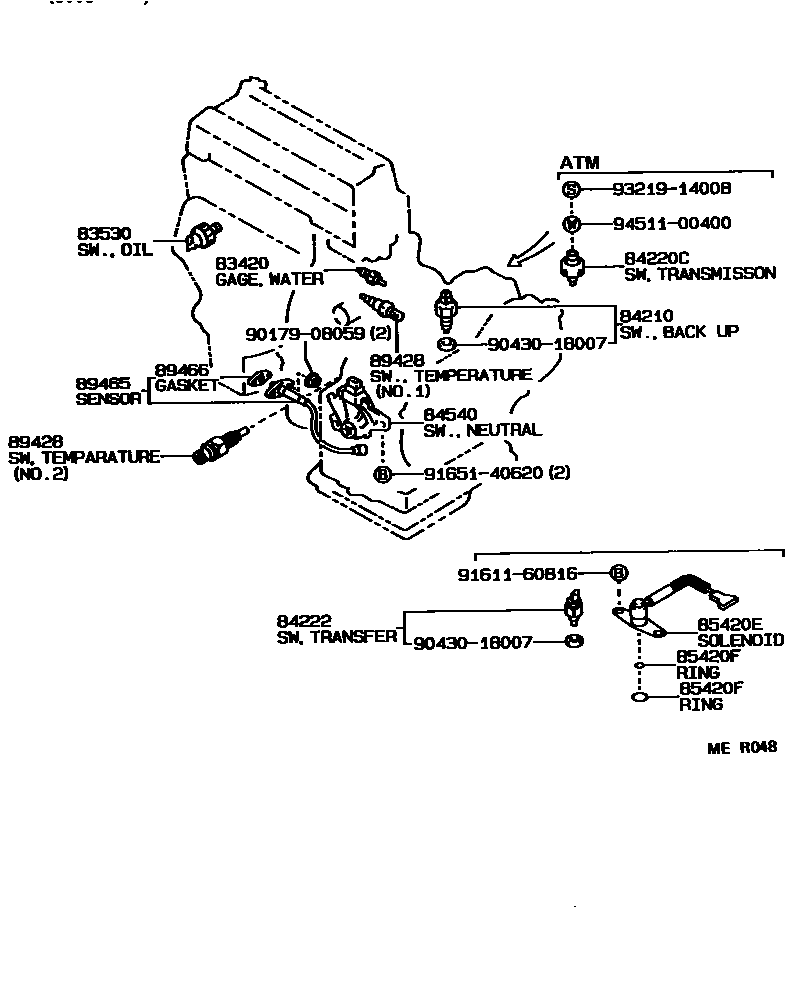

Toyota COROLLA WAGON — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE95199009-199308

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30051iAE95199009-199308

sub83530-60050

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE95..5F199009-199308

sub84210-52050

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iAE95..4FC199009-199308

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE95..5F199009-199308

84540SWITCH ASSY, NEUTRAL START

main84540-16030iAE95..4FC199009-199308

85420ESOLENOID ASSY, TRANSMISSION

main85420-12080iAE95..4FC199009-199308

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE95..4FC199009-199308

ID=10

main90301-23001iAE95..4FC199009-199308

ID=23

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12100iAE95..4FC199009-199308

NO.2

main89428-15011iAE95199009-199308

NO.1

sub89428-32010

89465SENSOR, OXYGEN

main89465-19355iAE95199009-199308

89466GASKET, OXYGEN SENSOR

main89466-20020iAE95199009-199308

9017908059

main90179-08059

9043018007

main90430-18007

9161160816

main91611-60816

9165140620

main91651-40620

9321914008

main93219-14008

9451100400

main94511-00400

17 parts on this diagram · 5 diagrams in section
