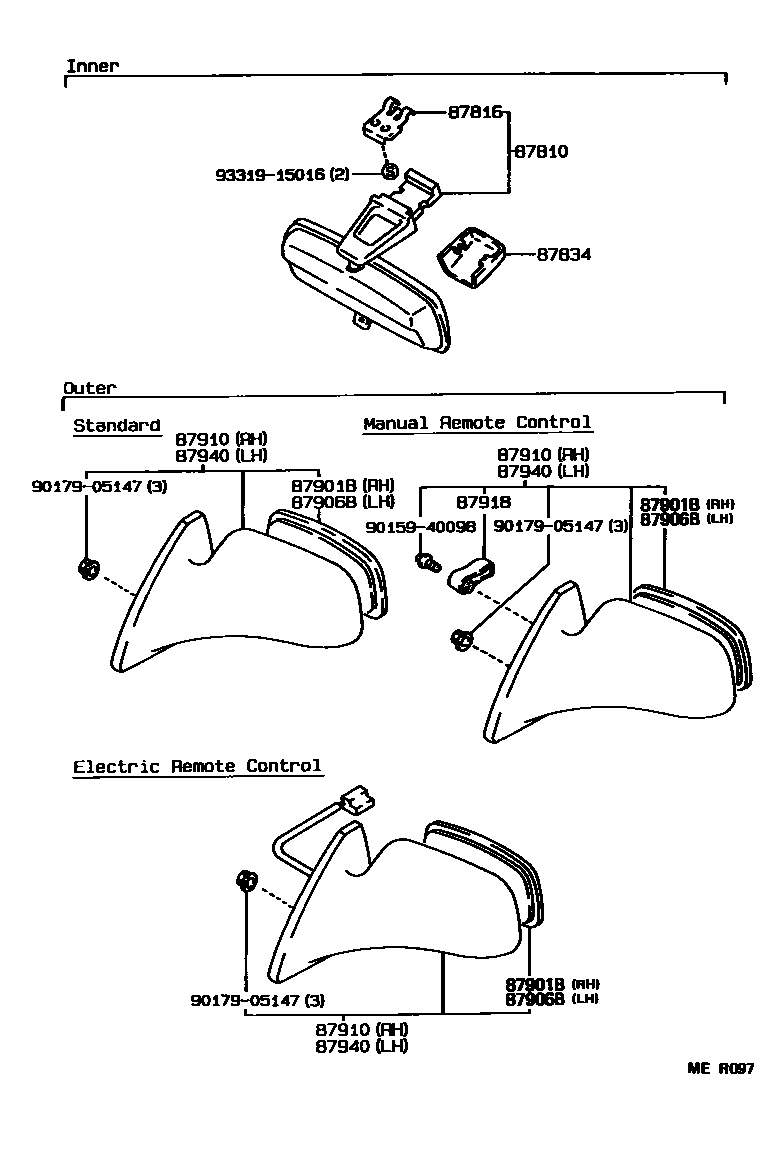

Toyota COROLLA WAGON — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12240-B1i199009-199308

SHADOW GRAY,TRIM1#

main87810-12240-J0i199009-199308

DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199009-199308

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B2i199009-199308

SHADOW GRAY,TRIM1#

main87834-12030-J1i199009-199308

DARK BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-1A240i199009-199208

main87931-1A250i199009-199208

ELECTRIC REMOTE CONTROL MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-1A320i199009-199308

main87961-1A330i199009-199208

ELECTRIC REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A230i199009-199308

main87910-1A240i199009-199308

MANUAL REMOTE CONTROL MIRROR

main87910-1A250i199009-199208

ELECTRIC REMOTE CONTROL MIRROR

87918KNOB, CONTROL OUTER MIRROR

main87918-16010i199009-199208

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A310i199009-199308

main87940-1A320i199009-199208

main87940-1A330i199009-199208

ELECTRIC REMOTE CONTROL MIRROR

9015940098

main90159-40098

9017905147

main90179-05147

9331915016

main93319-15016

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA WAGON

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota COROLLA WAGON. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
