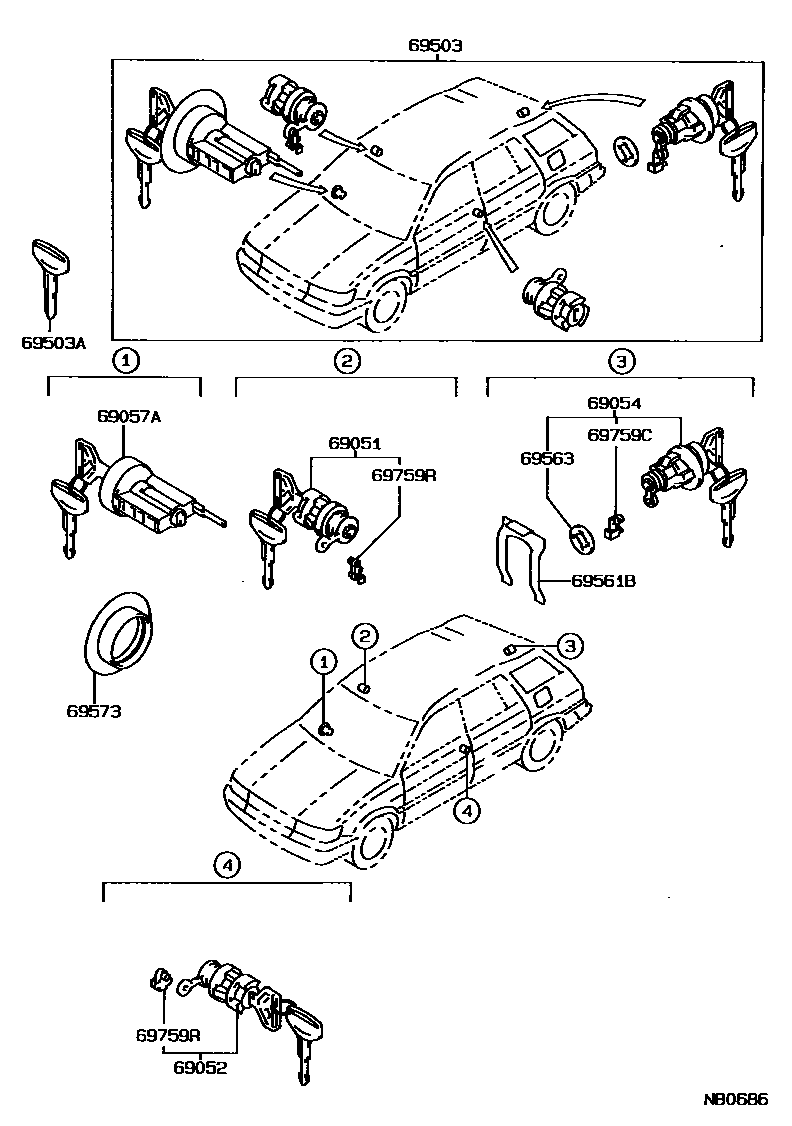

Toyota COROLLA WAGON — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12210i199009-199308

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12210i199009-199308

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12560i199009-199308

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12100i199009-199308

69503CYLINDER SET, LOCK

main69005-1A170i199009-199308

69503AKEY, BLANK

main90999-00130i199009-199308

MASTER KEY

main90999-00132i199009-199308

MASTER KEY,W(*68)

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69511-32010i199009-199308

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12040i199009-199308

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010i199009-199308

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090i199009-199308

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040i199009-199308

main69759-30050i199009-199308

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota COROLLA WAGON

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA WAGON. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
