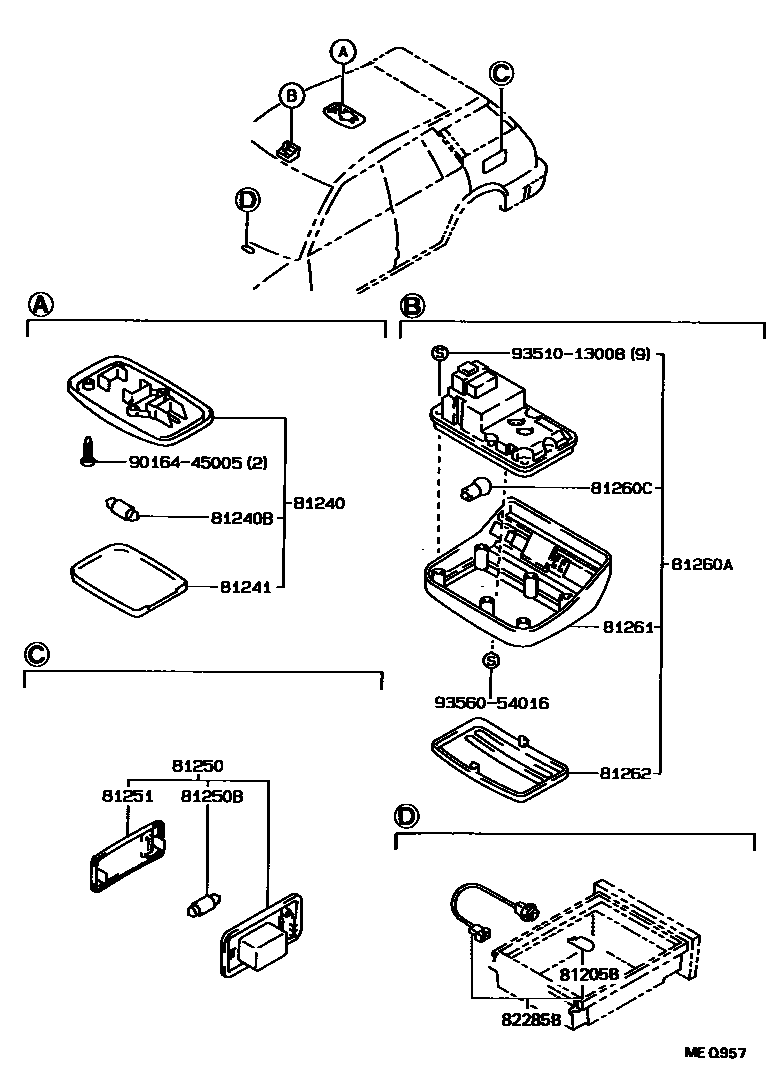

Toyota COROLLA WAGON — INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81240LAMP ASSY, ROOM, NO.1
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
GRAY,TRIM1#
BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
GRAY,TRIM1#
BLUE,TRIM8#
81262LENS, MAP LAMP
82285BWIRE, ILLUMINATION
9016445005
main90164-45005
9351013008
main93510-13008
9356054016
main93560-54016
15 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA WAGON
This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA WAGON. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
