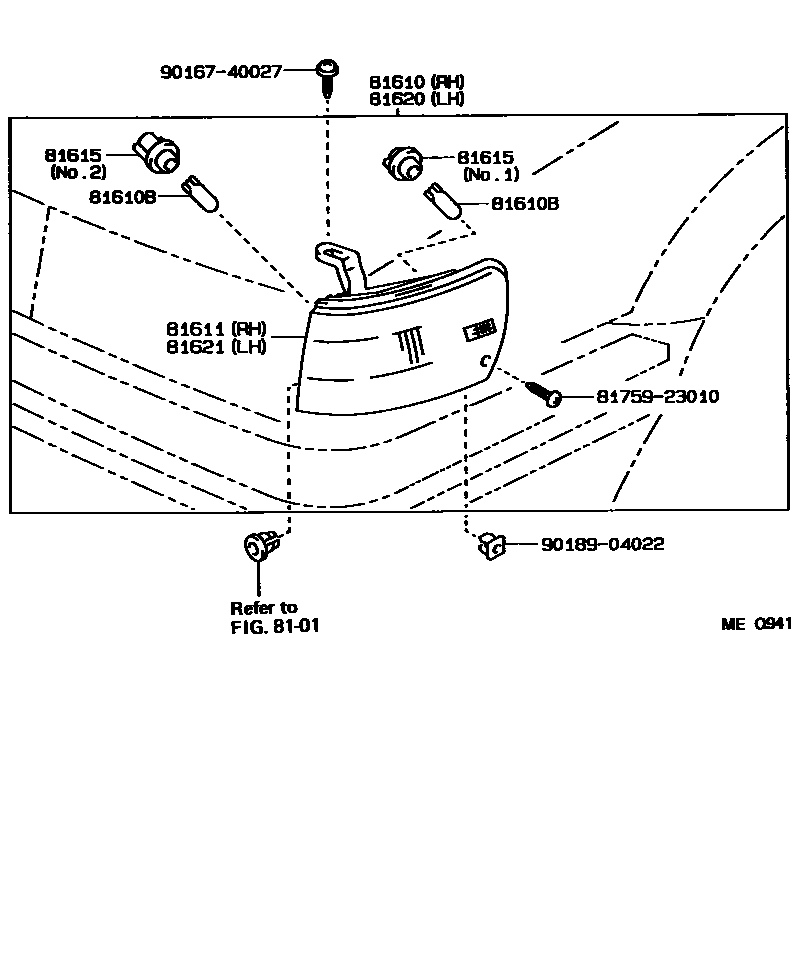

Toyota COROLLA WAGON — FRONT CLEARANCE LAMP

8101HEADLAMP

→ Go to FIG 81-01

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12440i199009-199308

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×4i199009-199308

12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12440i199009-199308

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99003×2i199009-199308

NO.2

main90075-99007×2i199009-199308

NO.1

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12440i199009-199308

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12440i199009-199308

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9016740027

main90167-40027

9018904022

main90189-04022

10 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA WAGON

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA WAGON. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
