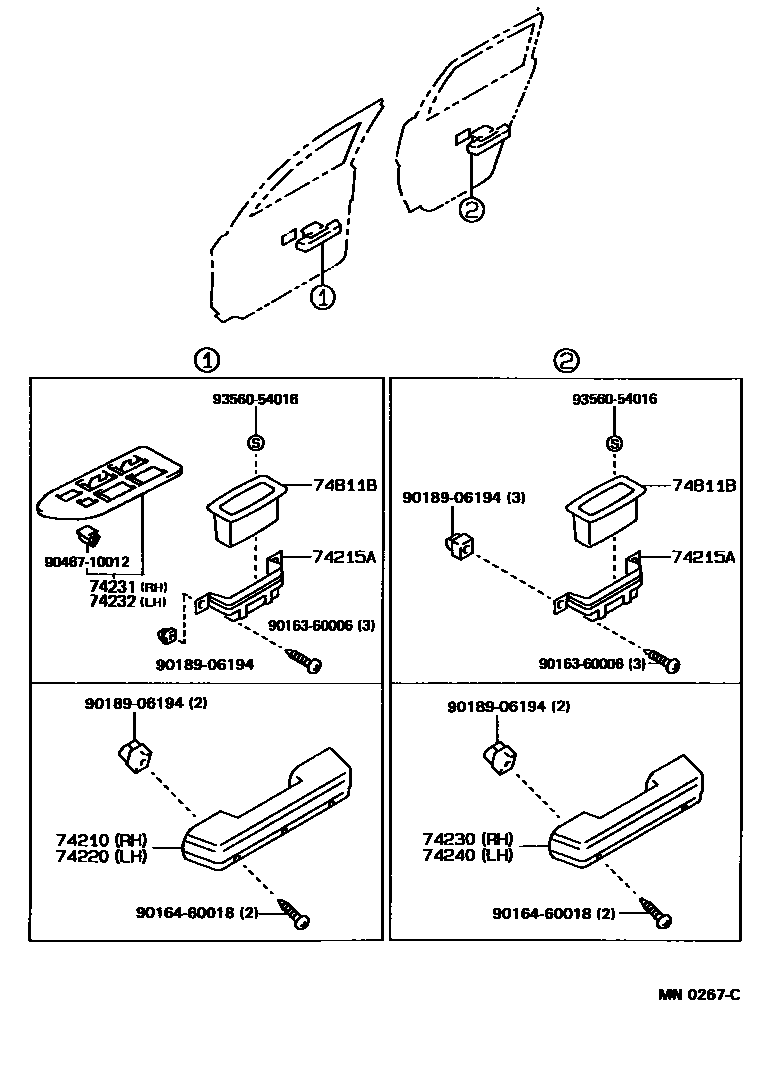

Toyota COROLLA WAGON — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12110-B1i199009-199308

SHADOW GRAY,TRIM1#

main74210-12110-J0i199009-199308

DARK BLUE,TRIM8#

74215ABASE, DOOR ARMREST RH

main74215-12020i199009-199208

W(POWER WINDOW),RH

main74215-12040i199009-199208

W(POWER WINDOW),LH

74220ARMREST ASSY, FRONT, LH

main74210-12110-B1i199009-199308

SHADOW GRAY,TRIM1#

main74210-12110-J0i199009-199308

DARK BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-12110-B1i199009-199308

SHADOW GRAY,TRIM1#

main74210-12110-J0i199009-199308

DARK BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12080-B1i199009-199208

SHADOW GRAY,TRIM1#

main74231-12080-J0i199009-199208

DARK BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12060-B1i199009-199208

SHADOW GRAY,TRIM1#

main74232-12060-J0i199009-199208

DARK BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-12110-B1i199009-199308

SHADOW GRAY,TRIM1#

main74210-12110-J0i199009-199308

DARK BLUE,TRIM8#

74811BHANDLE, DOOR PULL

main74811-12040-03i199009-199208

SHADOW GRAY,TRIM1#

main74811-12040-04i199009-199208

DARK BLUE,TRIM8#

9016360006

main90163-60006

9016460018

main90164-60018

9018906194

main90189-06194

9046710012

main90467-10012

9356054016

main93560-54016

13 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA WAGON

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA WAGON. Key components include: ARMREST ASSY, FRONT, RH, BASE, DOOR ARMREST RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
