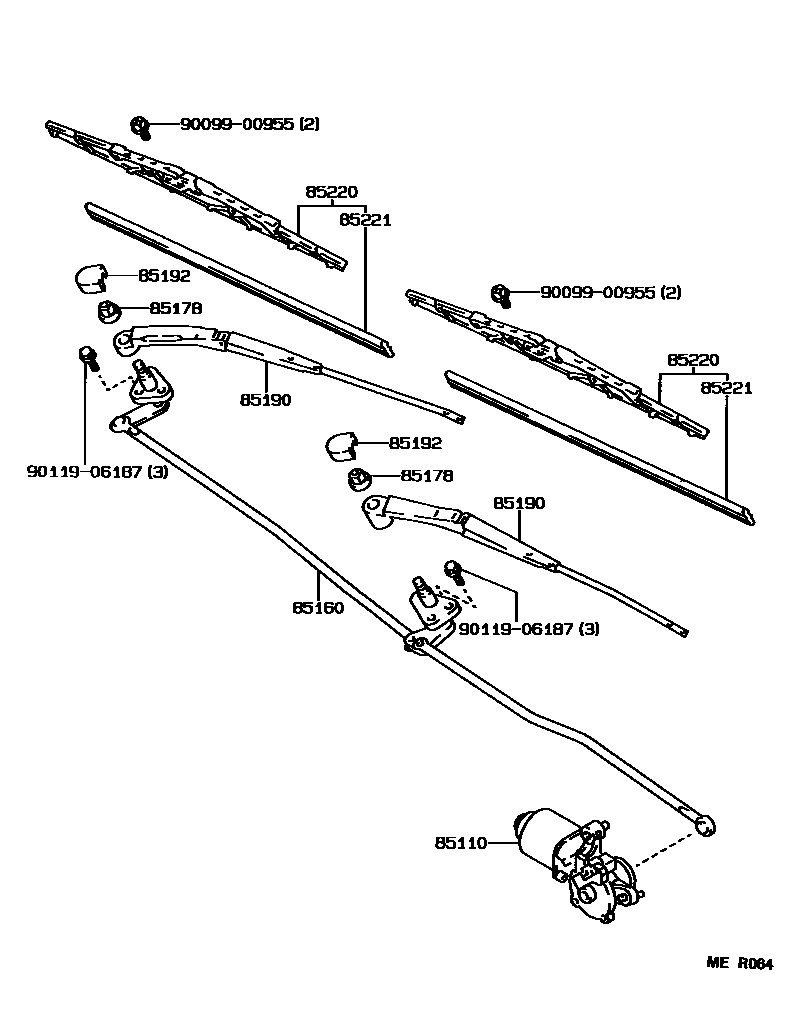

Toyota COROLLA WAGON — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12622iAE95..RHD..GEN199009-199508

sub85110-12682

main85110-12632iAE95..LHD199009-199508

sub85110-12652

main85110-12732iAE95..ARL199009-199508

sub85110-12682

85160LINK ASSY, WINDSHIELD WIPER

main85160-12491iAE95..LHD199009-199508

main85160-12510iAE95..RHD199009-199508

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAE95199009-199508

85190ARM ASSY, WINDSHIELD WIPER

main85190-12802iAE95..RHD199009-199011

RH

main85190-12803iAE95..RHD199011-199508

RH

main85190-12811iAE95..LHD199009-199508

LH

main85210-12242iAE95..RHD199009-199011

LH

main85210-12243iAE95..RHD199011-199508

LH

main85210-12251iAE95..LHD199009-199508

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iAE95199009-199108

main85292-12020×2iAE95199108-199508

PLANT NO.B11

85220BLADE ASSY, WINDSHIELD WIPER

main85212-12290iAE95..RHD199009-199508

RH

main85220-16880iAE95..LHD199009-199508

RH

sub85220-16640

main85220-32860iAE95..LHD199009-199508

LH

sub85220-3A050

main85222-12700iAE95..RHD199009-199508

LH

85221BLADE, WINDSHIELD WIPER

main85213-12280iAE95..RHD199011-199508

RH

sub85214-24H90

main85213-17040iAE95..RHD199009-199011

RH

main85221-30100iAE95..LHD199009-199508

RH

sub85221-40040

main85221-32050iAE95..LHD199009-199508

LH

sub85214-24H90

main85223-12690iAE95..RHD199011-199508

LH

sub85221-40040

main85223-22700iAE95..RHD199009-199011

LH

sub85221-40040

9009900955

main90099-00955

9011906187

main90119-06187

9 parts on this diagram · 2 diagrams in section
