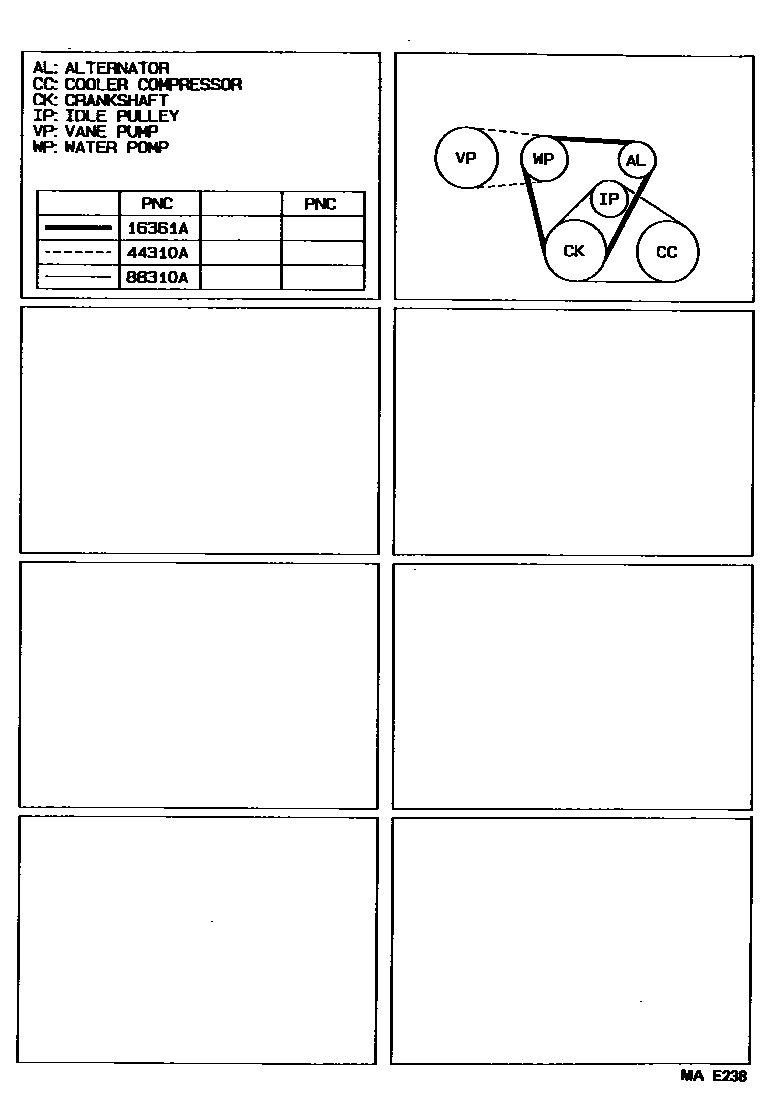

Toyota COROLLA WAGON — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-20970i199009-199508

44310ABELT, V(FOR VANE PUMP)

main99363-50630i199009-199305

main99363-80630i199305-199508

L=630

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-00860i199009-199106

L=860; L=860,W(AIR CONDITIONER=LOW PULLEY RATIO)

main99364-20860i199106-199308

L=860; L=860,W(AIR CONDITIONER=LOW PULLEY RATIO),MITSUBOSHI

main99364-20870i199308-199508

L=870,MITSUBOSHI

main99364-50830i199009-199106

W(AIR CONDITIONER)

main99364-70830i199106-199308

L=830,W(AIR CONDITIONER=DEALER KIT) OR W(AIR CONDITIONER=L/HEATER)

main99364-70860i199106-199308

W(AIR CONDITIONER=LOW PULLEY RATIO),BANDO

main99364-70870i199308-199508

BANDO; W(DOP AIR CONDITIONER=LOW PULLEY RATIO),BANDO

main99364-80870i199308-199508

W(AIR CONDITIONER=LOW PULLEY RATIO),BANDO

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA WAGON

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA WAGON. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
