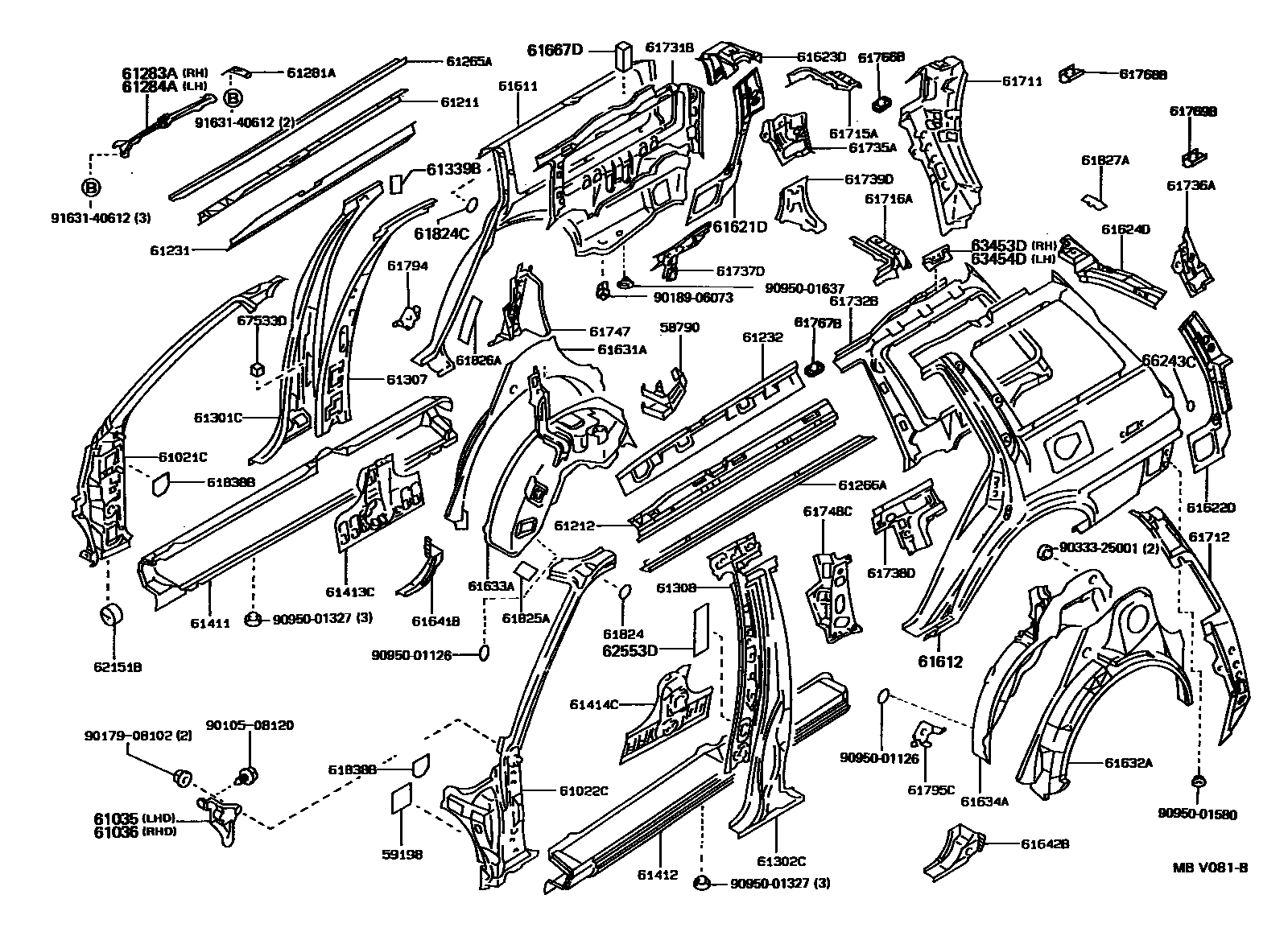

Toyota COROLLA WAGON — SIDE MEMBER

58790CARRIER ASSY, JACK

main58790-12040iAE95199009-199508

59198SEAL, NOISE SHUTTER

main59198-12010iAE95199009-199508

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-1A020iAE95..LHD199009-199508

sub61021-1A070

main61021-1A030iAE95..RHD199009-199508

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-1A020iAE95..LHD199009-199508

sub61022-1A080

main61022-1A040iAE95..RHD199009-199508

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12040iAE95..LHD199009-199508

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12040iAE95..RHD199009-199508

61211RAIL, ROOF SIDE, OUTER RH

main61211-12270iAE95199009-199508

61212RAIL, ROOF SIDE, OUTER LH

main61212-12270iAE95199009-199508

61231RAIL, ROOF SIDE, INNER RH

main61231-13120iAE95199009-199508

61232RAIL, ROOF SIDE, INNER LH

main61232-13100iAE95199009-199508

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12170iAE95199009-199508

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12170iAE95199009-199508

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12050iAE95199009-199508

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12060iAE95199009-199508

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12060iAE95199009-199508

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-12190iAE95199009-199508

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-12250iAE95199009-199508

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-12060iAE95..ARL199009-199508

main61307-13030iAE95..GEN199009-199210

sub61307-13020

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-12060iAE95..ARL199009-199508

main61308-13040iAE95..GEN199009-199210

sub61308-13030

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-12010iAE95..ARL199009-199508

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE95199009-199508

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE95199009-199508

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-12040iAE95199009-199508

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-12060iAE95199009-199508

61611PANEL, QUARTER, RH

main61601-1E909iAE95199009-199508

61612PANEL, QUARTER, LH

main61602-1E916iAE95..GEN;AE95..SR5199009-199508

W/O(KEY CYLINDER FOR FUEL LID)

main61602-1E918iAE95..XL..ARL199009-199508

61621DTROUGH, BACK DOOR OPENING, RH

main61621-12904iAE95199009-199508

61622DTROUGH, BACK DOOR OPENING, LH

main61622-12904iAE95199009-199508

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-12080iAE95199009-199508

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-12080iAE95199009-199508

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-13060iAE95199009-199508

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12270iAE95199009-199508

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12400iAE95199009-199508

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12420iAE95199009-199508

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE95199009-199508

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE95199009-199508

61667DSEAL, QUARTER PANEL

main61667-12060iAE95199009-199508

61711PANEL, ROOF SIDE, OUTER RH

main61711-12300iAE95199009-199508

61712PANEL, ROOF SIDE, OUTER LH

main61712-12330iAE95199009-199508

61715AEXTENSION, ROOF SIDE, INNER UPPER RH

main61715-12030iAE95199009-199508

61716AEXTENSION, ROOF SIDE, INNER UPPER LH

main61716-12030iAE95199009-199508

61731BPANEL, ROOF SIDE, INNER RH

main61731-12490iAE95199009-199508

61732BPANEL, ROOF SIDE, INNER LH

main61732-12450iAE95199009-199508

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12290iAE95199009-199508

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12260iAE95199009-199508

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-12110iAE95199009-199508

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-12120iAE95199009-199508

61739DREINFORCEMENT, JACK CARRIER SUPPORT

main61739-12110iAE95199009-199508

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12160iAE95199009-199508

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12160iAE95199009-199508

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-12220iAE95199009-199508

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-12180iAE95199009-199508

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-32010iAE95199009-199508

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61768-32010iAE95199009-199508

61794BRACKET, RADIO SPEAKER, NO.1

main61794-12010iAE95199009-199508

61795CBRACKET, RADIO SPEAKER, NO.2

main61795-12030iAE95199009-199508

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iAE95199009-199508

61824CPAD, NOISE SHUTTER, NO.1

main61824-12040iAE95199009-199508

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE95199009-199508

61826APLATE, NOISE CONTROL, NO.3

main61826-12040iAE95199009-199508

61827APLATE, NOISE CONTROL, NO.4

main61827-12020iAE95199009-199508

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010iAE95199009-199508

62151BPAD, COWL SIDE SILENCER

main62151-12100iAE95199009-199508

main62151-12130iAE95199106-199508

62553DPAD, PILLAR, NO.3

main62553-12120iAE95199009-199508

63453DREINFORCEMENT, ROOF RACK, REAR RH

main63453-13020iAE95199009-199508

63454DREINFORCEMENT, ROOF RACK, REAR LH

main63454-13020iAE95199009-199508

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iAE95199009-199508

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010iAE95199009-199508

9010508120

main90105-08120

9017908102

main90179-08102

9018906073

main90189-06073

9033325001

main90333-25001

9095001126

main90950-01126

9095001327

main90950-01327

9095001580

main90950-01580

9095001637

main90950-01637

9163140612

main91631-40612

77 parts on this diagram · 1 diagram in section
