Toyota COROLLA WAGON — PARTIAL ENGINE ASSEMBLY

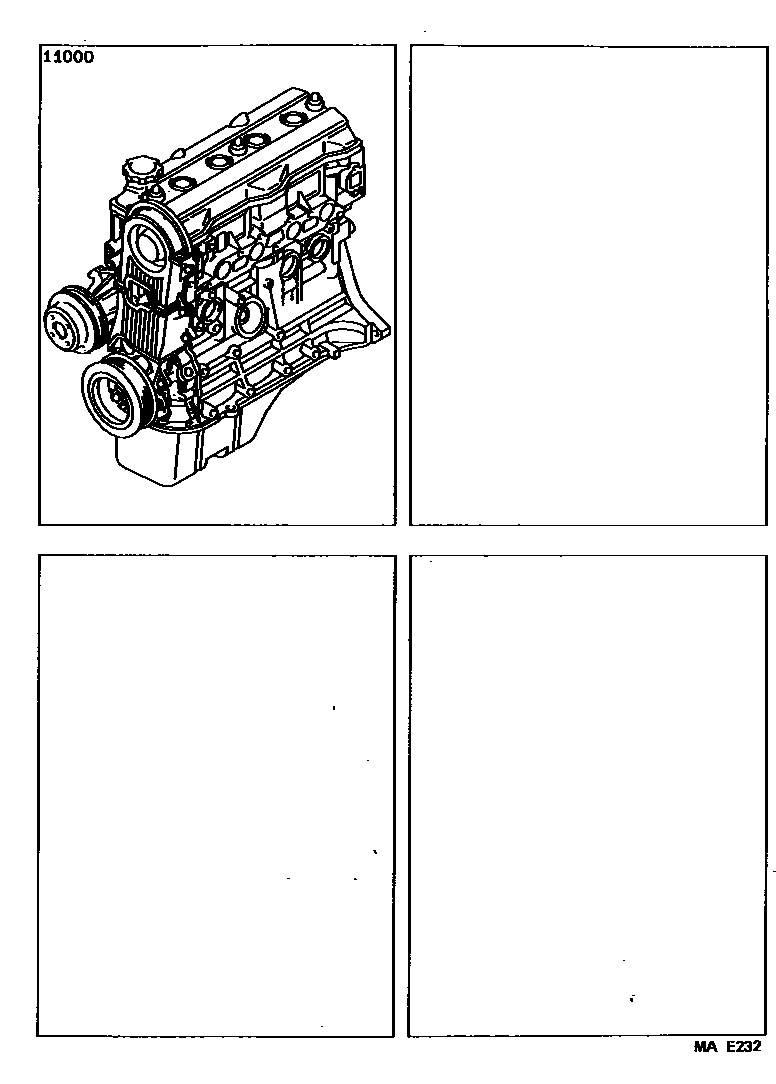

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-16533i199009-199104
NEW ZEALAND SPEC
sub19000-16534
main19000-16534i199104-199508
NEW ZEALAND SPEC
main19000-16552i199009-199104
sub19000-16553
main19000-16553i199104-199508
main19000-16593i199009-199104
sub19000-16594
main19000-16594i199104-199508

1 parts on this diagram · 1 diagram in section
