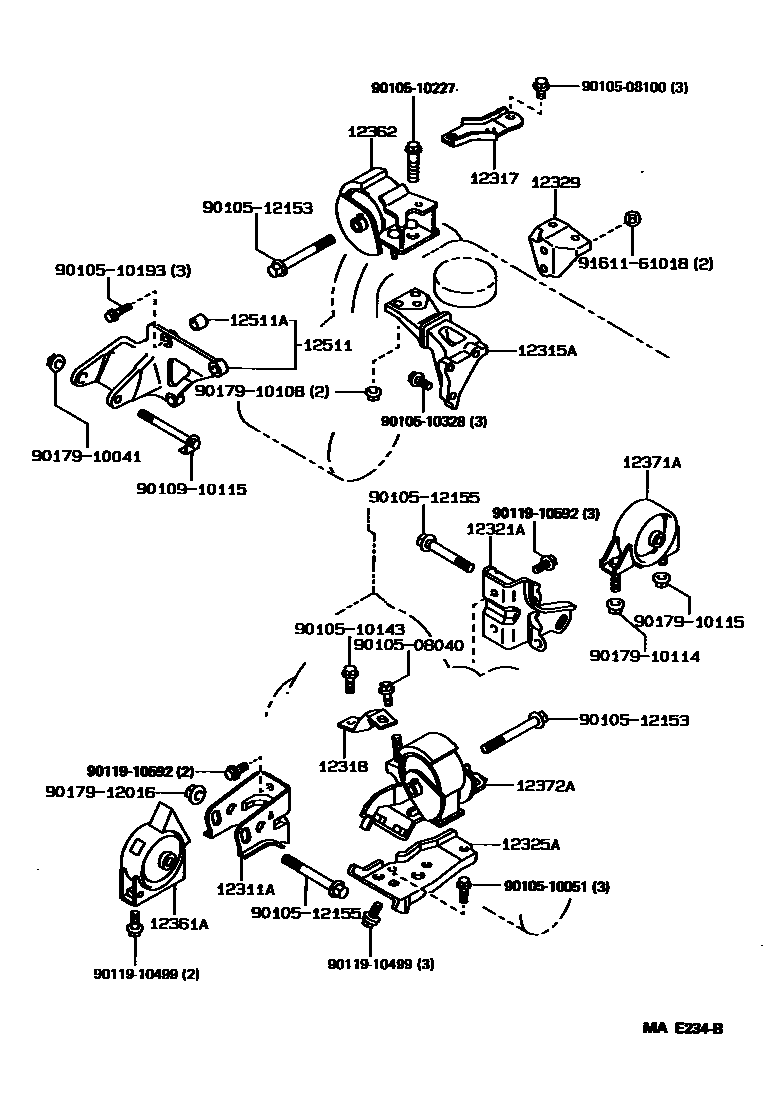

Toyota COROLLA WAGON — MOUNTING

0001 1 0002 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-16050i4AF#..AE95199009-199508

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15070i4AF#..AE95199009-199508

12317STAY, ENGINE MOUNTING, RH

main12317-15020i4AF#..AE95199009-199508

12318STAY, ENGINE MOUNTING, LH

main12318-16040i4AFE..AE95..4FC199009-199508

main12318-16070i4AF#..AE95..5F199009-199508

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-16090i4AF#..AE95..5F199009-199508

main12321-16100i4AFE..AE95..4FC199009-199508

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-16080i4AF#..AE95..5F199009-199508

main12325-16090i4AFE..AE95..4FC199009-199508

12329SUPPORT, ENGINE MOUNTING STAY

main12329-15010i4AF#..AE95199009-199508

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-16110i4AF#..AE95..5F199009-199508

main12361-16120i4AFE..AE95..4FC199009-199508

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-16141i4AF#..AE95199009-199508

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-16120i4AF#..AE95..5F199009-199508

main12371-16130i4AFE..AE95..4FC199009-199508

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-16130i4AFE..AE95..4FC199009-199508

main12372-16150i4AF#..AE95..5F199009-199508

12511BRACKET, ALTERNATOR, NO.1

main12511-15040i4AF#..AE95199009-199508

12511ABUSH, ALTERNATOR BRACKET

main90387-10013i4AF#..AE95199009-199508

9010508040

main90105-08040

9010508100

main90105-08100

9010510051

main90105-10051

9010510143

main90105-10143

9010510193

main90105-10193

9010510227

main90105-10227

9010510328

main90105-10328

9010512153

main90105-12153

9010512155

main90105-12155

9010910115

main90109-10115

9011910499

main90119-10499

9011910592

main90119-10592

9017910041

main90179-10041

9017910108

main90179-10108

9017910114

main90179-10114

9017910115

main90179-10115

9017912016

main90179-12016

9161161018

main91611-61018

31 parts on this diagram · 2 diagrams in section
