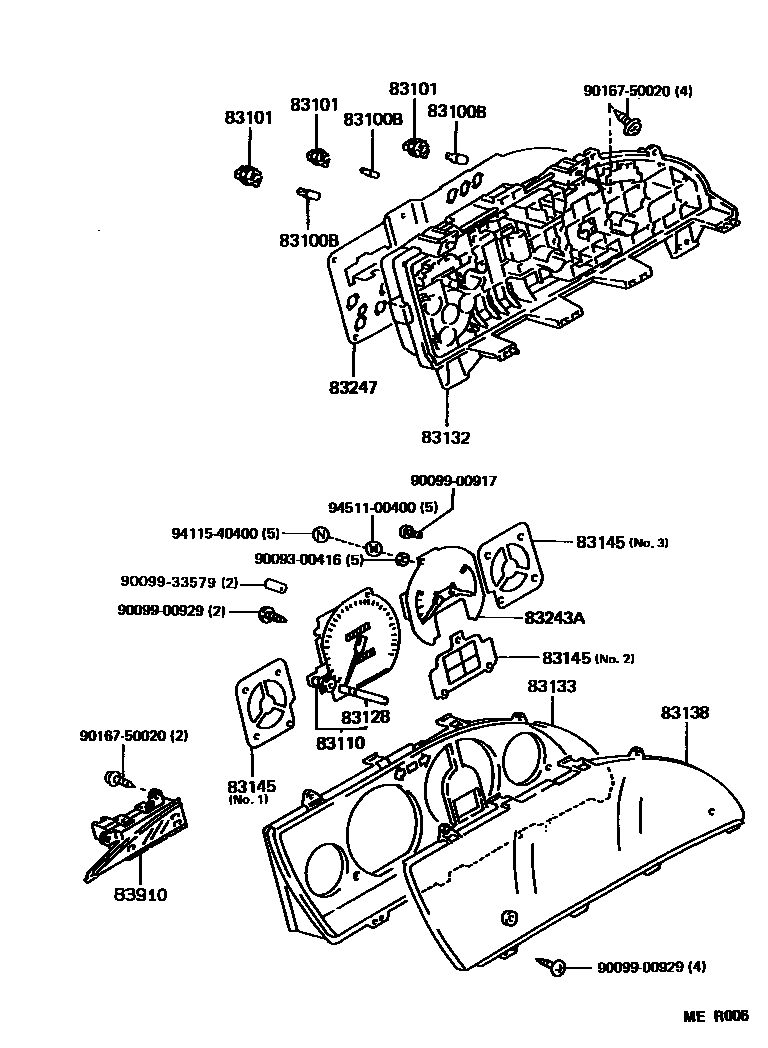

Toyota COROLLA WAGON — METER

0001 1 0002 1W(TACHOMETER) 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20060iAE95..RHD..GEN199009-199308

12V 1.4W,W(SOCKET)

main83101-20080iAE95..LHD199009-199508

12V 1.4W,W(SOCKET)

main83109-12030×3iAE95199009-199508

12V 3.4W,BLUE CAP

main90981-11018×9iAE95..XL..ARL199009-199508

12V 1.2W W/O SOCKET

main99132-12034iAE95..GEN199009-199308

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×9iAE95..RHD..XL199009-199508

12V 3.4W BULB

main83101-14040×4iAE95..XL..ARL199009-199508

12V 1.4W BULB

83110SPEEDOMETER ASSY

main83110-1E301iAE95..RHD..GEN199009-199508

MILE/KM

main83110-1E311iAE95..RHD..GEN199009-199508

main83110-1E321iAE95..RHD..GEN199009-199308

MILE/KM & W(TACHOMETER)

main83110-1E331iAE95..RHD..GEN199009-199308

W(TACHOMETER)

main83110-1E341iAE95..LHD199009-199508

sub83110-1E421

main83110-1E351iAE95..LHD199009-199508

MILE/KM

main83110-1E361iAE95..LHD199009-199508

W(TACHOMETER)

sub83110-1E411

main83110-1E371iAE95..LHD199009-199508

MILE/KM & W(TACHOMETER)

main83110-1E431iAE95..XL..ARL199009-199508

main83110-1E441iAE95..SR5199009-199508

83128KNOB, TRIP COUNTER

main83128-14630iAE95199009-199508

83132CASE, COMBINATION METER

main83132-1A210iAE95..RHD..XL199009-199508

main83132-1A230iAE95..LHD199009-199508

main83132-1A250iAE95..RHD..GEN199009-199308

W(TACHOMETER)

main83132-1A270iAE95..LHD199009-199508

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-13050iAE95..RHD..GEN199009-199308

W(TACHOMETER)

main83133-13070iAE95..5F..SR5199009-199508

main83133-13130iAE95..LHD199009-199508

W(TACHOMETER)

main83133-13250iAE95..RHD..GEN199009-199308

MILE/KM & W(TACHOMETER)

main83133-1A730iAE95..RHD..XL199009-199508

main83133-1A750iAE95..LHD199009-199508

main83133-1E370iAE95..4FC199009-199508

83138GLASS, SPEEDOMETER

main83138-1A010iAE95..RHD199009-199508

main83138-1A030iAE95..LHD199009-199508

83145LENS, METER, NO.1

main83145-13070iAE95..XL..ARL199009-199508

NO.3

main83145-13370iAE95..RHD..GEN199009-199508

NO.3

main83145-13390iAE95..XL..ARL199009-199508

NO.2

main83145-13410iAE95..LHD199009-199508

NO.1

main83145-1E290iAE95..RHD..XL199009-199508

NO.1

main83145-1E470iAE95..RHD..GEN199009-199508

NO.2

main83145-1E650iAE95..LHD199009-199508

NO.3

main83145-1E750iAE95..LHD199009-199508

NO.2

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1A231iAE95..SR5199009-199508

main83243-1A251iAE95..LHD199009-199508

W(TACHOMETER)

main83243-1A271iAE95..RHD..XL199009-199508

main83243-1A631iAE95..LHD199009-199508

83247PLATE, METER CIRCUIT

main83247-13570iAE95..RHD..GEN199009-199308

W(TACHOMETER)

main83247-13630iAE95..5F..SR5199009-199508

main83247-13690iAE95..XL..ARL199009-199508

main83247-13750iAE95..LHD199009-199508

W(TACHOMETER)

main83247-13810iAE95..LHD199009-199508

main83247-1E281iAE95..RHD..GEN199009-199508

main83247-1E561iAE95..RHD..GEN199009-199308

MILE/KM & W(TACHOMETER)

main83247-1E801iAE95..4FC199009-199508

83910CLOCK ASSY

main83910-12400iAE95..RHD199009-199508

JECO

main83910-12410iAE95..LHD199009-199508

main83910-12450iAE95..RHD199009-199508

RHYTHM

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9009933579

main90099-33579

9016750020

main90167-50020

9411540400

main94115-40400

9451100400

main94511-00400

18 parts on this diagram · 3 diagrams in section
