Toyota COROLLA WAGONHORN

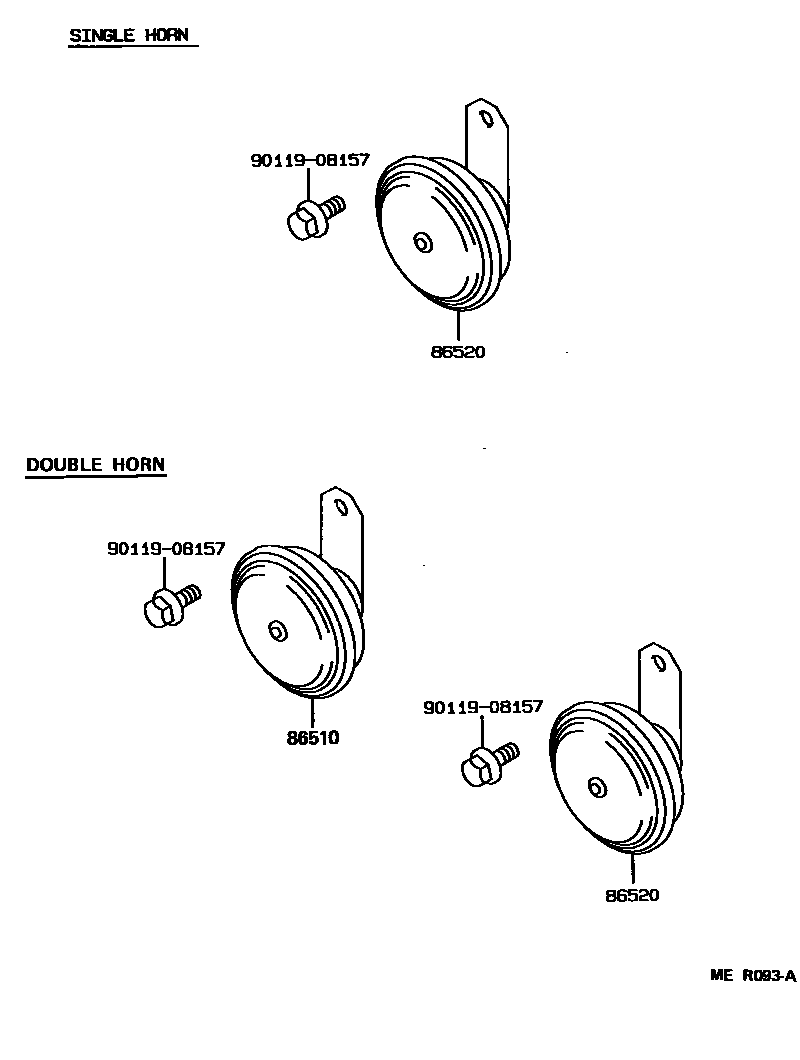

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-12270i199009-199508
MARUKO
main86510-12280i199009-199208
NIPPONDENSO
main86510-12450i199009-199508
W(MW/SW RADIO)
main86510-13010i199208-199508
NIPPONDENSO
86520HORN ASSY, LOW PITCHED
main86520-12220i199009-199508
MARUKO
main86520-12640i199009-199208
NIPPONDENSO
main86520-12670i199009-199508
W(MW/SW RADIO)
main86520-13010i199208-199508
NIPPONDENSO
9011908157

3 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA WAGON

This section contains 3 genuine Toyota parts for the HORN system of the Toyota COROLLA WAGON. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
