Toyota COROLLA WAGON — HEADLAMP

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

81110HEADLAMP ASSY, RH

main81110-1A870i199009-199508

LH TRAFFIC SPEC

main81110-1A890i199009-199508

main81110-1E010i199009-199508

HALOGEN YELLOW

main81110-1E140i199009-199508

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2i199009-199508

12V 45/40W,WHITE

main90981-13015×2i199009-199401

12V 60/55W,*HAL *WH

main90981-13016×2i199009-199508

12V 60/55W,*HAL *YE

main90981-22004×2i199401-199508

12V 60/55W,*HAL *WH

81112ARIM, HEADLAMP, RH

main81116-1A850i199009-199508

81135UNIT ASSY, HEADLAMP, RH

main81130-1A710i199009-199508

LH TRAFFIC SPEC

main81130-1A730i199009-199508

main81130-1E040i199009-199508

81144COVER, HEADLAMP, NO.1

main81139-20730×2i199009-199508

81150HEADLAMP ASSY, LH

main81160-1A870i199009-199508

LH TRAFFIC SPEC

main81160-1A890i199009-199508

main81160-1E010i199009-199508

HALOGEN YELLOW

main81160-1E140i199009-199508

81152ARIM, HEADLAMP, LH

main81156-1A850i199009-199508

81175UNIT ASSY, HEADLAMP, LH

main81170-1A710i199009-199508

LH TRAFFIC SPEC

main81170-1A730i199009-199508

main81170-1E040i199009-199508

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502403

main90075-02403

9007510801

main90075-10801

9011906506

main90119-06506

9017906132

main90179-06132

14 parts on this diagram · 1 diagram in section

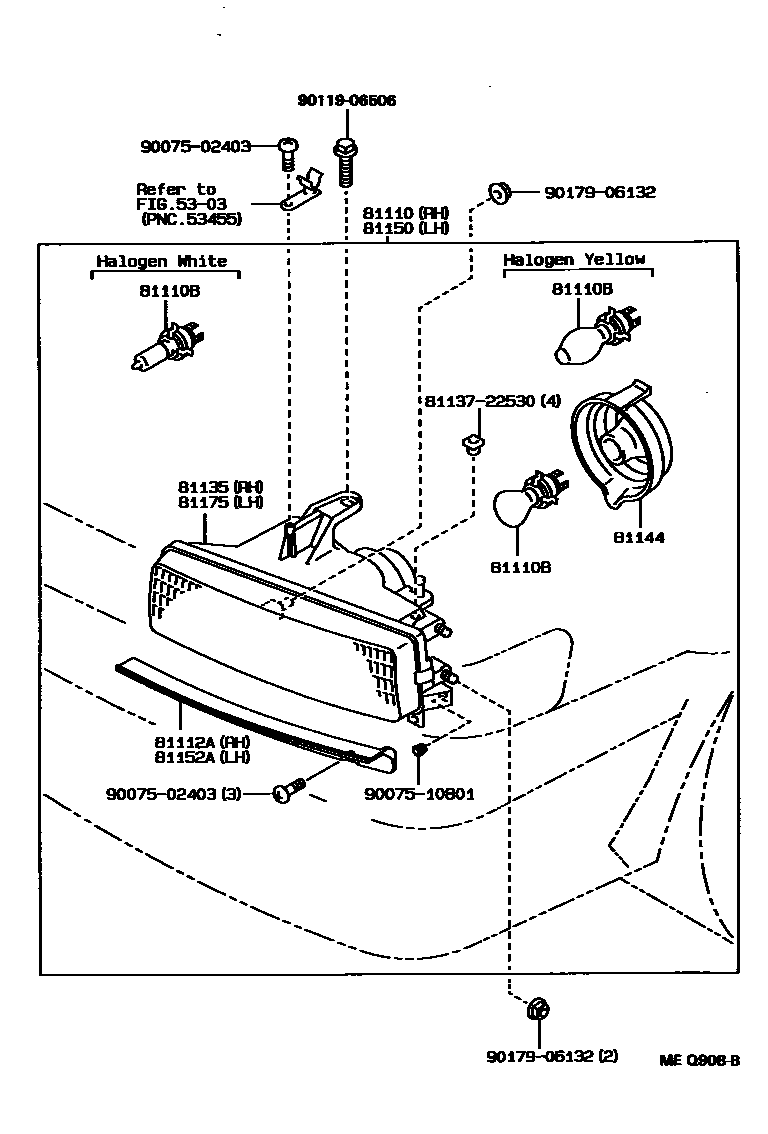

HEADLAMP for Toyota COROLLA WAGON

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA WAGON. Key components include: HOOD LOCK & HINGE, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), RIM, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH.
