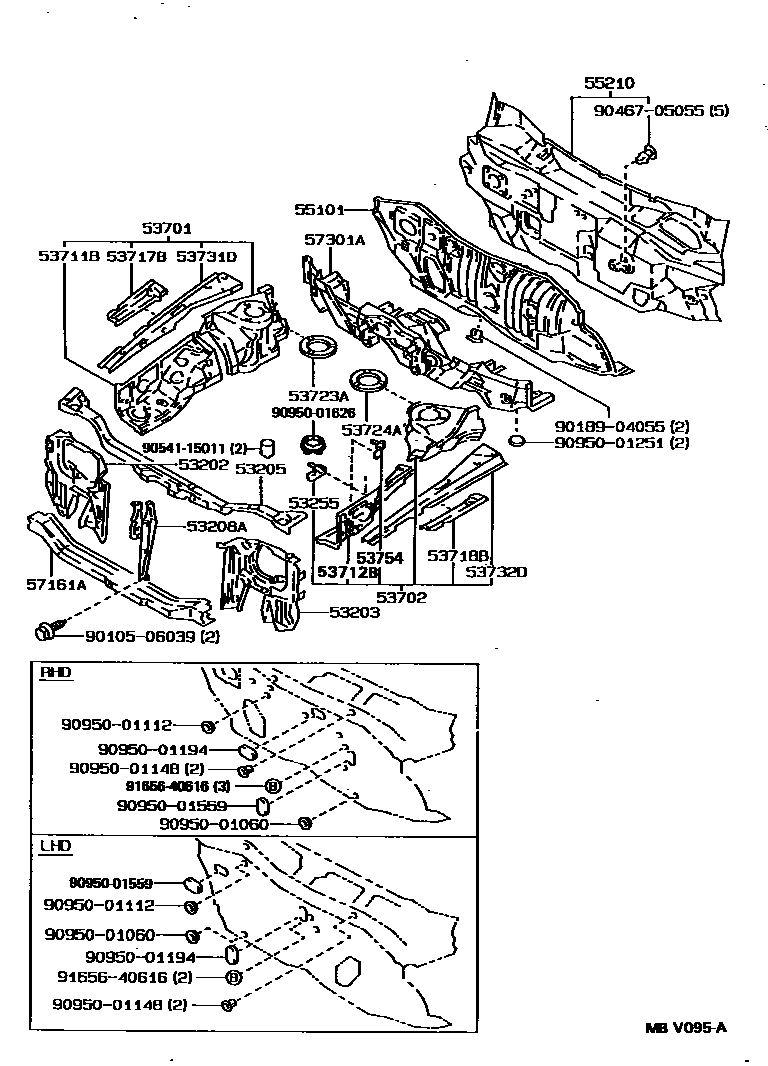

Toyota COROLLA WAGON — FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53255BRACKET, RELAY BOX MOUNTING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717BGUSSET, FENDER APRON, RH
53718BGUSSET, FENDER APRON, LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53754BRACKET, RELAY BOX MOUNTING, NO.2
55101PANEL SUB-ASSY, DASH
NEW ZEALAND SPEC
55210INSULATOR ASSY, DASH PANEL
57161AMEMBER, FRONT CROSS, FRONT W/REAR
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9010506039
main90105-06039
9018904055
main90189-04055
9046705055
main90467-05055
9054115011
main90541-15011
9095001060
main90950-01060
9095001112
main90950-01112
9095001148
main90950-01148
9095001194
main90950-01194
9095001251
main90950-01251
9095001559
main90950-01559
9095001626
main90950-01626
9165640616
main91656-40616
32 parts on this diagram · 1 diagram in section
