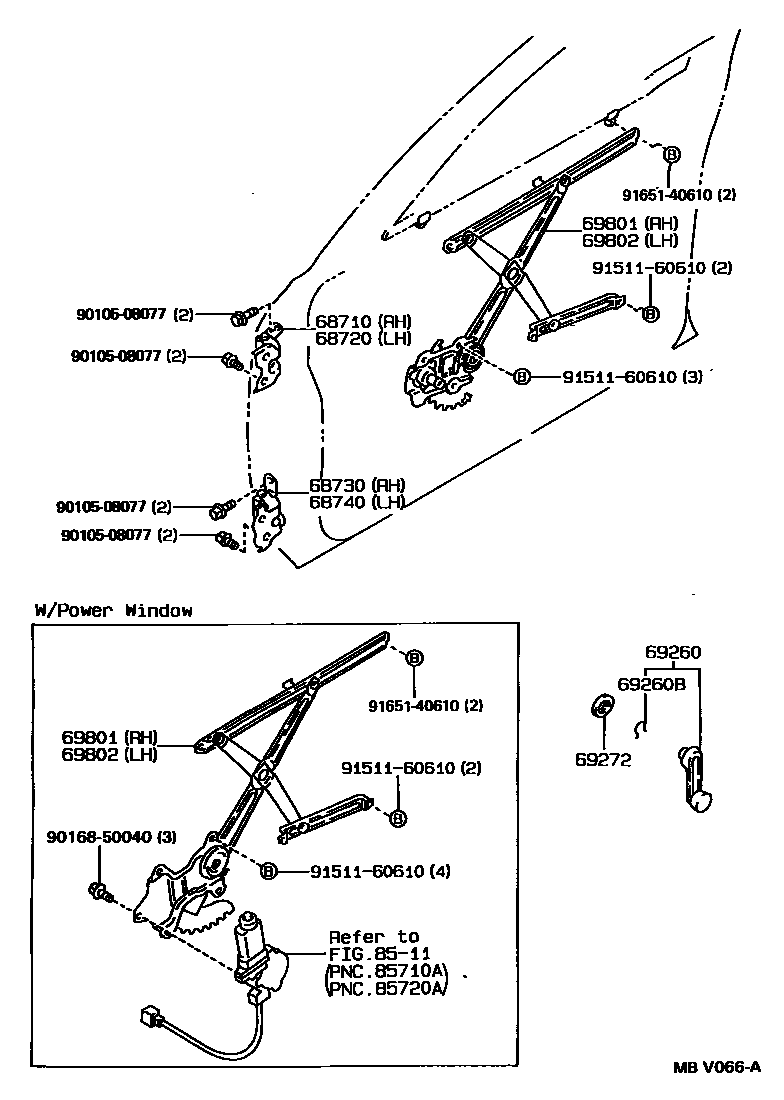

Toyota COROLLA WAGON — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100i199009-199205

main68710-12110i199205-199508

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100i199009-199205

main68720-12110i199205-199508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060i199009-199508

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060i199009-199508

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-43×2i199009-199508

GRAY,TRIM1#

main69260-10040-58×2i199009-199308

DARK BLUE,TRIM8#

main69260-12080-03×2i199009-199208

SHADOW GRAY,TRIM1#

main69260-12080-04×2i199009-199308

BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2i199009-199508

main90520-01274×2i199009-199508

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2i199009-199508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100i199009-199508

W(POWER WINDOW)

main69810-12290i199009-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100i199009-199508

W(POWER WINDOW)

main69820-12290i199009-199508

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9016850040

main90168-50040

9151160610

main91511-60610

9165140610

main91651-40610

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA WAGON

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA WAGON. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
