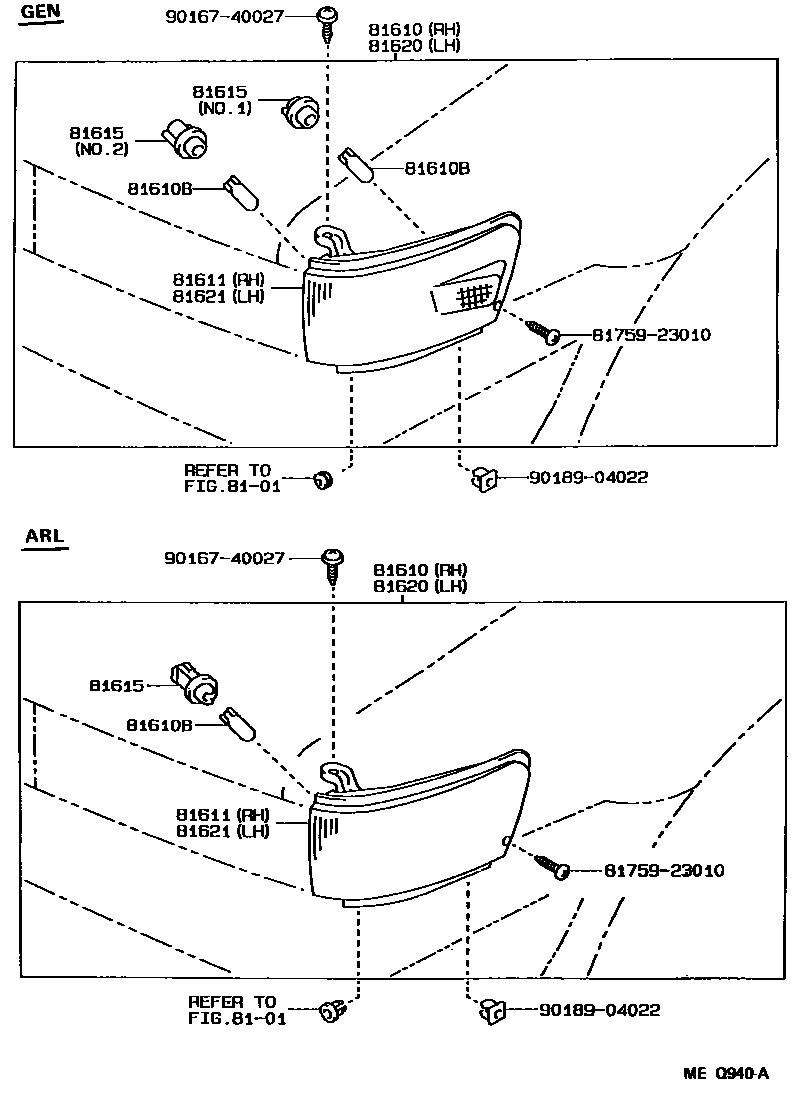

Toyota COROLLA WAGON — FRONT CLEARANCE LAMP
8101HEADLAMP
81610LAMP ASSY, PARKING & CLEARANCE, RH
81610BBULB(FOR PARKING & CLEARANCE LAMP)
12V 5W
81611LENS, PARKING & CLEARANCE LAMP, RH
81615SOCKET AND WIRE, CLEARANCE LAMP
NO.2
NO.1
81620LAMP ASSY, PARKING & CLEARANCE, LH
81621LENS, PARKING & CLEARANCE LAMP, LH
8175923010RETAINER, REAR SIDE MARKER LAMP, RH
main81759-23010
9016740027
main90167-40027
9018904022
main90189-04022
10 parts on this diagram · 1 diagram in section
FRONT CLEARANCE LAMP for Toyota COROLLA WAGON
This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA WAGON. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
