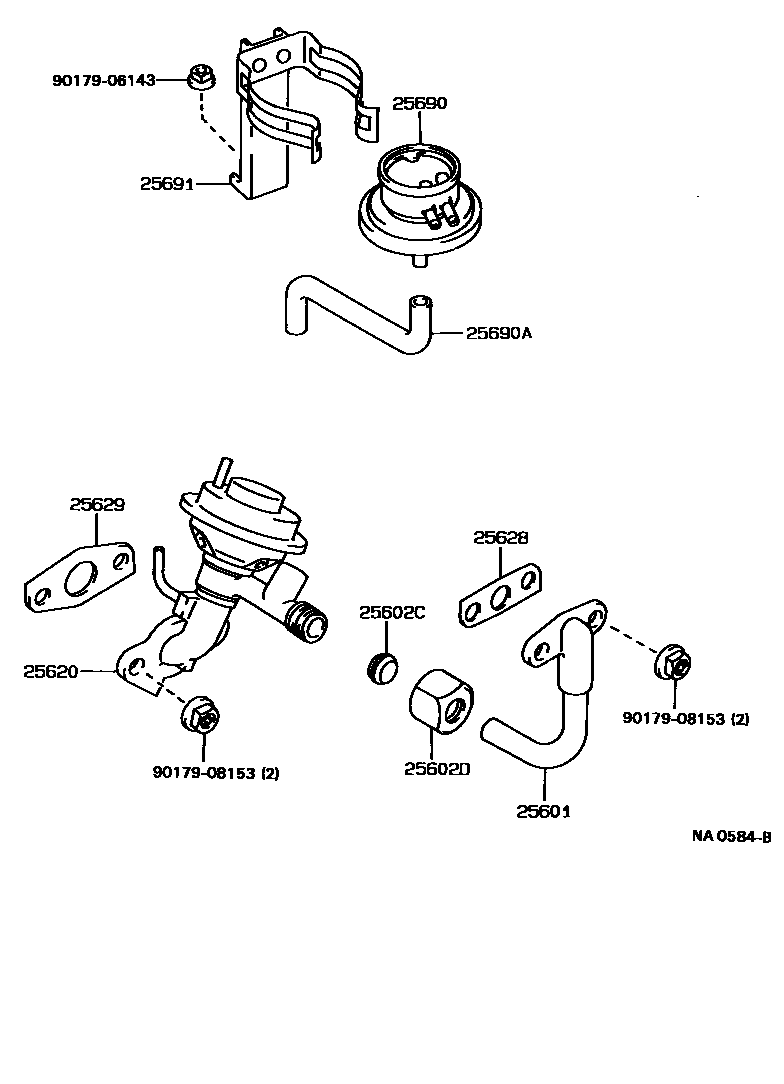

Toyota COROLLA WAGON — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-16040i199009-199508

25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)

main90410-12042i199009-199508

25602DNUT, UNION(FOR EGR PIPE, NO.2)

main90402-20073i199009-199508

25620VALVE ASSY, EGR

main25620-16100i199009-199508

25628GASKET, EGR INLET

main25628-16010i199009-199508

25629GASKET, EGR VALVE ADAPTER

main25627-16031i199009-199508

25690MODULATOR ASSY, EGR VACUUM

main25870-16110i199009-199508

main25870-16190i199009-199508

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16030i199009-199508

25691BRACKET, EGR VACUUM MODULATOR

main25691-16150i199009-199508

9017906143

main90179-06143

9017908153

main90179-08153

11 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA WAGON

This section contains 11 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA WAGON. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL(FOR EGR PIPE, NO.2), NUT, UNION(FOR EGR PIPE, NO.2), VALVE ASSY, EGR, GASKET, EGR INLET.
