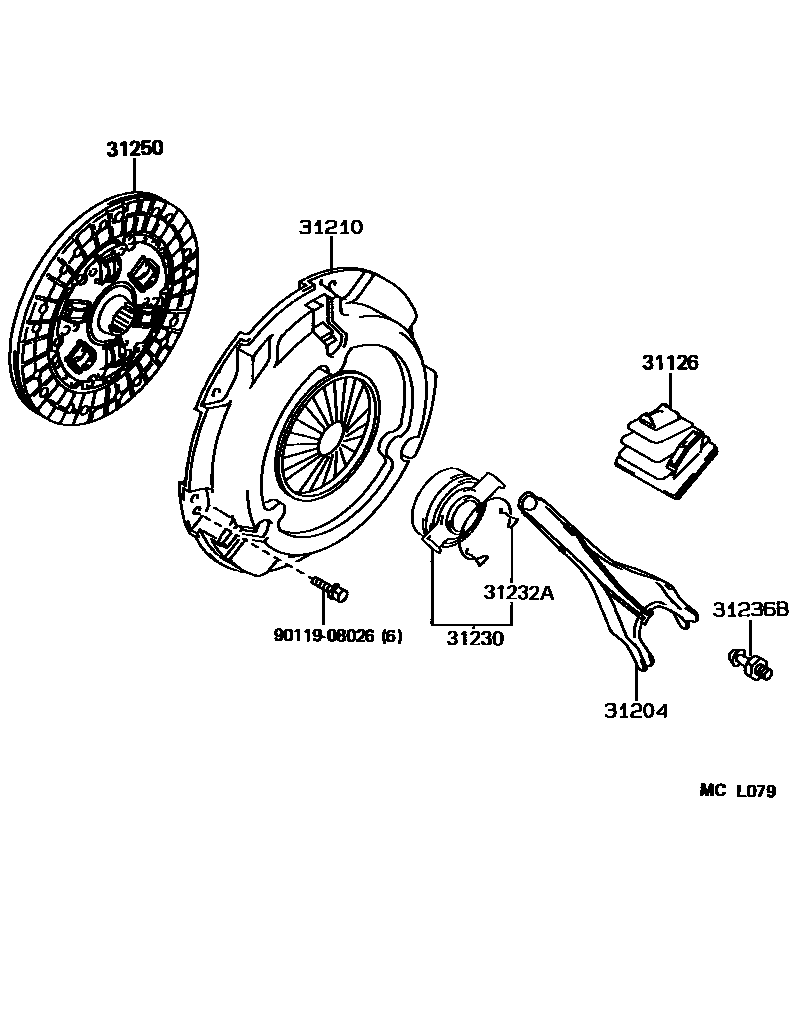

Toyota COROLLA WAGON — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12060iAE95..5F199009-199508

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iAE95..5F199009-199508

31210COVER ASSY, CLUTCH

main31210-12131iAE95..5F199009-199508

sub31210-12231

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iAE95..5F199009-199508

31232ACLIP, RELEASE BEARING HUB

main31232-20020iAE95..5F199009-199508

31236BSUPPORT, RELEASE FORK

main31236-20060iAE95..5F199009-199508

31250DISC ASSY, CLUTCH

main31250-17030iAE95..5F199009-199508

sub31250-17031

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
