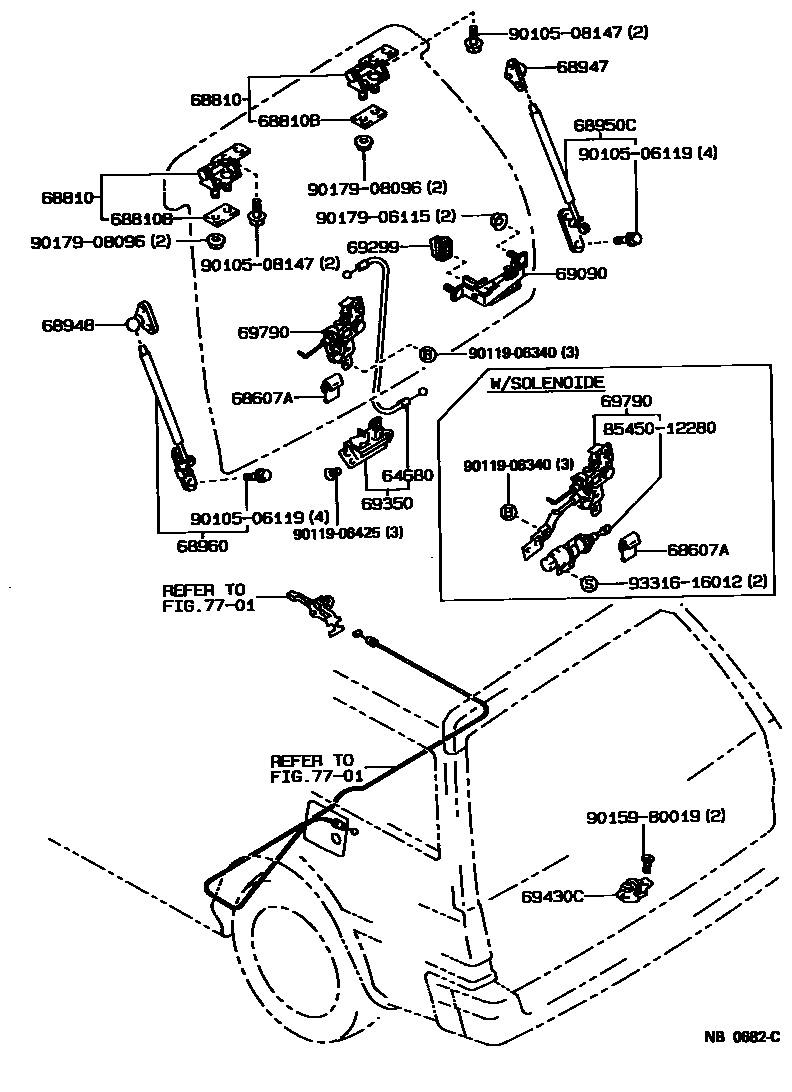

Toyota COROLLA WAGON — BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68810HINGE ASSY, BACK DOOR, UPPER
68810BPAD, BACK DOOR HINGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69090HANDLE ASSY, BACK DOOR, OUTSIDE
GRAY M
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69790CONTROL ASSY, BACK DOOR LOCK
W(ELECTROMAGNETIC LOCK)
7701FUEL TANK & TUBE
8545012280SOLENOID ASSY, DOOR CONTROL, FRONT RH
main85450-12280
9010506119
main90105-06119
9010508147
main90105-08147
9011906340
main90119-06340
9011906425
main90119-06425
9015980019
main90159-80019
9017906115
main90179-06115
9017908096
main90179-08096
9331616012
main93316-16012
23 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA WAGON
This section contains 23 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA WAGON. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE), HINGE ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, BRACKET, BACK DOOR DAMPER STAY, LOWER RH.
