Toyota COROLLA WAGON — ARMREST & VISOR

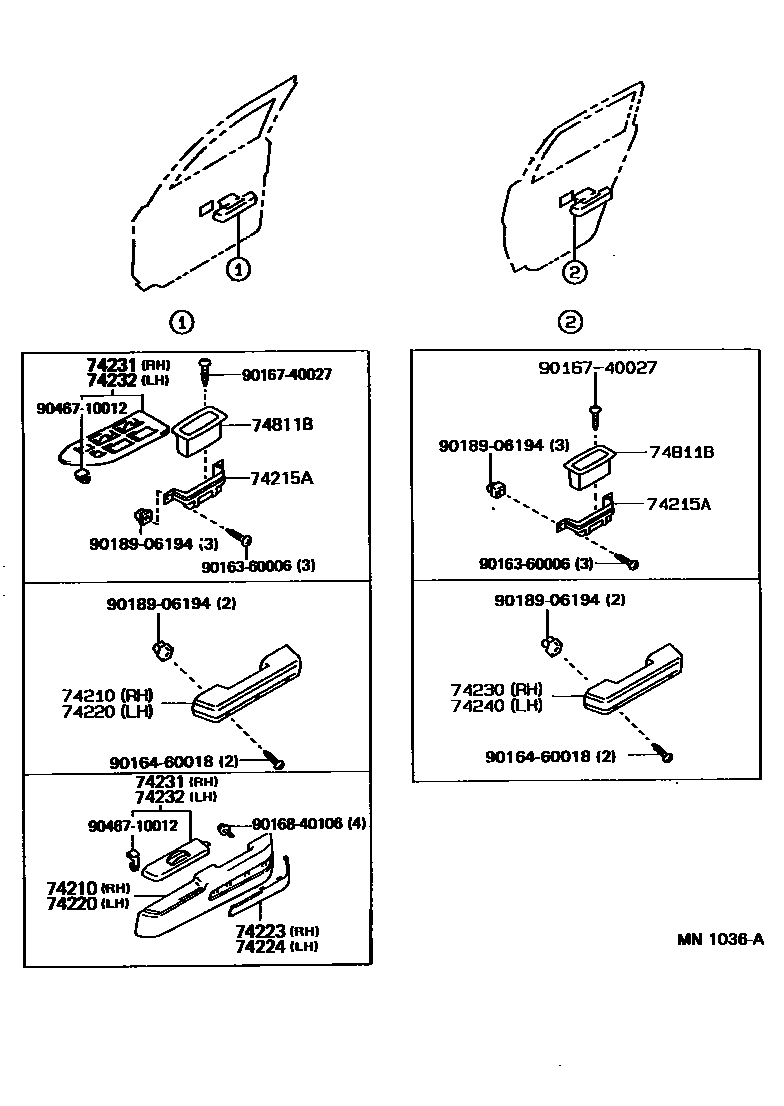

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12110-B1i199009-199508
SHADOW GRAY,TRIM1#
sub74210-12110
main74210-12110-J0i199009-199508
DARK BLUE,TRIM8#
sub74210-12110
main74210-12130-B0i199009-199508
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub74210-12130
main74210-12130-J0i199009-199508
W(POWER WINDOW),DARK BLUE,TRIM8#
sub74210-12130
74215ABASE, DOOR ARMREST RH
main74215-12020i199009-199508
W(POWER WINDOW),RH
main74215-12040i199009-199508
W(POWER WINDOW),LH
74220ARMREST ASSY, FRONT, LH
main74210-12110-B1i199009-199508
SHADOW GRAY,TRIM1#
sub74210-12110
main74210-12110-J0i199009-199508
DARK BLUE,TRIM8#
sub74210-12110
main74220-12070-B0i199009-199508
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub74220-12070
main74220-12070-J0i199009-199508
W(POWER WINDOW),DARK BLUE,TRIM8#
sub74220-12070
74223CAP, DOOR ARMREST, RH
main74223-12080-B0i199009-199508
SHADOW GRAY,TRIM1#
sub74223-12080
main74223-12080-J0i199009-199508
DARK BLUE,TRIM8#
sub74223-12080
74224CAP, DOOR ARMREST, LH
main74224-12030-B0i199009-199508
SHADOW GRAY,TRIM1#
sub74224-12030
main74224-12030-J0i199009-199508
DARK BLUE,TRIM8#
sub74224-12030
74230ARMREST ASSY, REAR, RH
main74210-12110-B1i199009-199508
SHADOW GRAY,TRIM1#
sub74210-12110
main74210-12110-J0i199009-199508
DARK BLUE,TRIM8#
sub74210-12110
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-12040-03i199009-199308
W(POWER WINDOW & ELECTRO MAGNETICK LOCK),SHADOW GRAY,TRIM1#
main74231-12040-03i199308-199508
SHADOW GRAY,TRIM1#
main74231-12040-04i199009-199308
W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8#
main74231-12060-03i199009-199508
SHADOW GRAY,TRIM1#
main74231-12060-04i199009-199308
DARK BLUE,TRIM8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-12050-B0i199009-199508
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub74231-12050
main74231-12050-J0i199009-199508
W(POWER WINDOW),DARK BLUE,TRIM8#
sub74231-12050
main74232-12030-03i199009-199508
SHADOW GRAY,TRIM1#
main74232-12030-04i199009-199308
DARK BLUE,TRIM8#
main74232-12040-B0i199009-199508
W(POWER WINDOW & ELECTRO MAGNETICK LOCK),SHADOW GRAY,TRIM1#
sub74232-12040
main74232-12040-J0i199009-199508
W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8#
sub74232-12040
main74232-12050-03i199009-199508
SHADOW GRAY,TRIM1#
main74232-12050-04i199009-199308
DARK BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
main74210-12110-B1i199009-199508
SHADOW GRAY,TRIM1#
sub74210-12110
main74210-12110-J0i199009-199508
DARK BLUE,TRIM8#
sub74210-12110
74811BHANDLE, DOOR PULL
main74811-12040-03i199009-199508
SHADOW GRAY,TRIM1#
sub74811-12040
main74811-12040-04i199009-199308
DARK BLUE,TRIM8#
sub74811-12040
9016360006
main90163-60006
9016460018
main90164-60018
9016740027
main90167-40027
9016840106
main90168-40106
9018906194
main90189-06194
9046710012
main90467-10012

16 parts on this diagram · 2 diagrams in section
