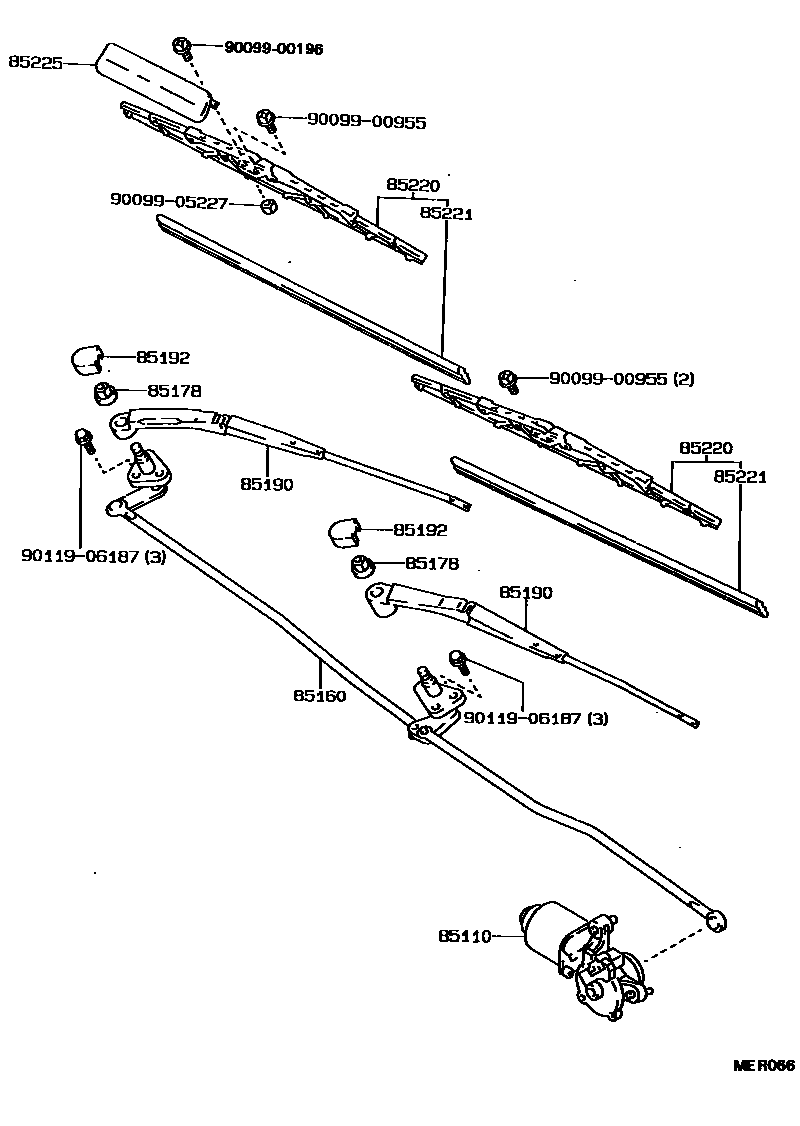

Toyota COROLLA WAGON — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
RH
LH
LH
LH
RH
85192COVER, WINDSHIELD WIPER ARM
PLANT NO.A3#,M12,K21
PLANT NO.B11
85220BLADE ASSY, WINDSHIELD WIPER
RH
RH
LH
LH
85221BLADE, WINDSHIELD WIPER
RH
RH
RH
LH
LH
9009900196
main90099-00196
9009900955
main90099-00955
9009905227
main90099-05227
9011906187
main90119-06187
12 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota COROLLA WAGON
This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA WAGON. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
