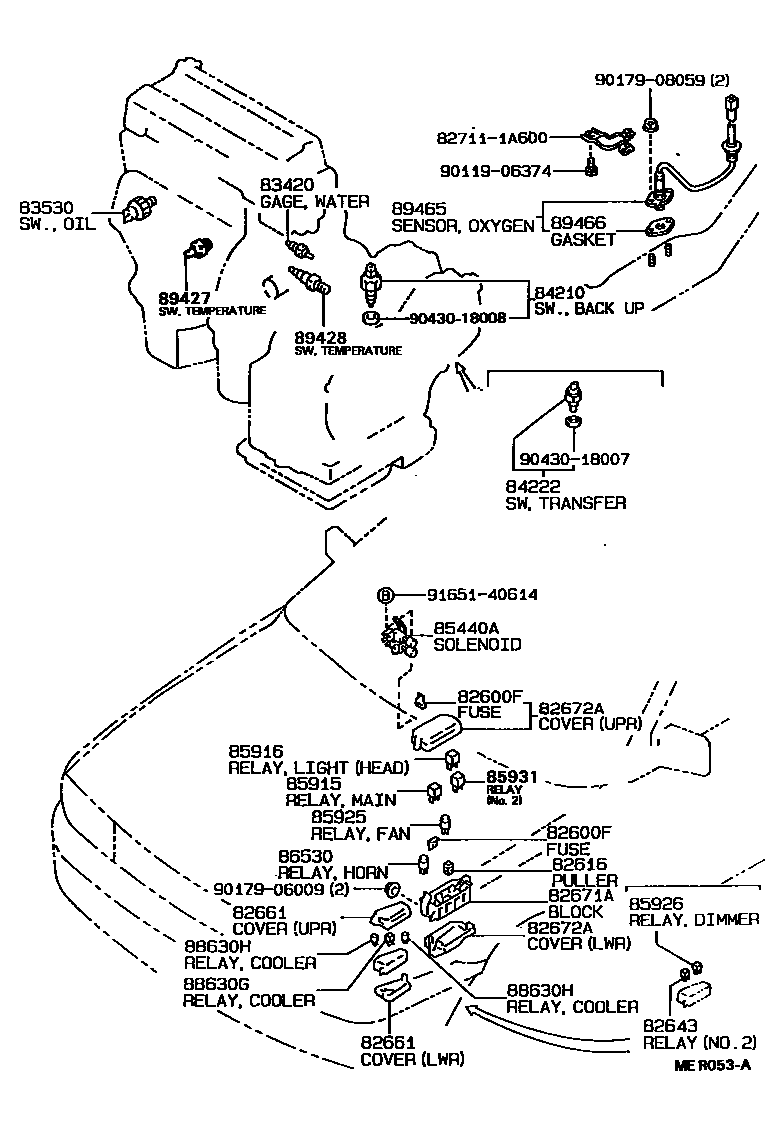

Toyota COROLLA WAGON — SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82643RELAY, DIM-DIP LAMP
NO.1
NO.2
82661COVER, RELAY BLOCK, NO.1
EUROPE POSSESSIONS COUNTRIES,UPR
LWR
UPR
82671ABLOCK, JUNCTION
*FRG OR SWEDEN OR NORWAY OR DENMARK SPEC
ICELAND SPEC
82672ACOVER, JUNCTION BLOCK
UPR
LWR
ICELAND SPEC,UPR
UPR
*FRG OR SWEDEN OR NORWAY OR DENMARK SPEC,UPR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60050
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84222SWITCH, TRANSFER INDICATOR, NO.1
85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
MARUKO,TAIL
NIPPONDENSO,TAIL
HEAD
85925RELAY, RADIATOR FAN
85926RELAY, HEADLAMP DIMMER
85931RELAY, EMISSION CONTROL
NO.1
NO.2
86530RELAY ASSY, HORN
MARUKO
NIPPONDENSO
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
827111A600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A600
9011906374
main90119-06374
9017906009
main90179-06009
9017908059
main90179-08059
9043018007
main90430-18007
9043018008
main90430-18008
9165140614
main91651-40614
30 parts on this diagram · 4 diagrams in section
