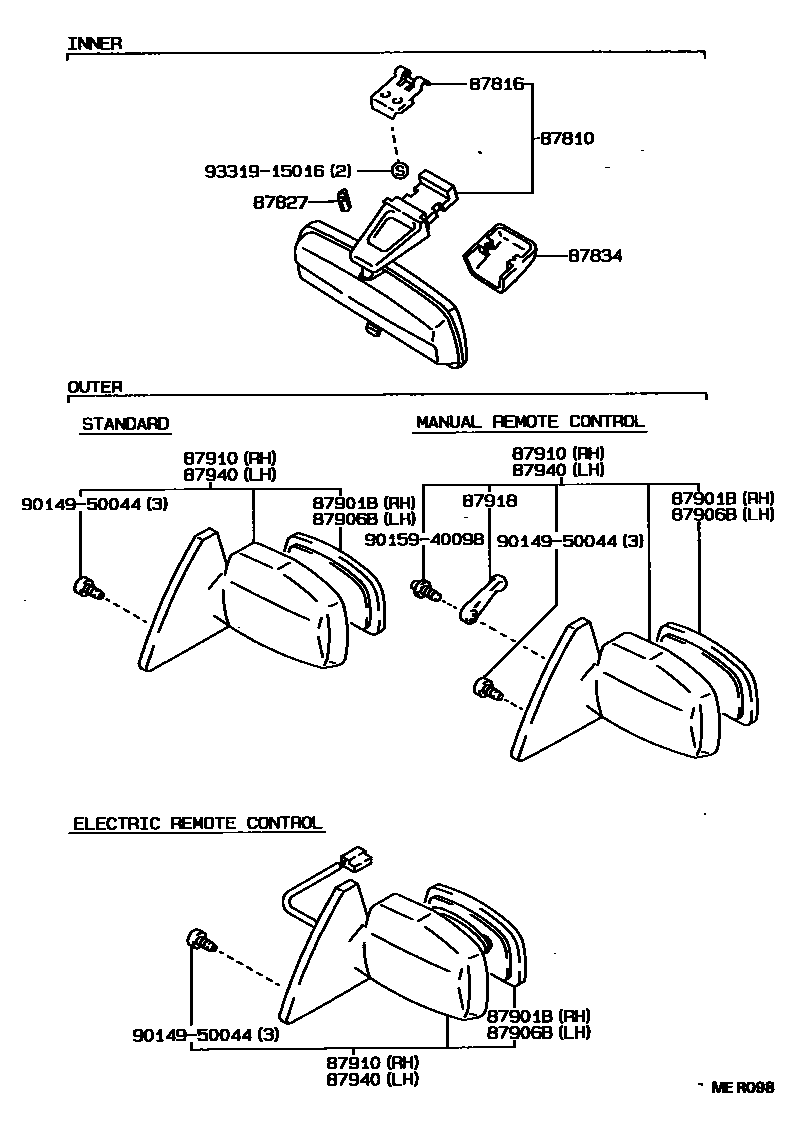

Toyota COROLLA WAGON — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12250-03i199009-199308

SHADOW GRAY,TRIM1#

main87810-12250-04i199009-199308

DARK BLUE,TRIM8#

main87810-12260-03i199308-199508

SHADOW GRAY,TRIM1#

main87810-12260-04i199009-199308

GLARE SHIELD,DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199009-199508

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-87003i199009-199508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B2i199009-199508

SHADOW GRAY,TRIM1#

main87834-12030-J1i199009-199508

DARK BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A280i199009-199205

main87931-1A290i199009-199508

main87931-1A310i199009-199508

ELECTRIC REMOTE CONTROL MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A360i199009-199205

main87961-1A370i199009-199508

main87961-1A390i199009-199508

ELECTRIC REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A260i199009-199205

main87910-1A270i199009-199508

main87910-1A280i199009-199205

MANUAL REMOTE CONTROL MIRROR

main87910-1A290i199009-199508

MANUAL REMOTE CONTROL MIRROR

main87910-1A300i199009-199205

ELECTRIC REMOTE CONTROL MIRROR

main87910-1A310i199009-199508

ELECTRIC REMOTE CONTROL MIRROR

87918KNOB, CONTROL OUTER MIRROR

main87918-12030×2i199009-199508

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A340i199009-199205

main87940-1A350i199009-199508

main87940-1A360i199009-199205

MANUAL REMOTE CONTROL MIRROR

main87940-1A370i199009-199508

MANUAL REMOTE CONTROL MIRROR

main87940-1A380i199009-199205

ELECTRIC REMOTE CONTROL MIRROR

main87940-1A390i199009-199508

ELECTRIC REMOTE CONTROL MIRROR

9014950044

main90149-50044

9015940098

main90159-40098

9331915016

main93319-15016

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA WAGON

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA WAGON. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
