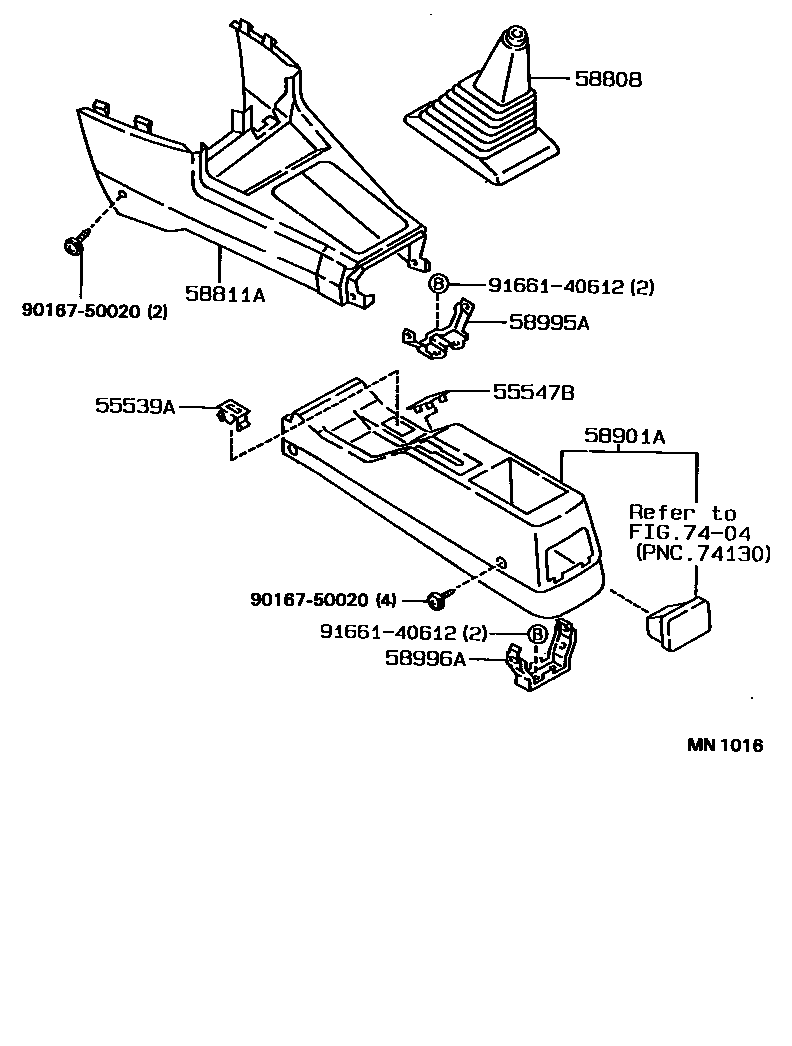

Toyota COROLLA WAGON — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-03iAE95199009-199208

SHADOW GRAY,TRIM1#

main55539-20020-J0iAE95199009-199508

DARK BLUE,TRIM8#

main55539-20020-P0iAE95199208-199508

SHADOW GRAY,TRIM1#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55547-20020-14iAE95199009-199508

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12100-01iAE95199009-199109

BLACK,TRIM1#,8#

main58808-12101-22iAE95199109-199508

BLACK,TRIM1#,8#

58811ABOX, CONSOLE, FRONT

main58811-12430-13iAE95..RHD199009-199205

SHADOW GRAY,TRIM1#

main58811-12430-14iAE95..RHD199009-199205

DARK BLUE,TRIM8#

main58811-12440-13iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main58811-12440-14iAE95..LHD199009-199508

DARK BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12170-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main58901-12170-04iAE95199009-199508

DARK BLUE,TRIM8#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12071iAE95199009-199508

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12060iAE95199009-199508

7404

9016750020

main90167-50020

9166140612

main91661-40612

10 parts on this diagram · 1 diagram in section
