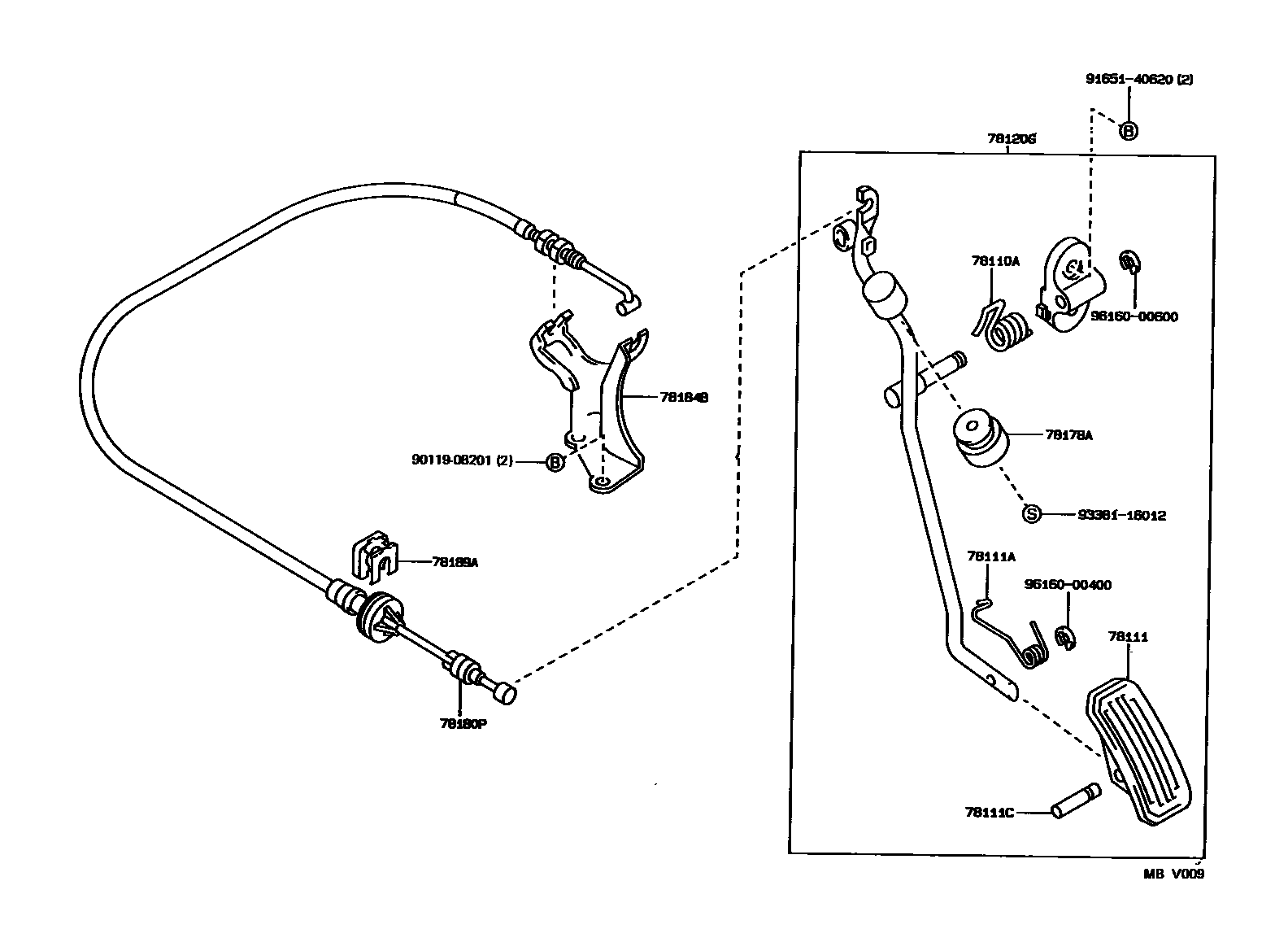

Toyota COROLLA WAGON — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE95..4FC199009-199308

main90508-26036iAE95..5F199009-199308

78111PEDAL, ACCELERATOR

main78111-32010iAE95199009-199308

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE95199009-199308

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE95199009-199308

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12090iAE95..5F199009-199308

main78120-12100iAE95..4FC199009-199308

78178ADAMPER, ACCELRATOR PEDAL ROD DYNAMIC

main78178-12030iAE95199009-199308

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A350iAE95199009-199308

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12250iAE95199009-199308

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12030iAE95199009-199308

9011908201

main90119-08201

9165140620

main91651-40620

9338116012

main93381-16012

9616000400

main96160-00400

9616000600

main96160-00600

14 parts on this diagram · 1 diagram in section
