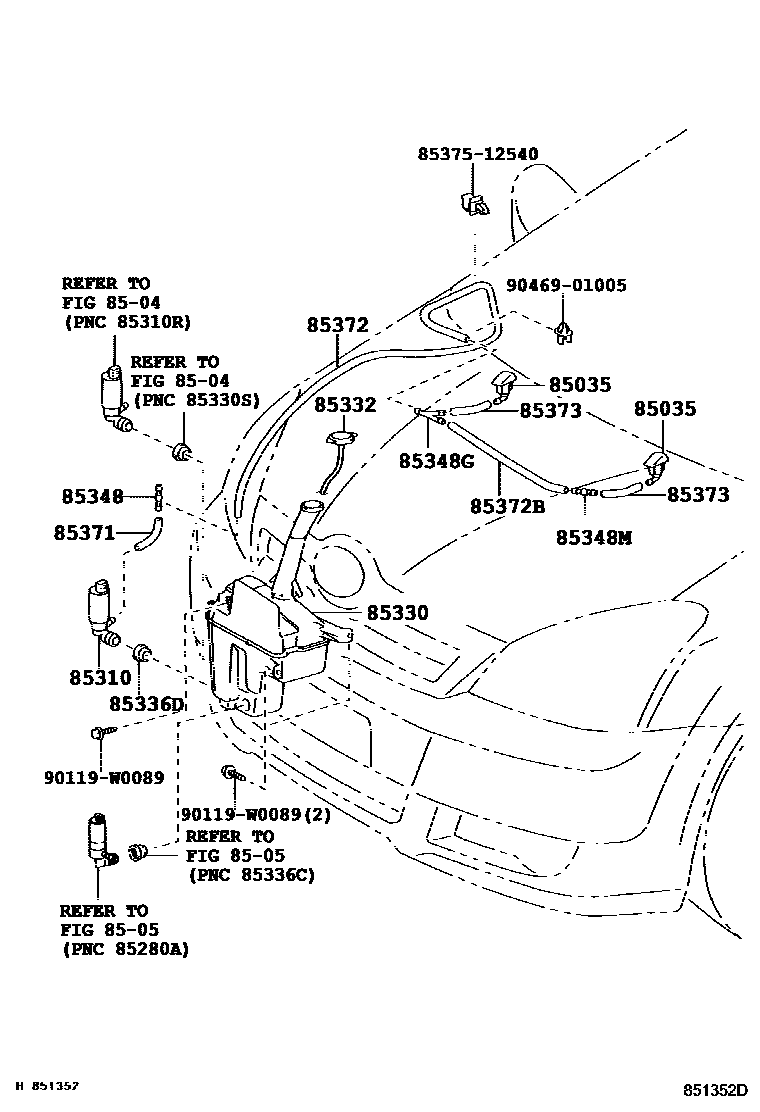

Toyota COROLLA VERSO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-64010×2i200705-200803

main85381-64011×2i200804

main85381-64020×2i200402-200705

main85381-64021×2i200804

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030i200402-200507

main85330-05031i200508-200705

85330JAR ASSY, WINDSHIELD WASHER

main85315-0F010i200402-200705

main85355-0F010i200402-200705

WITH(HEADLAMP CLEANER)

85332CAP, WINDSHIELD WASHER JAR

main85316-0F010i200402-200705

85336DPACKING, WINDSHIELD WASHER JAR

main90069-20005i200402-200705

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i200402-200508

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030i200402-200508

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-05050i200402-200705

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011i200402-200705

*H,L=50,WITH(HEADLAMP CLEANER); L=1490

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010i200402-200508

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009i200402-200508

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200402-200508

L=1450(*H,L=100)

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

90119W0089

main90119-W0089

9046901005

main90469-01005

17 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA VERSO

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA VERSO. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
