Toyota COROLLA VERSO — WINDSHIELD WASHER

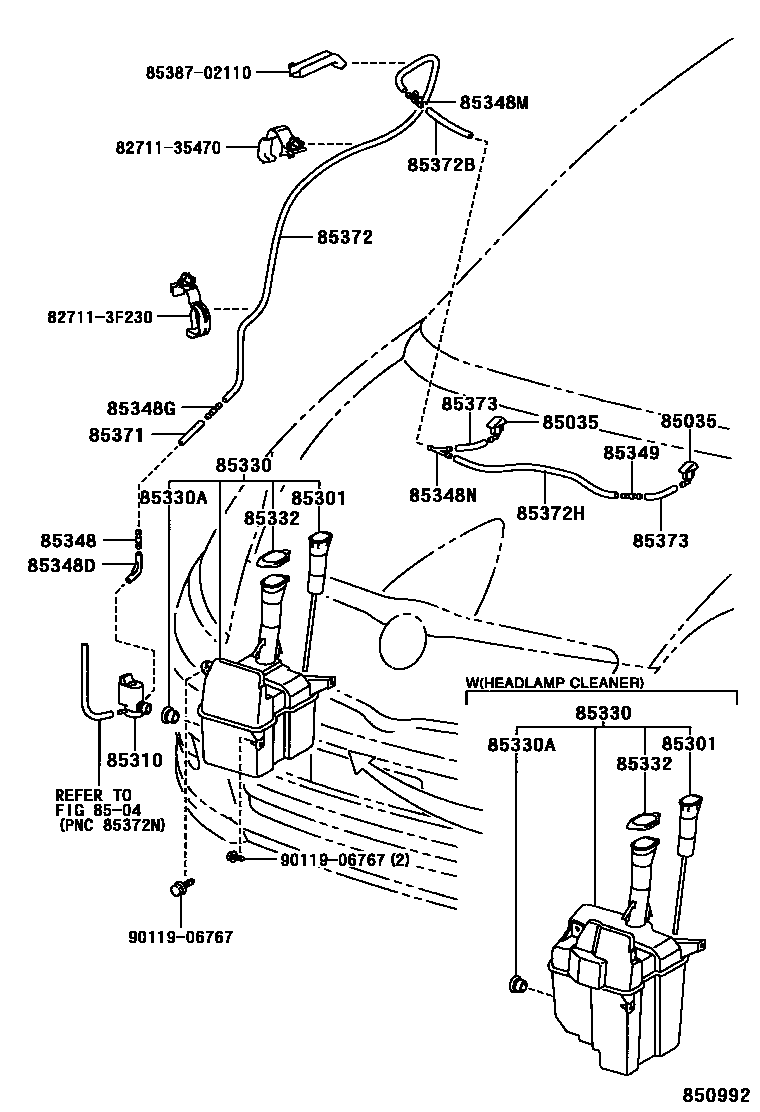

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-13030×2i200109-200401
8504REAR WASHER
→ Go to FIG 85-04
85301INLET SUB-ASSY, WASHER
main85318-12450i200109-200401
main85318-13020i200110-200401
W(HEADLAMP CLEANER)
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-44010i200109-200401
85330JAR ASSY, WINDSHIELD WASHER
main85315-13020i200110-200401
W(HEADLAMP CLEANER)
main85315-13030i200109-200401
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i200109-200401
85332CAP, WINDSHIELD WASHER JAR
main85316-42011i200109-200401
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-10260i200109-200401
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-16192i200109-200401
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-10260i200109-200401
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-20800i200109-200401
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85348-14390i200109-200401
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-10260i200109-200401
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i200109-200401
L=1450(*H,L=50)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i200109-200401
L=1450(*H,L=1210)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i200109-200401
L=1450(*H,L=230)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i200109-200401
L=1450(*H,L=480)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i200109-200401
L=1450(*H,L=130)
8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35470
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F230
8538702110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-02110
9011906767
main90119-06767

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA VERSO

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA VERSO. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
