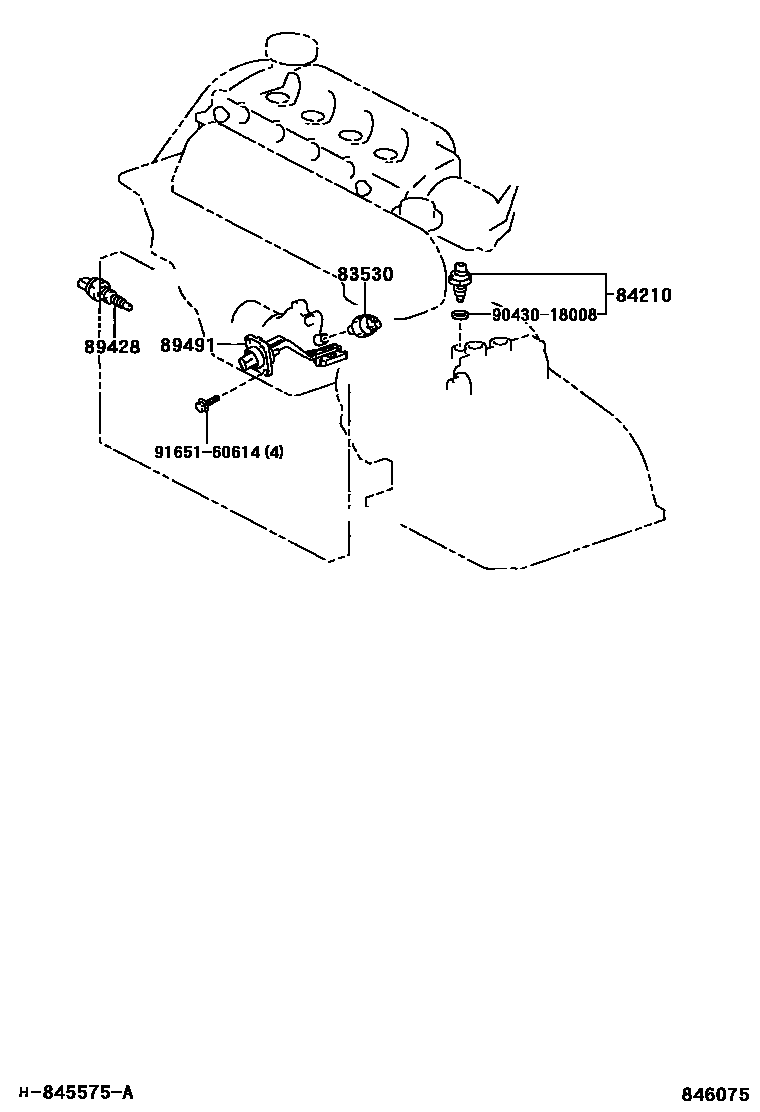

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZNR1#200705-200902

VALEO

main83530-28010iAUR10200705-200902

DENSO

main83530-60010iAUR10,CUR10200402-200705

main83530-60020iZNR1#200402-200705

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAUR10,ZNR1#200705-200902

sub84210-52050

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iCUR10200402-200508

89491SENSOR, ENGINE OIL LEVEL

main89491-20110iAUR10200705

main89491-44020iCUR10200402-200508

9043018008

main90430-18008

9165160614

main91651-60614

6 parts on this diagram · 13 diagrams in section
