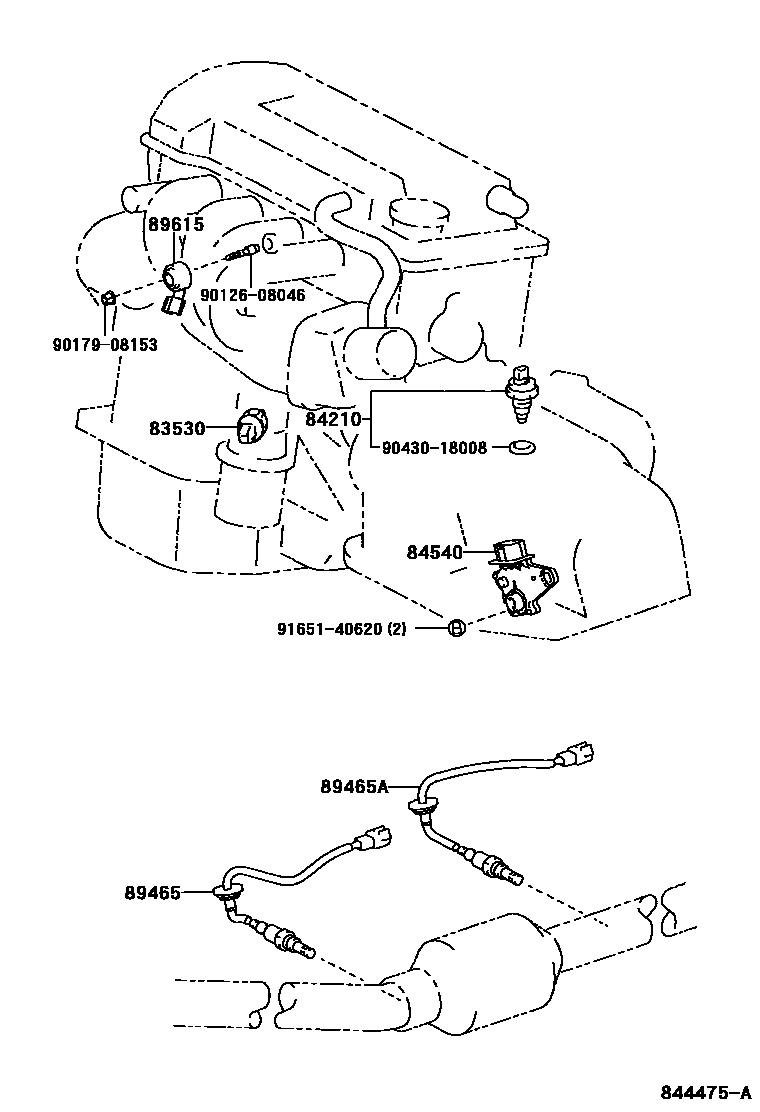

Toyota COROLLA VERSO — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SWITCH0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iCDE120200110-200401

DENSO

main83530-28020iZZE12#200109-200401

DENSO

main83530-60010iCDE120200110-200401

YAZAKI

main83530-60020iZZE12#200109-200401

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCDE120,ZZE12#..MTM200109-200401

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-52050iZZE122..ATM200109-200401

89465SENSOR, OXYGEN

main89465-12620iZZE122200109-200401

main89465-13030iZZE121200110-200401

89465ASENSOR, OXYGEN NO.2

main89465-12700iZZE122200109-200401

main89465-13040iZZE121200110-200401

89615SENSOR, KNOCK CONTROL

main89615-20090iZZE12#200109-200401

9012608046

main90126-08046

9017908153

main90179-08153

9043018008

main90430-18008

9165140620

main91651-40620

10 parts on this diagram · 9 diagrams in section
