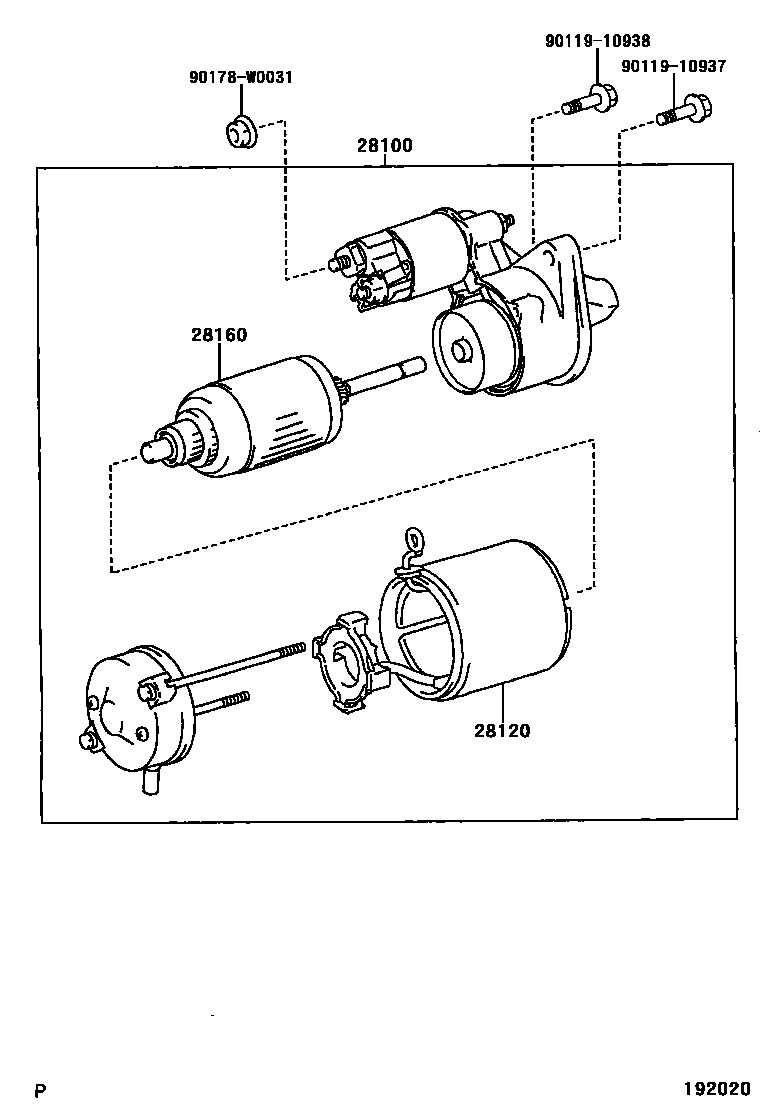

Toyota COROLLA VERSO — STARTER

28100STARTER ASSY

main28100-0D090i200402-200701

12V 1.3KW

main28100-0D180i200701-200705

12V 1.3KW

main28100-0G020i200402-200508

12V 2.0KW

main28100-0G040i200508-200701

12V 2.0KW

main28100-0R010i200701-200705

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0D090i200402-200701

main28120-0D180i200705

main28120-0G020i200402-200701

main28120-38020i200701-200705

28160ARMATURE ASSY, STARTER

main28160-0D090i200402-200701

main28160-0D180i200701-200705

main28160-0G020i200705

9011910937

main90119-10937

9011910938

main90119-10938

90178W0031

main90178-W0031

6 parts on this diagram · 4 diagrams in section

STARTER for Toyota COROLLA VERSO

This section contains 33 genuine Toyota parts for the STARTER system of the Toyota COROLLA VERSO. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE, SEAL, RUBBER.
