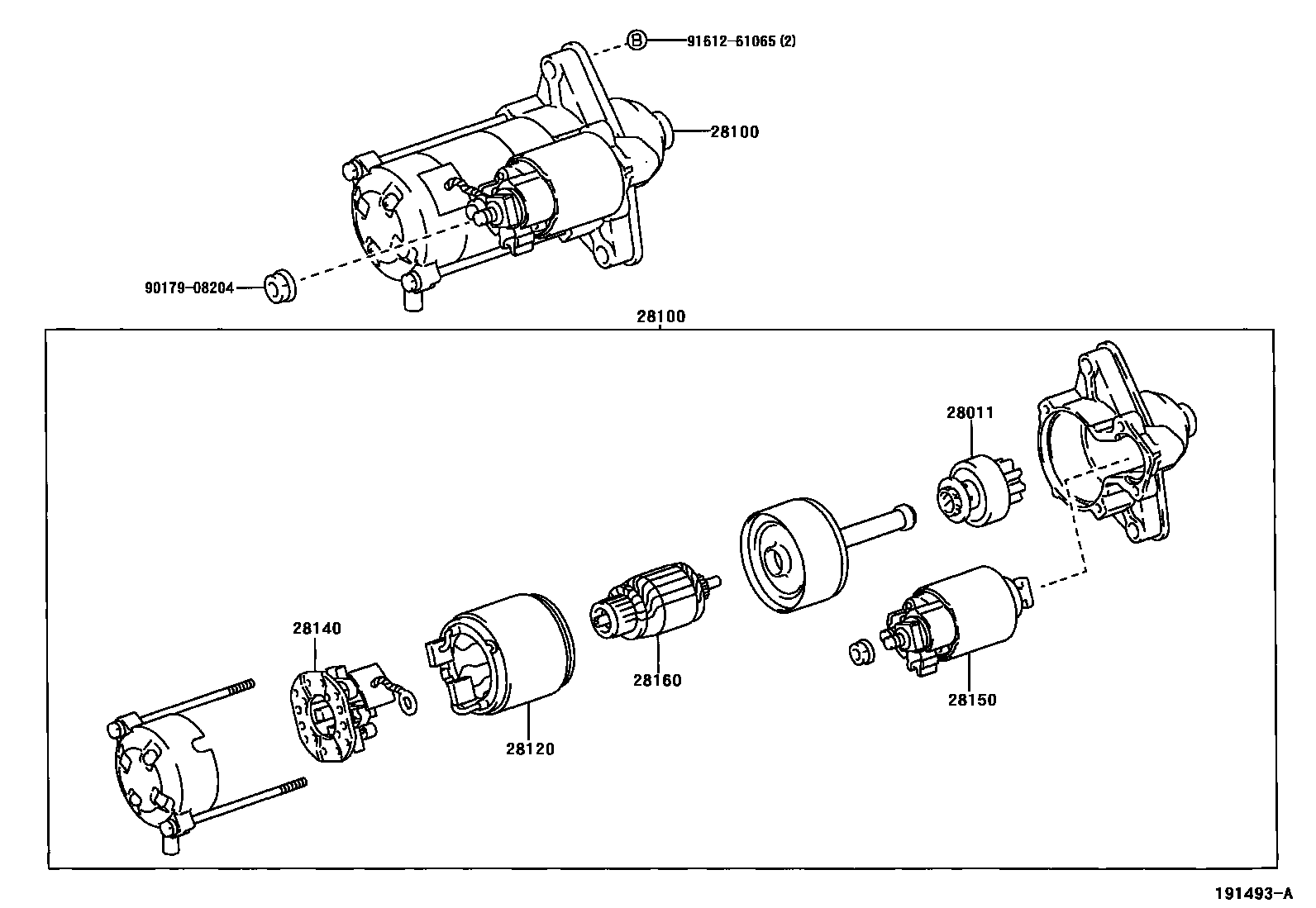

Toyota COROLLA VERSO — STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 2.2KW
12V 1.4KW
28100STARTER ASSY
12V 0.8KW
12V 1.0KW
12V 1.4KW
12V 2.2KW
28120YOKE ASSY, STARTER
12V 1.4KW
12V 2.2KW
12V 0.8KW
12V 1.0KW
28140HOLDER ASSY, STARTER BRUSH
12V 2.2KW
12V 1.4KW
28150SWITCH ASSY, MAGNET STARTER
12V 1.4KW
12V 2.2KW
28160ARMATURE ASSY, STARTER
12V 2.2KW
12V 0.8KW
12V 1.0KW
12V 1.4KW
9017908204
main90179-08204
9161261065
main91612-61065
8 parts on this diagram · 2 diagrams in section
STARTER for Toyota COROLLA VERSO
This section contains 11 genuine Toyota parts for the STARTER system of the Toyota COROLLA VERSO. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
