Toyota COROLLA VERSO — PARTIAL ENGINE ASSEMBLY

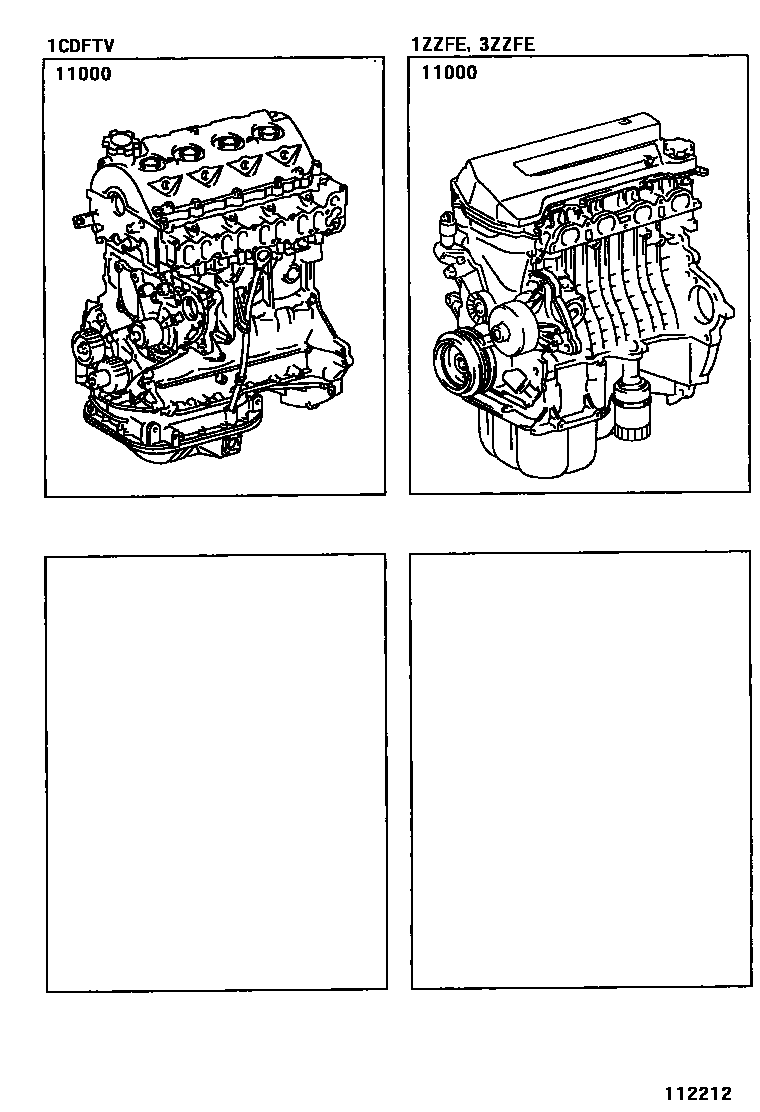

11000ENGINE ASSY, PARTIAL

main19000-22220i3ZZFE..ZZE121200110-200401

sub19000-22221

sub16258-28030

sub16268-22091

sub16268-22101

main19000-22250i1ZZFE..ZZE122200109-200202

main19000-22251i1ZZFE..ZZE122200202-200401

main19000-27200i1CDFTV..CDE120200110-200401

1 parts on this diagram · 1 diagram in section
