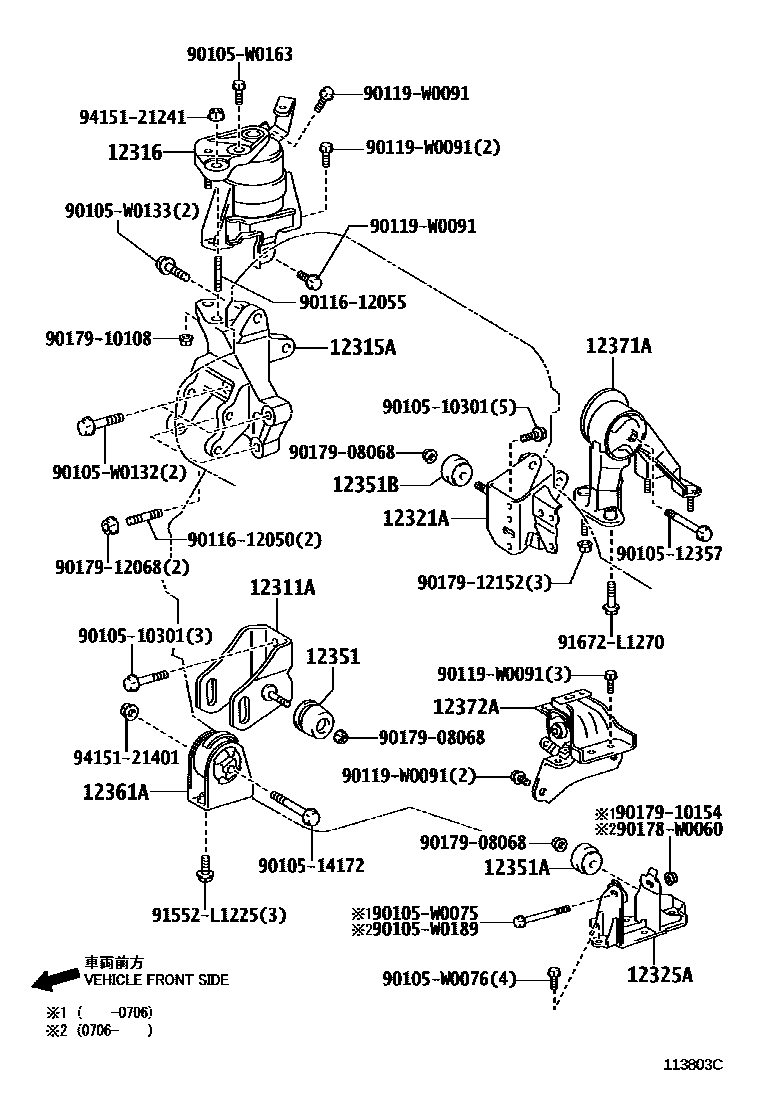

Toyota COROLLA VERSO — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
(L),T/P A:REF.ILLUST
(L),T/P B:REF.ILLUST
(J)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351BDAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010512357
main90105-12357
9010514172
main90105-14172
90105W0075
main90105-W0075
90105W0076
main90105-W0076
90105W0132
main90105-W0132
90105W0133
main90105-W0133
90105W0163
main90105-W0163
90105W0189
main90105-W0189
9011612050
main90116-12050
9011612055
main90116-12055
90119W0091
main90119-W0091
90178W0060
main90178-W0060
9017908068
main90179-08068
9017910108
main90179-10108
9017910154
main90179-10154
9017912068
main90179-12068
9017912152
main90179-12152
91552L1225
main91552-L1225
91672L1270
main91672-L1270
9415121241
main94151-21241
9415121401
main94151-21401
33 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota COROLLA VERSO
This section contains 57 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA VERSO. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
