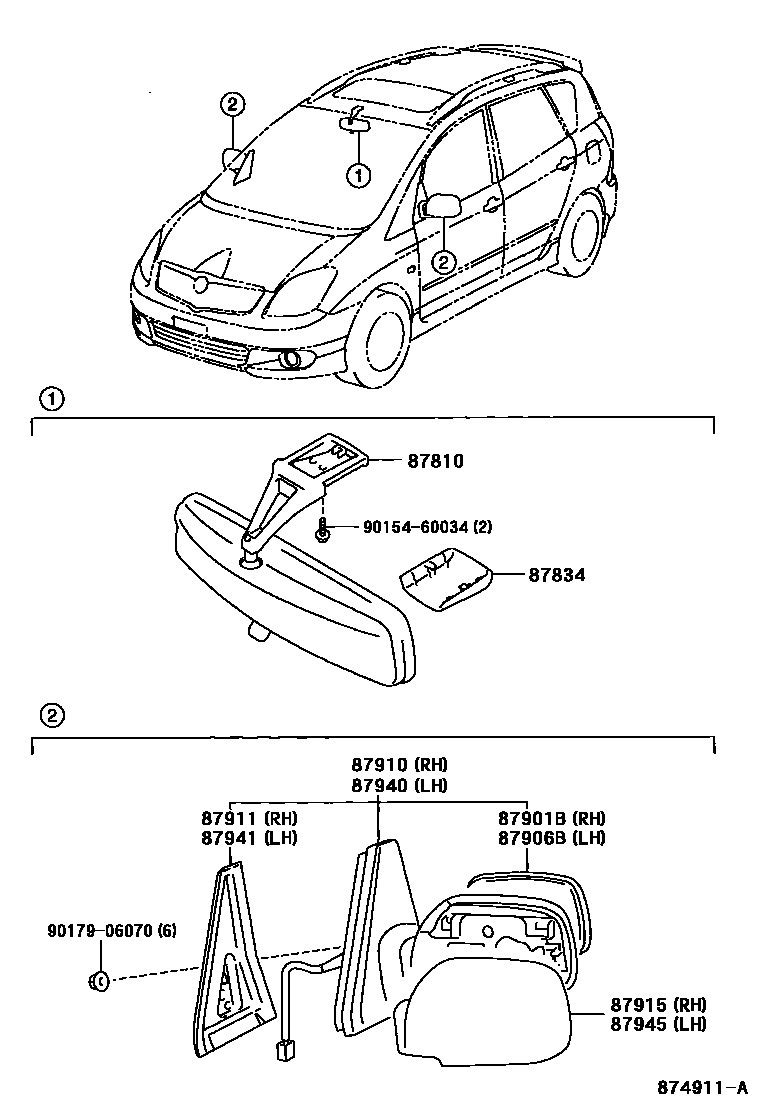

Toyota COROLLA VERSO — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LT.GRAY,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
HEATER MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
HEATER MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
HEATER MIRROR
HEATER MIRROR
87911GASKET, OUTER REAR VIEW MIRROR, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.GR.,1D9
SILVER M.M.,1E7
BLACK ME,205
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
GOLD ME.,585
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
BLUE M.M.,8Q1
87940MIRROR ASSY, OUTER REAR VIEW, LH
HEATER MIRROR
HEATER MIRROR
87941GASKET, OUTER REAR VIEW MIRROR, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.GR.,1D9
SILVER M.M.,1E7
BLACK ME,205
BLACK MC.,209
RED M.M.,3N8
BORDEAUX MC.,3P2
GOLD ME.,585
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
BLUE M.M.,8Q1
9015460034
main90154-60034
9017906070
main90179-06070
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA VERSO
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA VERSO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
