Toyota COROLLA VERSO — FRONT AXLE HUB

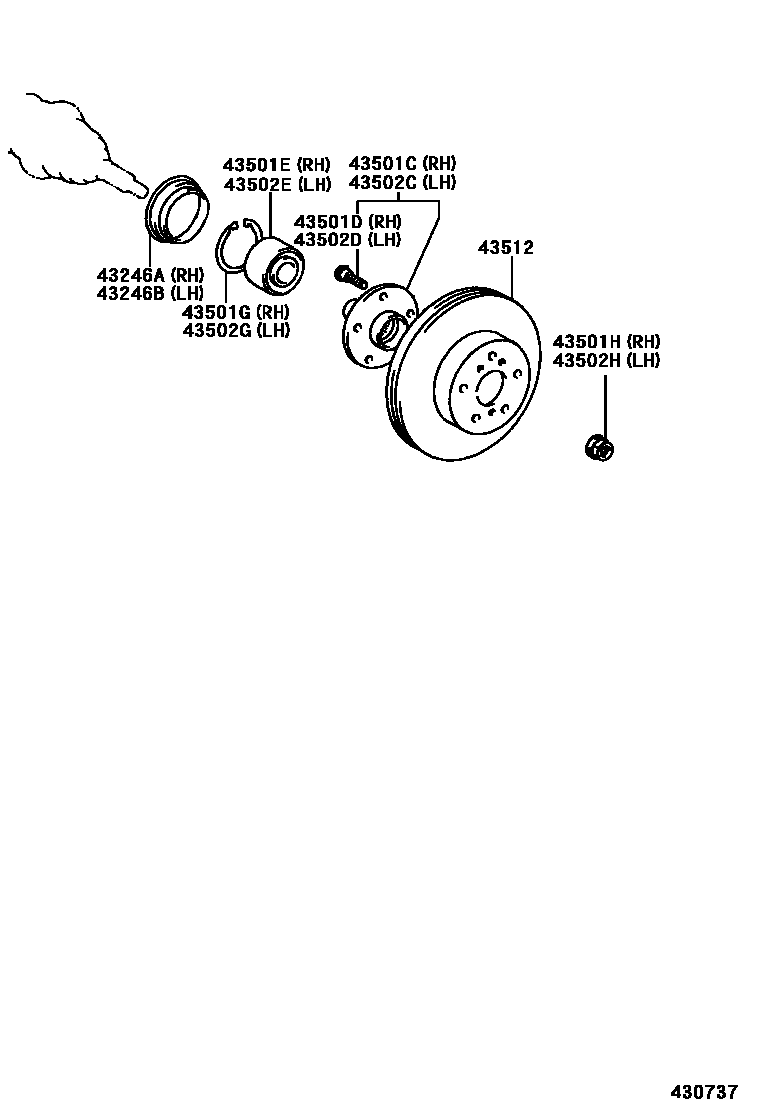

Parts diagram
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-64010i200402-200705
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-64010i200402-200508
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-05040i200705
main43502-0F010i200402-200508
(L)
main43502-28090i200402-200508
(J)
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×5i200402-200508
43501EBEARING (FOR FRONT AXLE HUB RH)
main90363-W0001i200402-200508
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90520-77001i200402-200508
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90177-22001i200402-200705
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-05040i200705
main43502-0F010i200402-200508
(L)
main43502-28090i200402-200508
(J)
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5i200705
43502EBEARING (FOR FRONT AXLE HUB LH)
main90363-W0001i200402-200508
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90520-77001i200402-200508
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90177-22001i200402-200508
43512DISC, FRONT
main43512-0F010×2i200402-200705

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA VERSO

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA VERSO. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
