Toyota COROLLA VERSO — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-13020i200109-200401

53827NPROTECTOR, FRONT FENDER SIDE PANEL, NO.1

main53878-28050×2i200109-200401

53827PPROTECTOR, FRONT FENDER SIDE PANEL, NO.2

main53878-28070×2i200109-200401

55701PANEL SUB-ASSY, COWL

main55700-13020i200109-200401

main55700-13030i200110-200401

55711PANEL, COWL TOP, OUTER

main55701-13020i200109-200401

main55701-13030i200110-200401

main55701-13040i200110-200401

main55701-13050i200110-200401

55713APANEL, COWL TOP SIDE, RH

main55713-13020i200109-200401

55714APANEL, COWL TOP SIDE, LH

main55714-13020i200109-200401

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-13010i200109-200401

main55751-13020i200110-200401

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-13030i200109-200307

main55708-13031i200307-200401

main55708-13040i200110-200401

main55708-13050i200110-200401

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-13010i200109-200307

main55709-13011i200307-200401

main55709-13020i200109-200307

COLD SPEC

main55709-13021i200307-200401

COLD SPEC

main55709-13030i200110-200401

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-13020i200109-200401

55797ASEAL, COWL WATER EXTRACT

main55797-13010i200109-200307

main55797-13020i200307-200401

56111GLASS, WINDSHIELD

main56111-13020i200109-200401

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200109-200401

TYPE B:REFER TO ILLUSTRATION

main56115-30100×2i200109-200401

TYPE A:REFER TO ILLUSTRATION

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×4i200109-200401

56117ADAM, WINDOW GLASS ADHESIVE

main56117-13030i200109-200401

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-13020i200109-200401

9011906635

main90119-06635

9046706133C0

main90467-06133C0

9046708108

main90467-08108

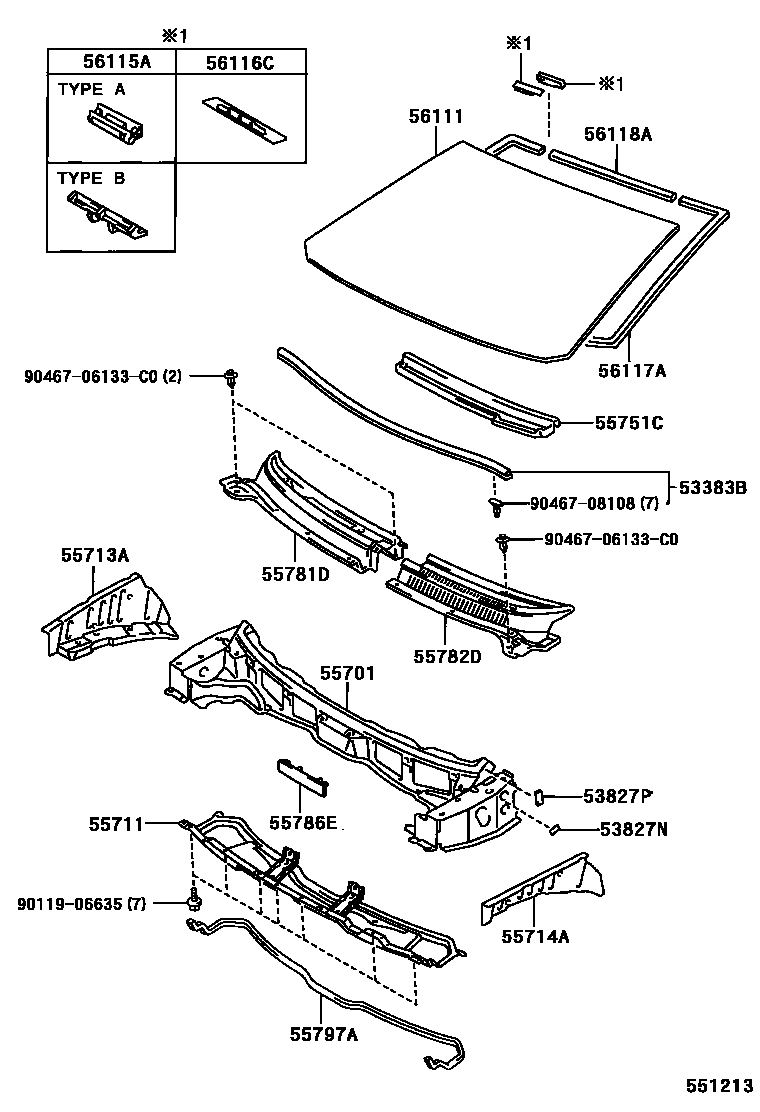

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA VERSO

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA VERSO. Key components include: SEAL, HOOD TO COWL TOP, PROTECTOR, FRONT FENDER SIDE PANEL, NO.1, PROTECTOR, FRONT FENDER SIDE PANEL, NO.2, PANEL SUB-ASSY, COWL, PANEL, COWL TOP, OUTER.
